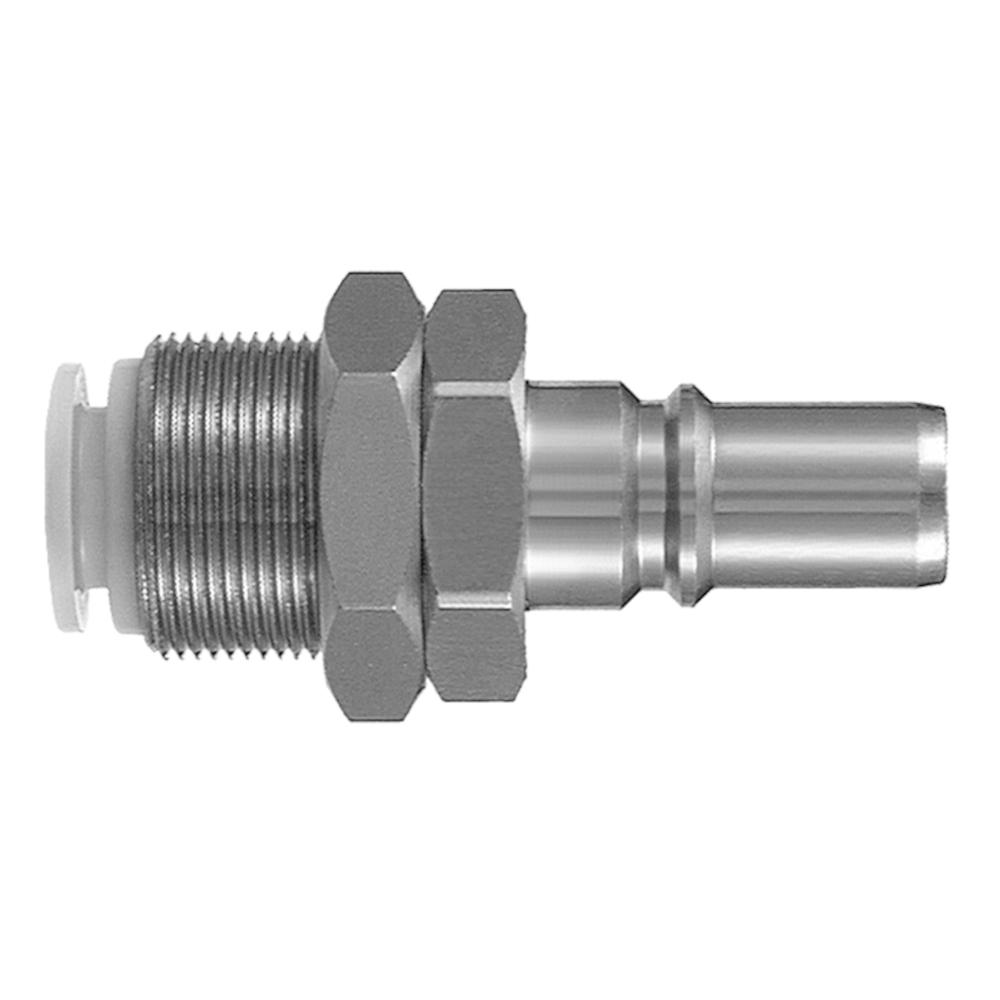

Quick coupling with plug - bulkhead design - hose outer diameter 3.2 to 16 mm - size M5 to 1/2 - pack of 5 - price per piece
| € 17,18 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 85,90)
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
973000003848
Product Description
- The KKP quick coupling is ideal for applications in pneumatics, laboratory technology, test bench technology and in machines and systems with frequent plug changes.
- The coupling is particularly advantageous for mobile or temporary installations where quick connection and disconnection of lines is necessary.
- It is preferred for use in compact systems with low flow requirements.
- The quick coupling can also be used in water applications up to 40 °C (not frozen).
- It is ideal for use with nylon or polyurethane hoses.
- The KKP quick-connect coupling with plug is a compact, lightweight coupling solution for compressed air and water applications, ideal for confined spaces.
- It features a simple plug connection without a locking mechanism, making it particularly user-friendly.
- The absence of springs and steel balls in the flow area ensures uniform flow with minimal pressure loss.
- The chemically nickel-plated brass design ensures high corrosion resistance and durability.
- The plugging process can be carried out with one hand, which reduces the installation effort.
- The bulkhead mounting ensures structured cable routing.
- Material - nickel-plated brass
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 60 °C
- Operating pressure min. - -0.1 MPa
- Max. operating pressure - 1 MPa
- Size - M5 to 1/2
- Suitable hose outer diameter - 3.2 to 16 mm
- Media - compressed air, water
- Max. mounting plate thickness - 7 mm
- Wrench size - 10 to 32 mm
- Male thread - M8 x 0.75 to M28 x 1.5
- Length - 28.3 to 62.6 mm
- Weight - 6.0 to 125 g
- Minimum order quantity - 5 pieces
- Price per piece
Versions: (13)
| Article No. | Size | Hose outer diameter | External thread | Price incl. VAT | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
973000248838 | M5 | 3.2 mm | M8 x 0.75 |
|
|||||||||
|
||||||||||||||
|
973000003412 | M5 | 4 mm | M9 x 0.75 |
|
|||||||||
|
||||||||||||||
|
973000139900 | M5 | 6 mm | M11 x 0.75 |
|
|||||||||
|
||||||||||||||
|
973000003440 | 1/8 | 4 mm | M12 x 1 |
|
|||||||||
|
||||||||||||||
|
973000003454 | 1/8 | 6 mm | M14 x 1 |
|
|||||||||
|
||||||||||||||
|
973000003466 | 1/8 | 8 mm | M16 x 1 |
|
|||||||||
|
||||||||||||||
|
973000003480 | 1/8 | 10 mm | M20 x 1 |
|
|||||||||
|
||||||||||||||
|
973000003616 | 1/4 | 6 mm | M14 x 1 |
|
|||||||||
|
||||||||||||||
|
973000003628 | 1/4 | 8 mm | M16 x 1 |
|
|||||||||
|
||||||||||||||
|
973000003641 | 1/4 | 10 mm | M20 x 1 |
|
|||||||||
|
||||||||||||||
|
973000003655 | 1/4 | 12 mm | M22 x 1 |
|
|||||||||
|
||||||||||||||
|
973000003835 | 1/2 | 12 mm | M22 x 1 |
|
|||||||||
|
||||||||||||||
|
|
973000003848 | 1/2 | 16 mm | M28 x 1.5 |
|
|||||||||
|
||||||||||||||
