Quick coupling with plug - with cap nut - Hose Ø 5x8 to 11x16 mm - Size 1/8 to 1/2 - PU 5 pieces - Price per piece
| From € 4,72 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The KKP-N quick-release coupling is primarily used in pneumatic systems that require a detachable but mechanically secured plug connection with increased holding force, e.g. in test benches, mobile devices or machine modules.
- It is particularly suitable for applications with increased hose stress due to movement or pulling.
- The quick coupling can also be used for water applications up to +40 °C (not frozen).
- It is ideal for frequent connection changes with high sealing requirements.

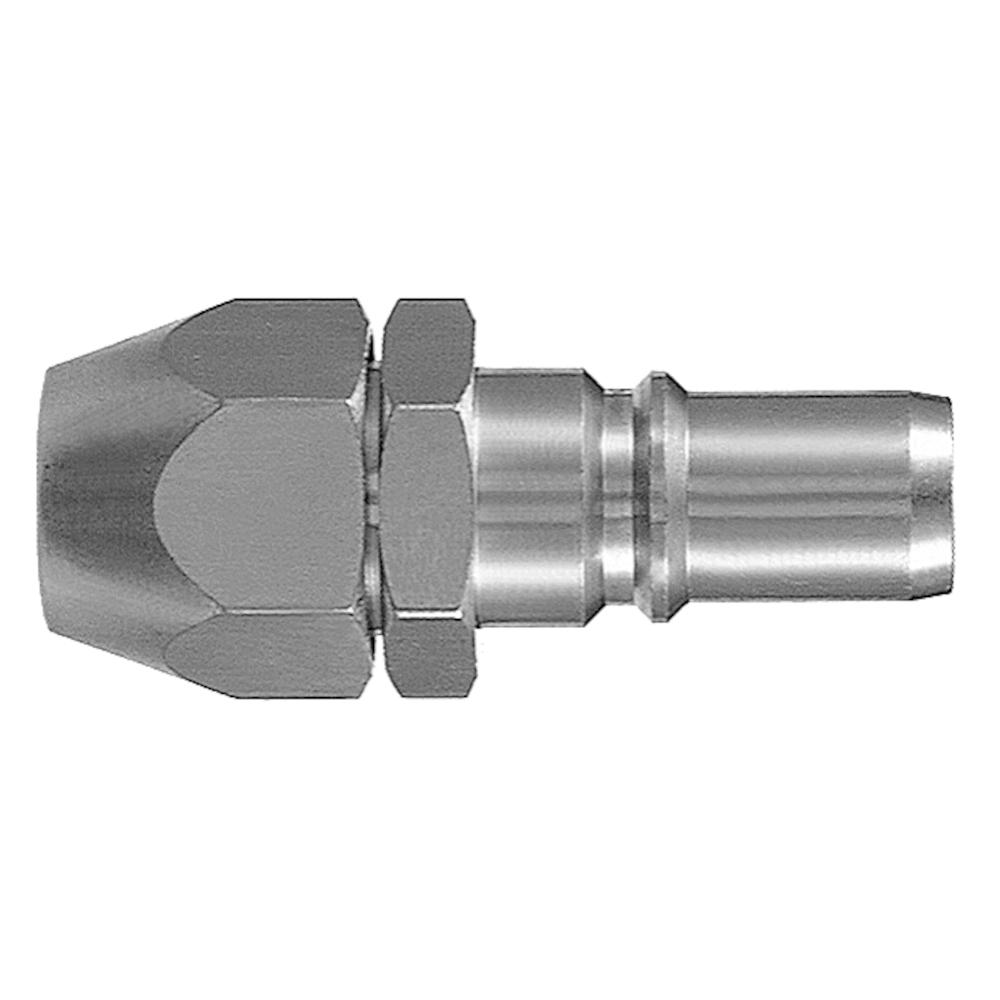

- The KKP-N quick coupling is a straight plug with a union nut for secure, mechanical fastening to a hose nozzle.
- It ensures high holding force and a leak-free connection.
- Installation is carried out by simply pushing the hose onto the grommet and then tightening the union nut without the need for additional tools or sealants.
- The housing is made of chemically nickel-plated brass, the seal is made of NBR.
- This robust design enables reliable use with compressed air and water.
- Material - nickel-plated brass
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 60 °C
- Operating pressure min. - -0.1 MPa
- Max. operating pressure - 1 MPa
- Suitable hose inner diameter - 5 to 11 mm
- Suitable hose outer diameter - 8 to 16 mm
- Media - compressed air, water
- Wrench size - 14 to 24 mm
- Length - 36.1 to 57.2 mm
- Weight - 21.4 to 96.5 g
- Minimum order quantity - 5 pieces
- Price per piece
Versions: (11)
| Article No. | Size | Hose Ø internal x external | Price incl. VAT | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
973000003492 | 1/8 | 5 x 8 mm |
|
|||||||||
|
|||||||||||||
|
973000003496 | 1/8 | 6 x 9 mm |
|
|||||||||
|
|||||||||||||
|
973000003500 | 1/8 | 6.5 x 10 mm |
|
|||||||||
|
|||||||||||||
|
973000003667 | 1/4 | 5 x 8 mm |
|
|||||||||
|
|||||||||||||
|
973000003671 | 1/4 | 6 x 9 mm |
|
|||||||||
|
|||||||||||||
|
973000003675 | 1/4 | 6.5 x 10 mm |
|
|||||||||
|
|||||||||||||
|
973000003680 | 1/4 | 8 x 12 mm |
|
|||||||||
|
|||||||||||||
|
973000003685 | 1/4 | 8.5 x 12.5 mm |
|
|||||||||
|
|||||||||||||
|
973000003861 | 1/2 | 8 x 12 mm |
|
|||||||||
|
|||||||||||||
|
973000003865 | 1/2 | 8.5 x 12.5 mm |
|
|||||||||
|
|||||||||||||
|
973000003831 | 1/2 | 11 x 16 mm |
|
|||||||||
|
|||||||||||||
