Quick coupling with socket - Hose outer diameter 3.2 to 16 mm - Size M5 to 1/2 - Pack of 5 - Price per piece
| From € 12,02 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The KKS-H quick coupling is used in systems where a safe, multiple-release connection between the coupling socket and plug side is required, e.g. in production lines, test benches, laboratory equipment or mobile applications.
- It is particularly advantageous for medium to large hose diameters when frequent coupling and uncoupling is necessary.
- The quick coupling is also suitable for water applications up to +40 °C (not frozen).
- It is ideal for hose lines with polyurethane or nylon.

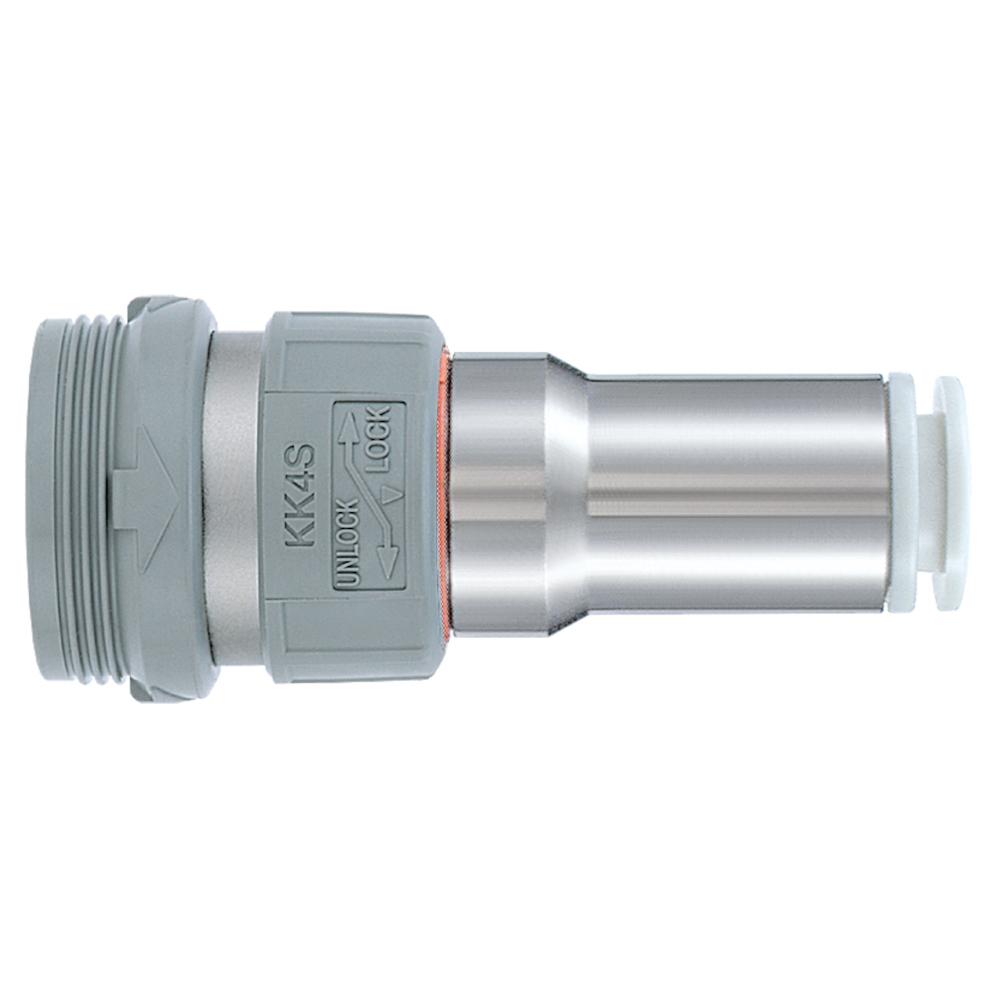

- The quick coupling with socket is a straight coupling socket with integrated locking mechanism for secure connections in pneumatic systems.
- It is equipped with a hose nozzle.
- The robust locking mechanism ensures a reliable, vibration-proof connection, ideal for dynamic applications with frequent line changes.
- The chemically nickel-plated brass housing and NBR seal ensure high media resistance and a long service life.
- The coupling is suitable for compressed air and water and impresses with its easy handling and long-lasting performance.
- The connection is permanently tight and mechanically stable.
- Material - Nickel-plated brass
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 60 °C
- Operating pressure min. - -0.1 MPa
- Max. operating pressure - 1 MPa
- Size - M5 to 1/2
- Suitable hose outer diameter - 3.2 to 16 mm
- Media - Compressed air, water
- Length - 35.1 to 77.6 mm
- Diameter - 10 to 31.6 mm
- Weight - 6.4 to 99.9 g
- Minimum order quantity - 5 pieces
- Price per piece
Versions: (13)
| Article No. | Size | Hose outer diameter | Price incl. VAT | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
973000092861 | M5 | 3.2 mm |
|
|||||||||
|
|||||||||||||
|
973000003420 | M5 | 4 mm |
|
|||||||||
|
|||||||||||||
|
973000107237 | M5 | 6 mm |
|
|||||||||
|
|||||||||||||
|
973000003522 | 1/8 | 4 mm |
|
|||||||||
|
|||||||||||||
|
973000003537 | 1/8 | 6 mm |
|
|||||||||
|
|||||||||||||
|
973000003549 | 1/8 | 8 mm |
|
|||||||||
|
|||||||||||||
|
973000003565 | 1/8 | 10 mm |
|
|||||||||
|
|||||||||||||
|
973000003727 | 1/4 | 6 mm |
|
|||||||||
|
|||||||||||||
|
973000003742 | 1/4 | 8 mm |
|
|||||||||
|
|||||||||||||
|
973000003758 | 1/4 | 10 mm |
|
|||||||||
|
|||||||||||||
|
973000003776 | 1/4 | 12 mm |
|
|||||||||
|
|||||||||||||
|
973000003899 | 1/2 | 12 mm |
|
|||||||||
|
|||||||||||||
|
973000003911 | 1/2 | 16 mm |
|
|||||||||
|
|||||||||||||
