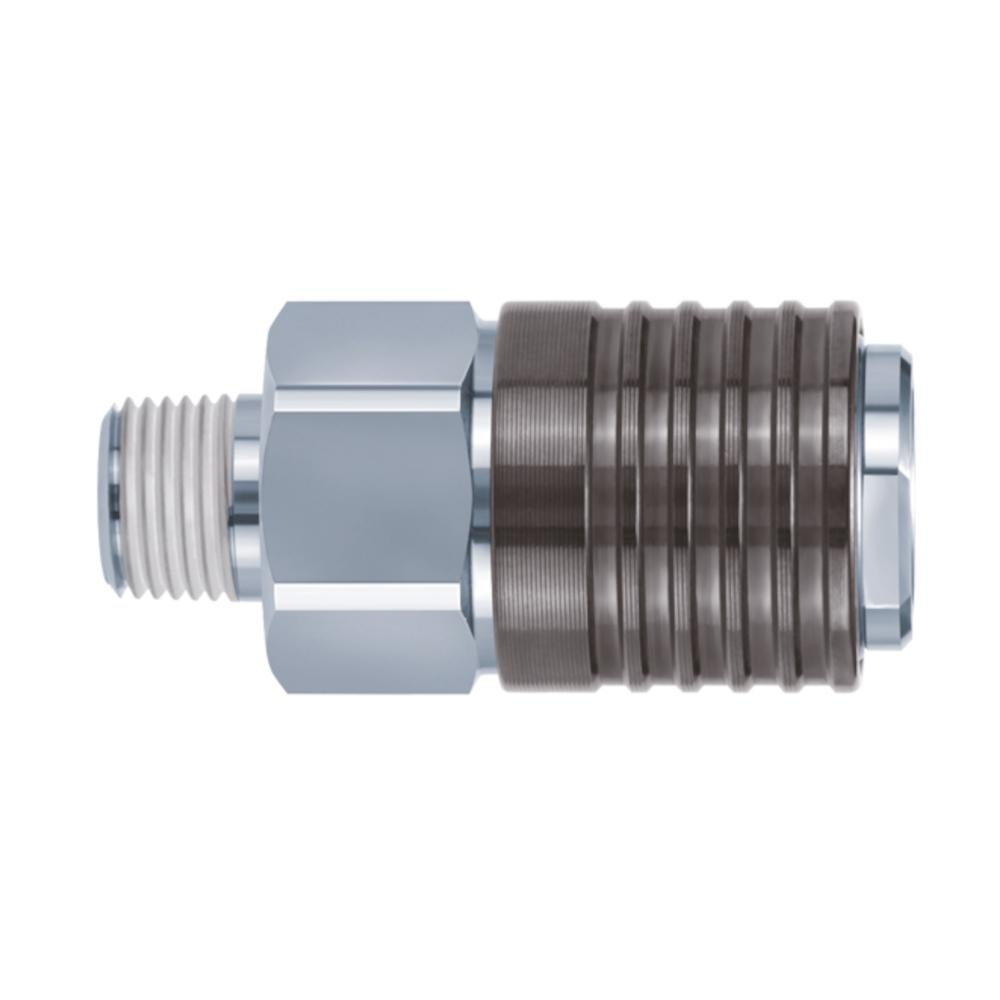

Quick coupling with socket KKA – without non-return valve – AG R 1/8" to 3/4" – size 1/8 to 1/2 – price per piece
| From € 44,38 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The KKAS-M quick coupling is used in pneumatic systems where unrestricted flow in both directions is required, for example in compressed air distribution systems, vacuum applications or open pipe systems.
- It is particularly suitable for applications in which the pressure must escape or the medium must circulate freely after the connection has been disconnected.
- The coupling is also suitable for use in water applications up to +40 °C, provided that no backflow prevention is necessary.
- Its straight design with external thread makes it easy to integrate into existing systems and enables a space-saving, secure connection.
- The KKAS-M quick coupling is a straight, lockable coupling socket with external thread for free-flow applications.
- The coupling does not have an integrated non-return valve, which allows the medium to flow in both directions without any flow resistance.
- The chemically nickel-plated brass housing and NBR seal ensure a durable, corrosion-resistant and leak-free connection.
- The coupling is designed for frequent coupling and uncoupling and can be operated without tools.
- Material - Stainless steel
- Ambient temperature - -5 to 150 °C
- Media temperature: -5 to 150 °C
- Operating pressure min. - -0.1 MPa
- Maximum operating pressure - 1 MPa
- Size - 1/8 to 1/2
- External thread - R 1/8" to 3/4"
- Media - Compressed air, water
- Spanner size - 17 to 30 mm
- Diameter - 18.5 to 30.7 mm
- Length - 38.1 to 56.4 mm
- Weight - 36.1 to 174 g
- Price per item
Versions: (9)
Narrow down your selection
Size
Thread
Item No.: 973500060034
Type
| Size | 1/8 |
| Thread |
Item No.: 973500060042
Type
| Size | 1/8 |
| Thread | R 1/4" |
Item No.: 973500060049
Type
| Size | 1/8 |
| Thread | R 3/8" |
Item No.: 973500060081
Type
| Size | 1/4 |
| Thread | R 1/4" |
Item No.: 973500060088
Type
| Size | 1/4 |
| Thread | R 3/8" |
Item No.: 973500060096
Type
| Size | 1/4 |
| Thread | R 1/2" |
Item No.: 973500060124
Type
| Size | 1/2 |
| Thread | R 3/8" |
Item No.: 973500060131
Type
| Size | 1/2 |
| Thread | R 1/2" |
Item No.: 973500060138
Type
| Size | 1/2 |
| Thread | R 3/4" |
