Quick coupling with socket - with external thread - external thread M5 to R 3/4" - size M5 to 1/2 - pack of 5 - price per piece
| From € 11,00 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The KKS-MS quick coupling is used in pneumatic systems where a fixed but quickly detachable connection with external thread is required, e.g. in control blocks, distribution modules, machines and test equipment.
- It is ideal for recurring connections with a compact design and limited installation space.
- The KKS-MS is also suitable for water applications up to +40 °C (not frozen).
- The socket is particularly useful for stationary applications with high connection requirements.

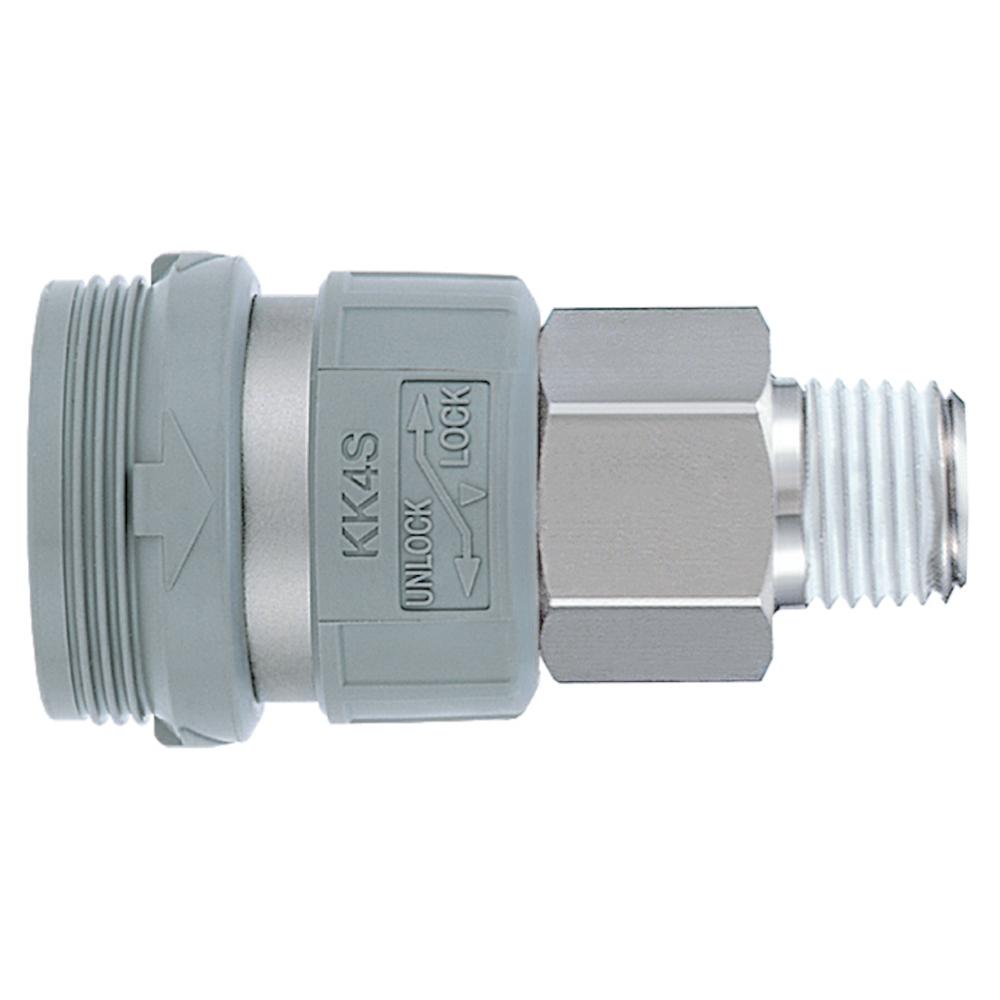

- The KKS-MS quick coupling is a straight coupling sleeve with an integrated locking mechanism for a secure, vibration-proof connection.
- It is equipped with an external thread and is ideal for direct connection to pneumatic threaded holes.
- The housing is made of chemically nickel-plated brass and is equipped with an NBR seal, which ensures a reliable seal against compressed air and water.
- The compact, robust design enables quick connection without tools.
- The locking mechanism provides reliable protection against accidental release in dynamic applications.
- Material - Nickel-plated brass
- with Teflon-coated external thread
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 60 °C
- Operating pressure min. - -0.1 MPa
- Max. operating pressure - 1 MPa
- Size - M5 to 1/2
- Connection thread - M5 to R 3/4"
- Media - Compressed air, water
- Wrench size - 8 to 27 mm
- min. bore - 2.5 to 15 mm
- Diameter - 10 to 31.6 mm
- Length - 25.9 to 65.5 mm
- Weight - 6.1 to 113.3 g
- Minimum order quantity - 5 pieces
- Price per piece
Versions: (12)
Item No.: 973000080954
Type
| Size | M5 |
| External thread | M5 |
| € 11,00 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 55,00)
Item No.: 973000100286
Type
| Size | M5 |
| External thread | R 1/8" |
| € 10,94 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 54,72)
Item No.: 973000003510
Type
| Size | 1/8 |
| External thread | R 1/8" |
| € 10,30 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 51,48)
Item No.: 973000003514
Type
| Size | 1/8 |
| External thread | R 1/4" |
| € 10,30 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 51,48)
Item No.: 973000233862
Type
| Size | 1/8 |
| External thread | R 3/8" |
| € 10,30 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 51,48)
Item No.: 973000003689
Type
| Size | 1/4 |
| External thread | R 1/8" |
| € 10,65 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 53,24)
Item No.: 973000003698
Type
| Size | 1/4 |
| External thread | R 1/4" |
| € 10,65 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 53,24)
Item No.: 973000003711
Type
| Size | 1/4 |
| External thread | R 3/8" |
| € 10,65 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 53,24)
Item No.: 973000003719
Type
| Size | 1/4 |
| External thread | R 1/2" |
| € 13,94 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 69,72)
Item No.: 973000003874
Type
| Size | 1/2 |
| External thread | R 3/8" |
| € 19,35 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 96,75)
Item No.: 973000003882
Type
| Size | 1/2 |
| External thread | R 1/2" |
| € 19,35 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 96,75)
Item No.: 973000003886
Type
| Size | 1/2 |
| External thread | R 3/4" |
| € 20,55 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 102,74)
