Quick coupling with socket - with internal thread - internal thread M5 to Rc 1/2" - size M5 to 1/2 - pack of 5 - price per piece
| From € 10,30 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The KKS-F is used wherever a compact, secure connection via internal threads is required, e.g. in control blocks, system modules, test benches or mobile applications.
- It is particularly suitable for installations with frequent coupling requirements and dynamic loads.
- The quick coupling can also be used for water applications up to +40 °C (not frozen).

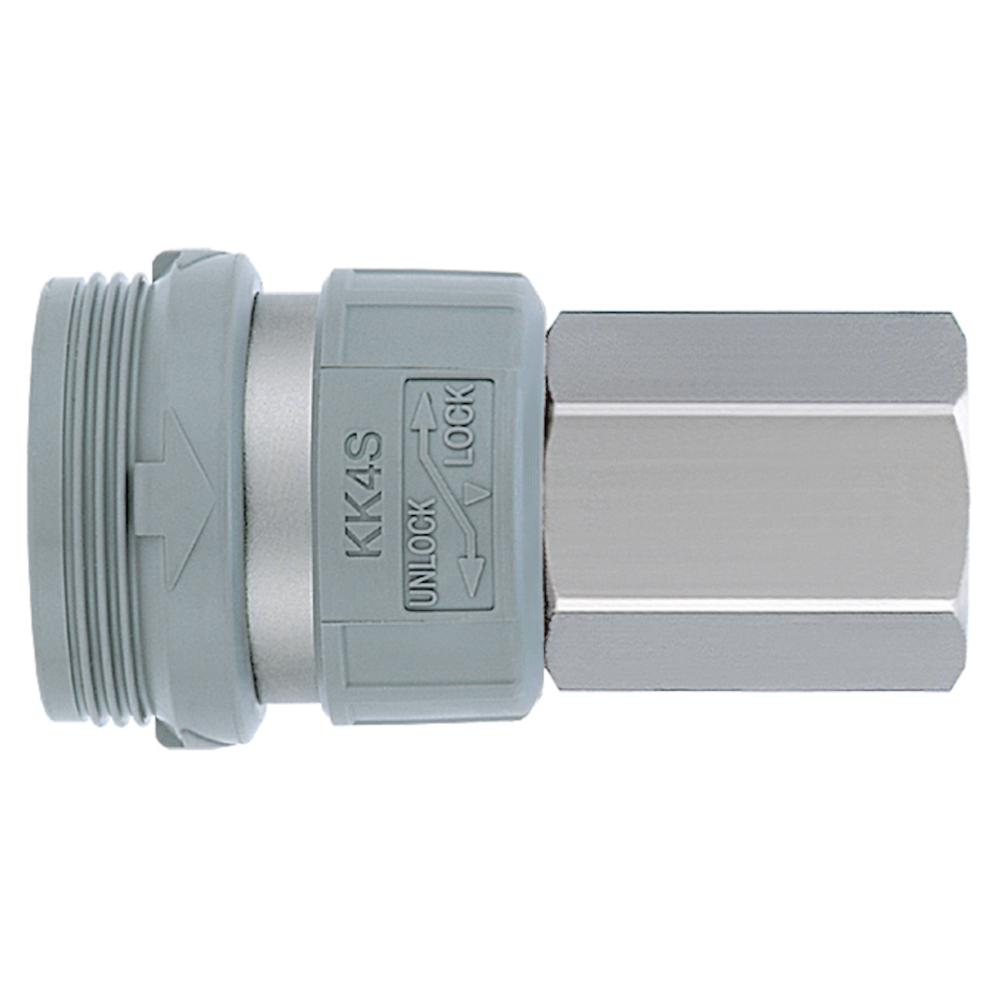

- The KKS-F quick coupling is a straight coupling bushing with a locking mechanism for a secure and vibration-proof connection in pneumatic systems.
- It is equipped with an internal thread and enables a stable and leak-free connection with the matching plug.
- The housing is made of chemically nickel-plated brass and, in combination with the NBR seal, offers high resistance to compressed air and water.
- Tool-free handling enables quick connection even with frequent line changes.
- The robust design is suitable for long-term use in industrial applications.
- Material - nickel-plated brass
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 60 °C
- Operating pressure min. - -0.1 MPa
- Max. operating pressure - 1 MPa
- Size - M5 to 1/2
- Connection - internal thread M5 or Rc 1/8" to 1/2"
- Media - compressed air, water
- Wrench size - 8 to 24 mm
- Diameter - 10 to 31.6 mm
- Length - 26.8 to 66.3 mm
- Weight - 6.4 to 93.6 g
- Minimum order quantity - 5 pieces
- Price per piece
Versions: (8)
Item No.: 973000084680
Type
| Size | M5 |
| Internal thread | M5 |
| € 10,30 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 51,48)
Item No.: 973000003506
Type
| Size | 1/8 |
| Internal thread | Rc 1/8" |
| € 10,30 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 51,48)
Item No.: 973000080119
Type
| Size | 1/8 |
| Internal thread | Rc 1/4" |
| € 10,30 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 51,48)
Item No.: 973000213274
Type
| Size | 1/8 |
| Internal thread | Rc 3/8" |
| € 10,30 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 51,48)
Item No.: 973000003694
Type
| Size | 1/4 |
| Internal thread | Rc 1/4" |
| € 10,65 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 53,24)
Item No.: 973000003706
Type
| Size | 1/4 |
| Internal thread | Rc 3/8" |
| € 10,65 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 53,24)
Item No.: 973000003869
Type
| Size | 1/2 |
| Internal thread | Rc 3/8" |
| € 19,35 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 96,75)
Item No.: 973000003878
Type
| Size | 1/2 |
| Internal thread | Rc 1/2" |
| € 19,35 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 96,75)
