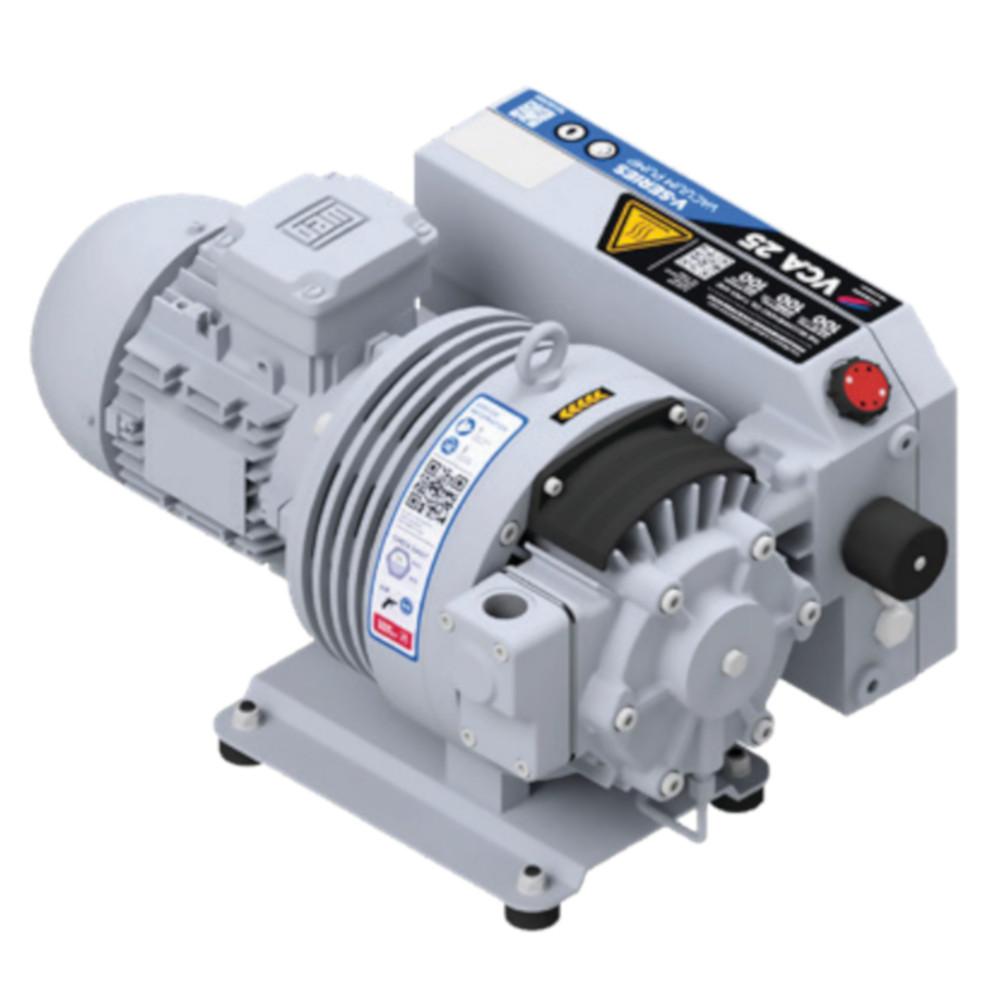

Rotary vane vacuum pump oil-flooded - Model VCA 25 - max. vacuum 0.5 mbar - suction capacity 25 m³/h - air-cooled
| € 4.555,56 |
| Price incl. VAT |
Delivery time 7 weeks
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
401347431939
Product Description
- Generation of a constant or cyclically used vacuum in closed systems with low intake pressure, e.g. in packaging, automation or laboratory applications.
- The V‑VCA 25 vacuum pump is an oil-flooded rotary vane pump with a suction capacity ofof 25 m³/h (at 50 Hz) or 30 m³/h (at 60 Hz) and achieves a final pressure of 0.5 mbar (abs.).
- It is designed for continuous operation in closed systems and comes standard with a flange motor, air cooling, gas ballast valve, check valve and oil separator.
- The compact design with double-sided rotor bearings ensures reliable operation and easy integration.
- Vacuum pump
- flooded - air-cooled
- DS motor - 0.75 kW
- 230/400 V +/-10 % 50 Hz 1420 rpm
- 265/460 V +/-10 % 60 Hz 1720 rpm
- Efficiency class - IE3
- Insulation class F Protection class IP 55
- with PTC thermistor
- Final pressure - 0.50 mbar (abs.)
- Suction capacity - 25 m³/h
- includes suction-side fine filter, integrated check valve, gas ballast valve, oil mist separator, rubber foot pads, oil supplied separately
- Net weight - 36 kg
- Price per piece
