Product Description
The SMC KQ2VD screw-in elbow is used for right-angle branching from a female thread.
Typical areas of application include industrial automation, assembly lines, production cells and general mechanical engineering.
The flexible design allows several consumers to be connected in parallel within compact system structures.
These are particularly useful for extensions or modifications where quick and neat push-fit connections are required.
Description

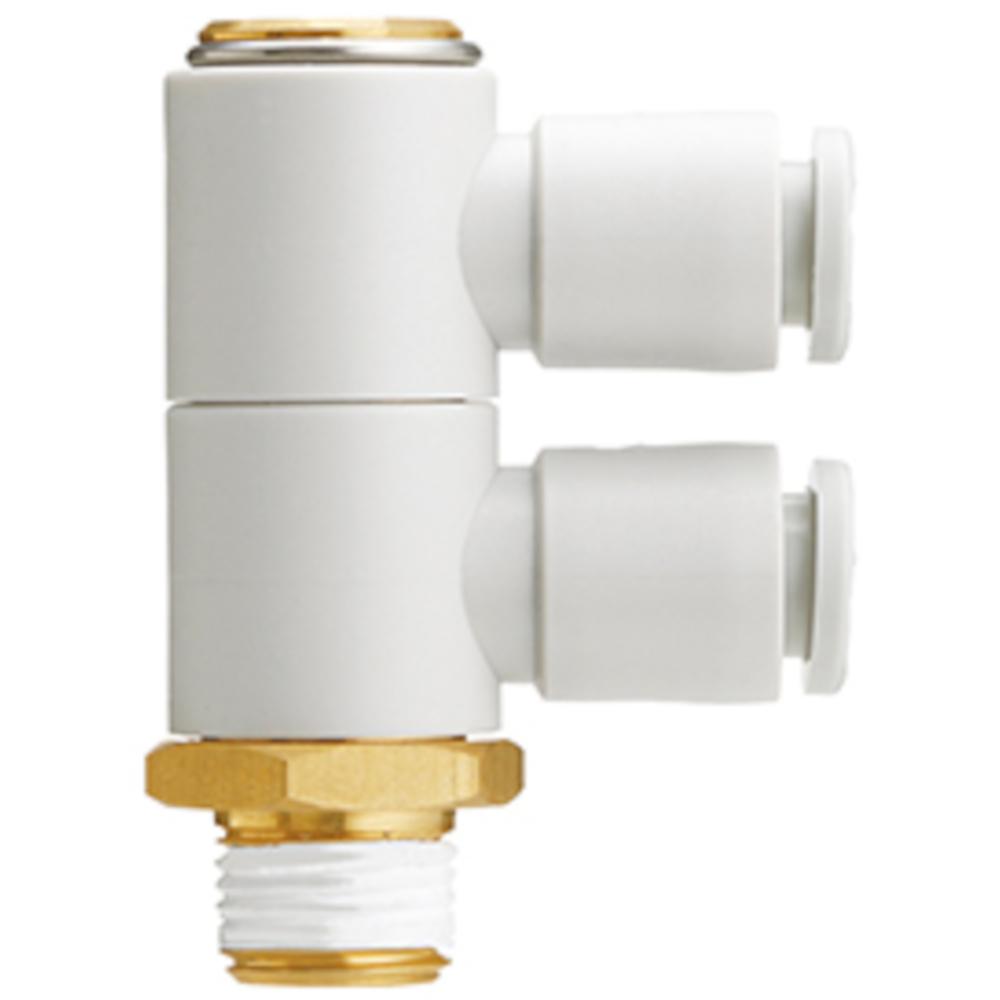

The swivelling, double SMC KQ2VD threaded elbow consists of a chemically nickel-plated brass and PBT body and robust POM pressure rings, and is fitted with a face seal.
The two angled connectors can each be rotated independently by 360°.
The compact design of the push-fit screw-in fitting allows it to be used even where space is limited.
The meticulous workmanship ensures permanently leak-proof connections, even when the hoses are frequently reconnected.
Technical Data
Housing material – nickel-plated brass, PBT
Material: Metal body (threaded part) – C3604
Collet material – 304 stainless steel
Guide material – 304 stainless steel
Material of pressure ring – POM
Seal material, O-ring – NBR
Medium – Compressed air/water
Operating pressure range – –0.1 to 10 bar
Test pressure – 30 bar
Ambient and fluid temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
