Product Description
- The SMC KQ2Z threaded elbow is used to create a right-angled branch from an internal thread.
- Typical areas of application include industrial automation, assembly lines, production cells and general mechanical engineering.
- The flexible design allows several consumers to be connected in parallel within compact system structures.
- These are particularly useful for extensions or modifications where quick and neat plug-in connections are required.

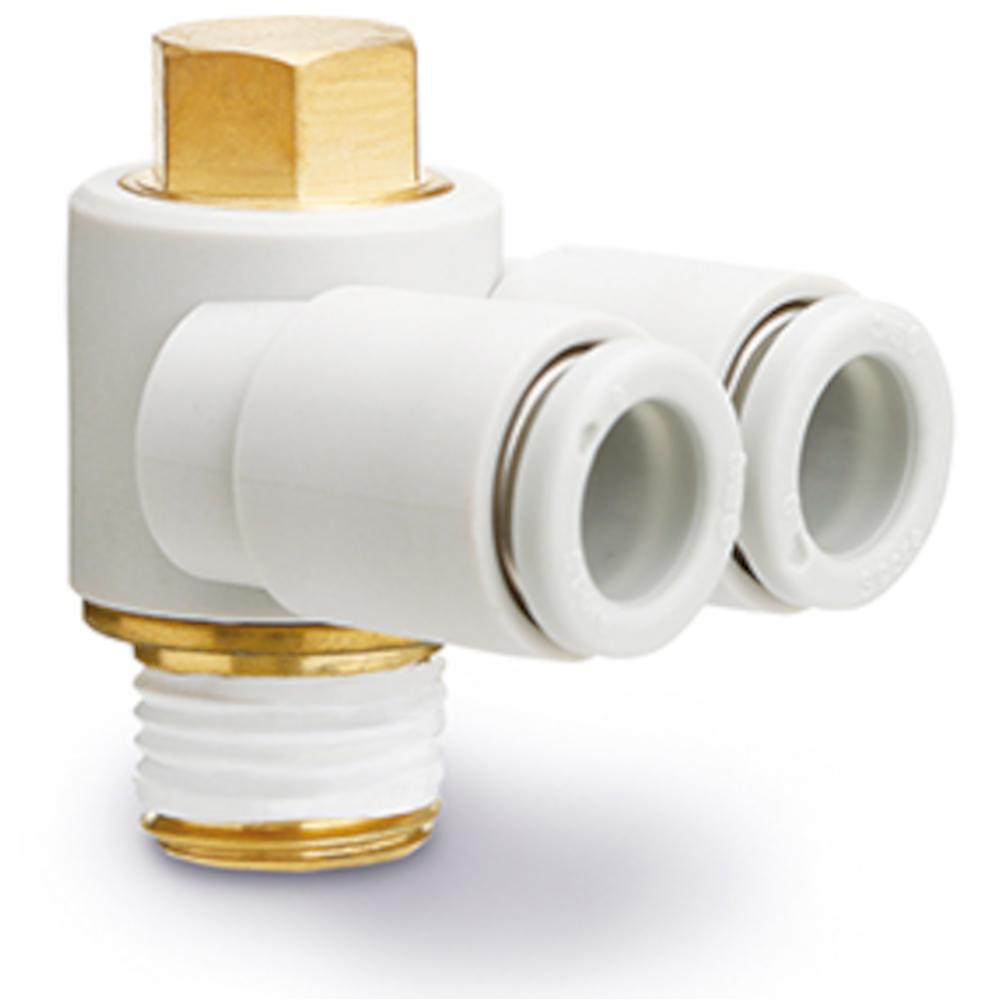

- The swivelling, double SMC KQ2Z threaded elbow consists of a brass body and robust POM pressure rings, and is fitted with a face seal.
- The hexagonal head allows the fitting to be screwed in using hexagonal sockets.
- The compact design of the push-fit screw fitting allows it to be used even where space is limited.
- The meticulous workmanship ensures permanently leak-proof connections, even when the hoses are frequently reconnected.
- Housing material – C3604, PBT
- Material: Metal body (threaded part) – C3604
- Collet material – 304 stainless steel
- Guide material – 304 stainless steel
- Material of pressure ring – POM
- Seal material, O-ring – NBR
- Medium – Compressed air/water
- Operating pressure range – –0.1 to 10 bar
- Test pressure – 30 bar
- Ambient and medium temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
- Suitable hose outer diameter – 4 to 12 mm
- Connection thread – R 1/8" to 1/2"
- Min. connection size – 3 to 9 mm
- Spanner size – 8 to 17 mm
- Width – 16.4 to 37 mm
- Length – 25.1 to 39.9 mm
- Height – 24.6 to 38.8 mm
- Weight – 13.4 to 76 g
- Price per piece
