SMC 4-way KQ2ZD threaded elbow – 360° swivelling – brass – with face seal – hose Ø 4 to 12 mm – pack of 5 or 10 – price per piece

Product Description
  • The SMC KQ2ZD threaded elbow is used for four right-angled branches on internal threads.
  • Typical areas of application include industrial automation, assembly lines, production cells and general mechanical engineering.
  • The flexible design allows several consumers to be connected in parallel within compact system structures.
  • These are particularly useful for extensions or modifications where quick and neat plug-in connections are required.
Description

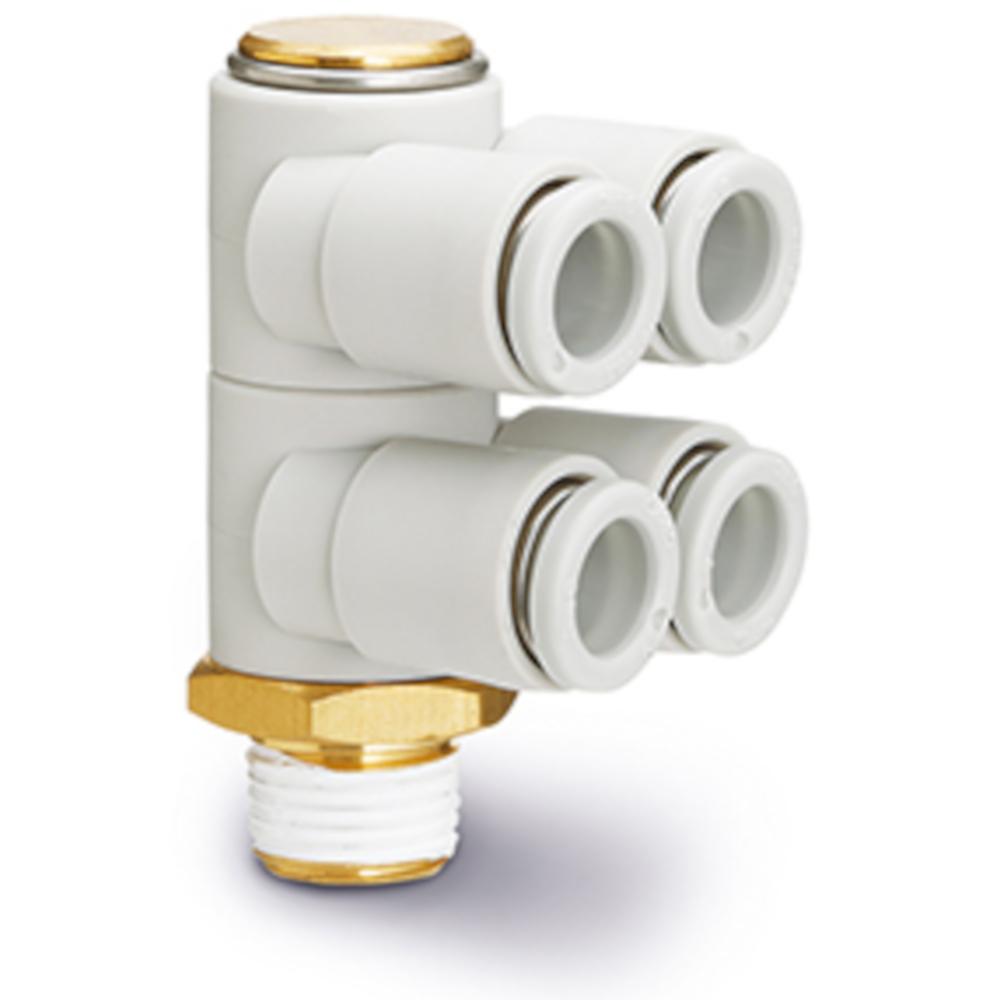

  • The swivelling, four-way SMC KQ2ZD threaded elbow consists of a brass body and robust POM retaining rings, and is fitted with a face seal.
  • The two parts can be rotated independently of one another through 360°.
  • The compact design of the push-fit screw-type fitting allows it to be used even where space is limited.
  • The meticulous workmanship ensures permanently leak-proof connections, even when the hoses are frequently reconnected.
Technical Data
  • Housing material – C3604, PBT
  • Material of metal body (threaded part) – C3604
  • Collet material – 304 stainless steel
  • Guide material – 304 stainless steel
  • Material of pressure ring – POM
  • Seal material, O-ring – NBR
  • Medium – Compressed air/water
  • Operating pressure range – –0.1 to 10 bar
  • Test pressure – 30 bar
  • Ambient and fluid temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
  • Suitable hose outer diameter – 4 to 12 mm
  • Connection thread – R 1/8" to 1/2"
  • Min. connection size – 3 to 9 mm
  • Spanner size – 14 to 27 mm
  • Width – 16.4 to 37 mm
  • Length – 25.5 to 40.3 mm
  • Height – 40.3 to 67.8 mm
  • Weight – 23.6 to 137.4 g
  • Price per item
show more...
show less...
From € 13,61
Price incl. VAT
plus € 29,00 shipping costs
In 16 variations available
Please Choose Version...
