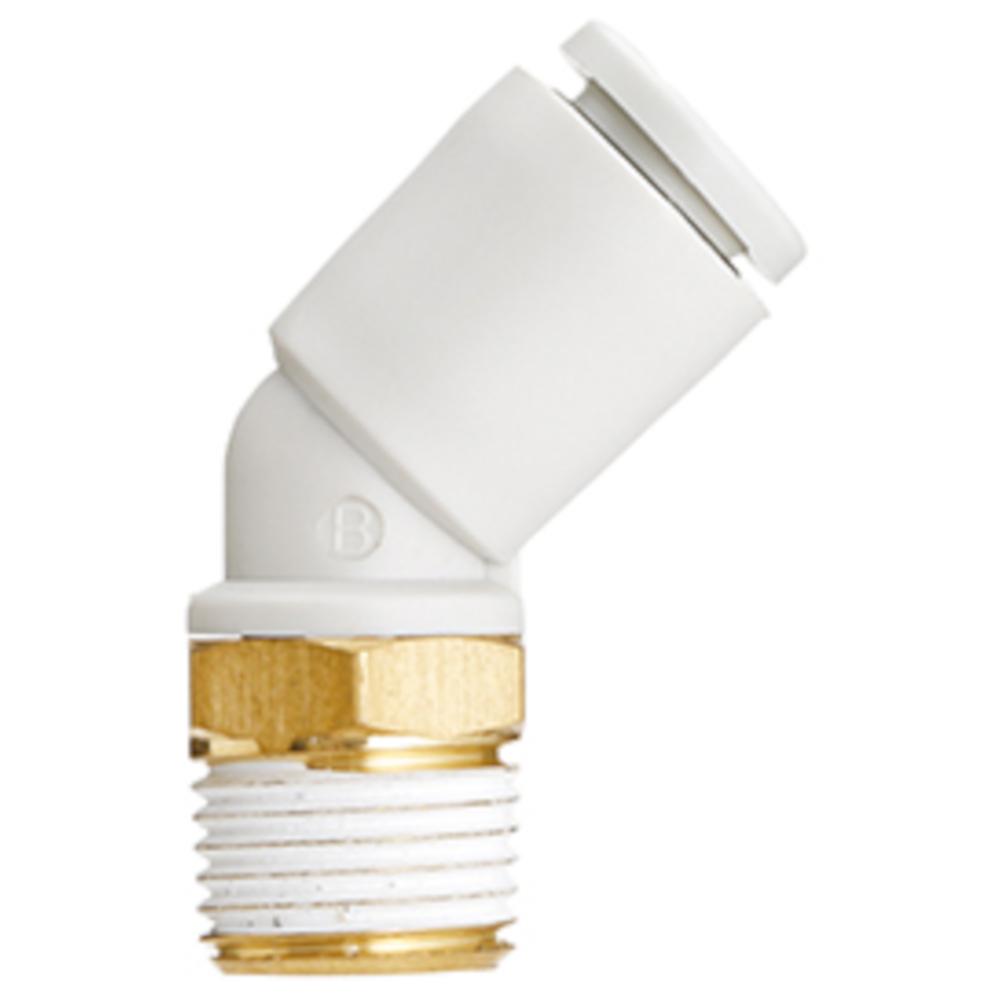

SMC 45° KQ2K screw-in elbow – brass/PBT – with face seal – hose Ø 4 to 16 mm – R thread – pack of 5 or 10 – price per piece
SMC 45° KQ2K screw-in elbow – brass/PBT – with face seal – hose Ø 4 to 16 mm – R thread – pack of 5 or 10 – price per piece
Product Description
The SMC KQ2K threaded elbow is used to connect pneumatic hoses to a threaded connection at a 45° angle, thereby optimising the routing of the hoses to suit the specific conditions of the system.
It is used in automation technology, mechanical engineering and in complex pneumatic control and supply systems.
It is particularly advantageous for use in confined installation spaces or in special hose routing applications where a gentler bend radius is required.
The KQ2K helps to ensure space-saving and efficient hose routing in pneumatic systems.
Description
The SMC KQ2K threaded elbow is made of brass and features a round pressure ring made of POM.
The 45° angle enables optimised hose routing in confined installation spaces and where special routing is required.
The swivelling design allows the installation direction to be flexibly adapted to different system requirements.
The meticulous workmanship ensures a permanently leak-proof and secure connection, even when the hoses are frequently reconnected
Technical Data
Housing material – C3604, PBT, PP
Material: Metal body (threaded part) – C3604
Collet material – 304 stainless steel
Guide material – 304 stainless steel
Material of pressure ring – POM
Seal material, O-ring – NBR
Medium – Compressed air/water
Operating pressure range – –0.1 to 10 bar
Test pressure – 30 bar
Ambient and fluid temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
