SMC KGL threaded elbow – stainless steel/PBT – with thread coating – 1 to 10 bar – hose outer diameter 4 to 16 mm – price per piece
SMC KGL threaded elbow – stainless steel/PBT – with thread coating – 1 to 10 bar – hose outer diameter 4 to 16 mm – price per piece
Product Description

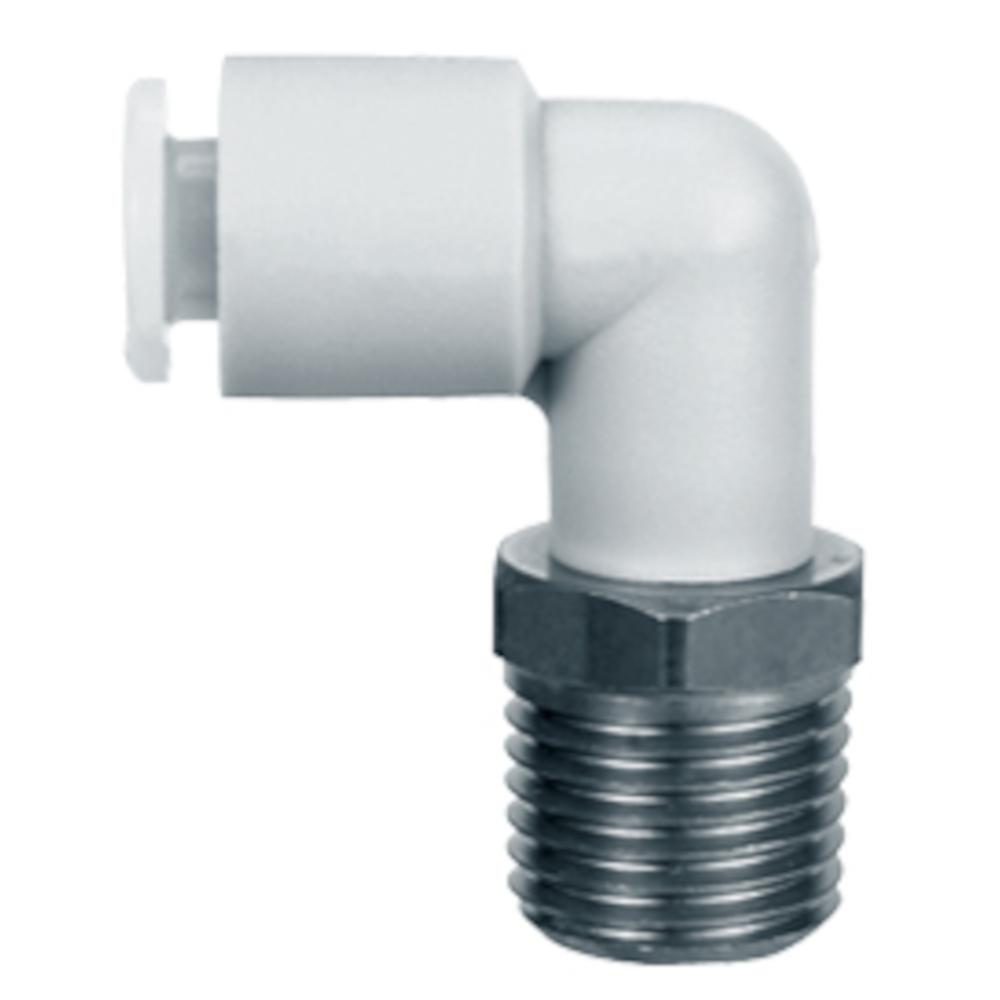

The SMC KGL threaded elbow is suitable for connecting hoses at a right angle to the internal thread.
It can be used in corrosive environments at temperatures of up to 60 °C.
The threaded elbow is suitable for use with polyamide, soft polyamide and polyurethane hoses across a wide pressure range; from low vacuum to a pressure of 10 bar.
Description
The SMC KGL threaded elbow features a body made of stainless steel and PBT; the sealing O-ring is made of NBR.
It features an external thread with a Teflon coating and a push-fit connection.
The low release torque allows the hose to be easily disconnected.
Technical Data
Body material – Stainless steel (SUS303), PBT
Material of clamping ring and pressure ring – POM
O-ring material – NBR
Medium – air, water
Max. operating pressure – 10 bar
Max. operating vacuum pressure – –1 bar
Test pressure – 30 bar
Ambient and fluid temperature – –5 to 60°C (water 0 to 40°C) (not frozen)
