Product Description

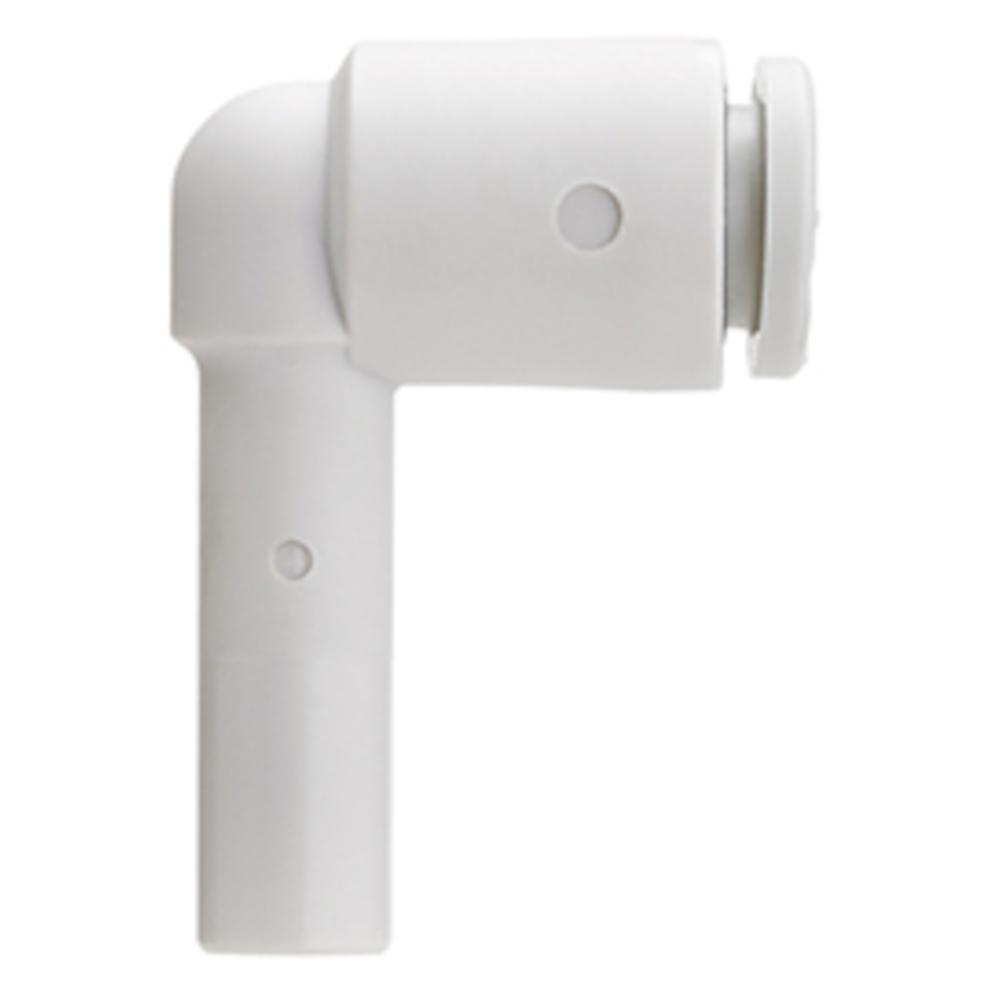

- The SMC KQ2L angled quick-connect coupling is used to connect pneumatic hoses to a quick-connect fitting at a 90° angle, thereby optimising the routing of the hoses to suit the specific conditions of the system.
- It is used in automation technology, mechanical engineering and in complex pneumatic control and supply systems.
- The KQ2L helps to ensure space-saving and efficient hose routing in pneumatic systems.
- The SMC KQ2L angled connector is made of PBT and features a round pressure ring made of POM.
- The 90° angle enables optimised hose routing in confined installation spaces and where special routing is required.
- The meticulous workmanship ensures a permanently tight and secure connection, even when the hoses are frequently reconnected.
- Housing material – PBT
- Material of pressure ring – POM
- Medium – Compressed air/water
- Operating pressure range – –0.1 to 10 bar
- Test pressure – 30 bar
- Ambient and fluid temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
- Suitable hose outer diameter – 1/8" to 1/2"
- Compatible connector sizes – 1/8" to 1/2"
- Min. connection size – 2.2 to 9.6 mm
- Outer diameter – 7.1 to 19.3 mm
- Length – 17.7 to 28.8 mm
- Width – 24.5 to 48.4 mm
- Weight – 0.9 to 7.8 g
- Price per item
