Product Description

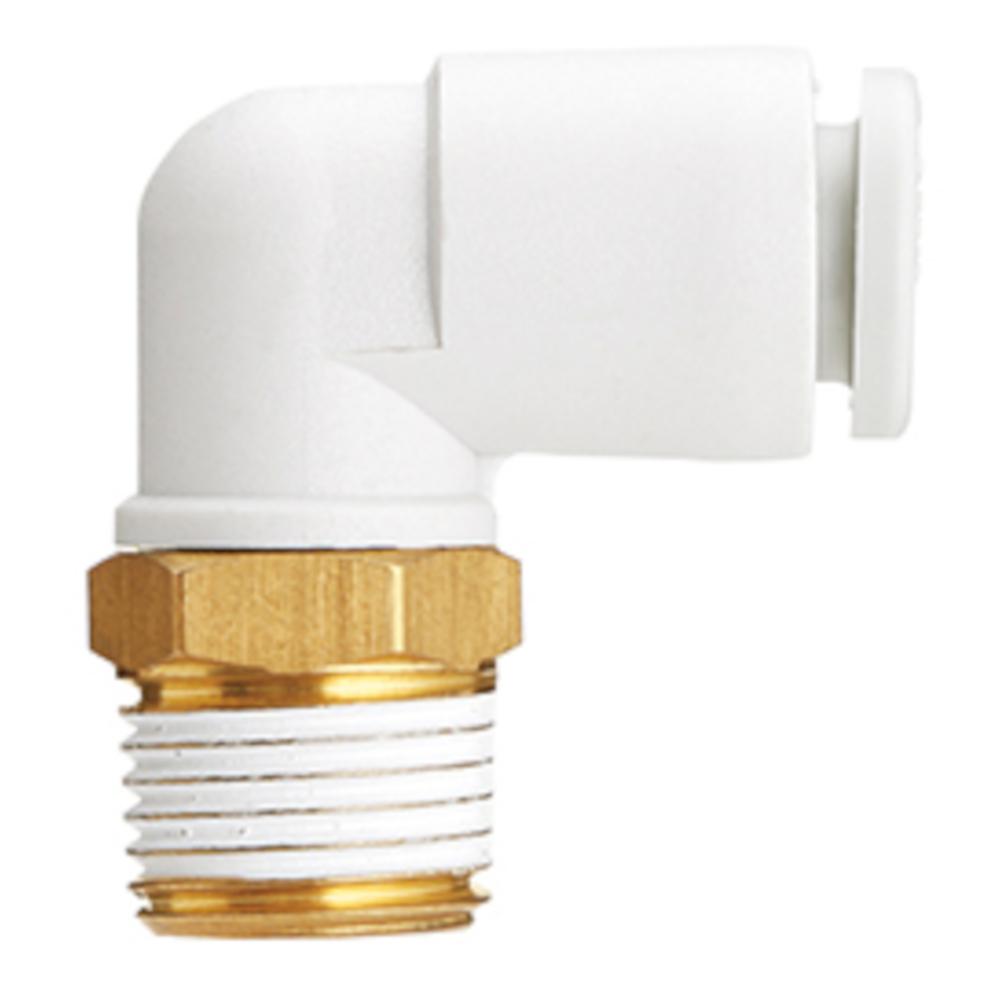

- The SMC KQ2L threaded elbow is used to connect pneumatic hoses to a threaded connection at a 90° angle, thereby optimising the routing of the hoses to suit the specific conditions of the system.
- It is used in automation technology, mechanical engineering and in complex pneumatic control and supply systems.
- The KQ2L helps to ensure space-saving and efficient hose routing in pneumatic systems.
- The SMC KQ2L threaded elbow is made of brass and features a round pressure ring made of POM.
- The 90° angle allows for optimised hose routing in confined installation spaces and where special routing is required.
- The meticulous workmanship ensures a permanently leak-proof and secure connection, even when the hoses are frequently reconnected.
- Housing material – C3604, PBT, PP
- Material: Metal body (threaded part) – C3604
- Collet material – 304 stainless steel
- Guide material – 304 stainless steel
- Material of pressure ring – POM
- Seal material, O-ring – NBR
- Medium – Compressed air/water
- Operating pressure range – –0.1 to 10 bar
- Test pressure – 30 bar
- Ambient and fluid temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
- Suitable hose outer diameter – 1/8" or 1/4"
- Connection thread – 10-32 UNF
- Min. connection size – 2.5 mm
- Spanner size – 7 mm
- Outer diameter – 7.1 to 11.1 mm
- Width – 18.0 to 18.9 mm
- Length – 17.8 to 21.6 mm
- Weight – 3 to 3.5 g
- Price per item
