Product Description

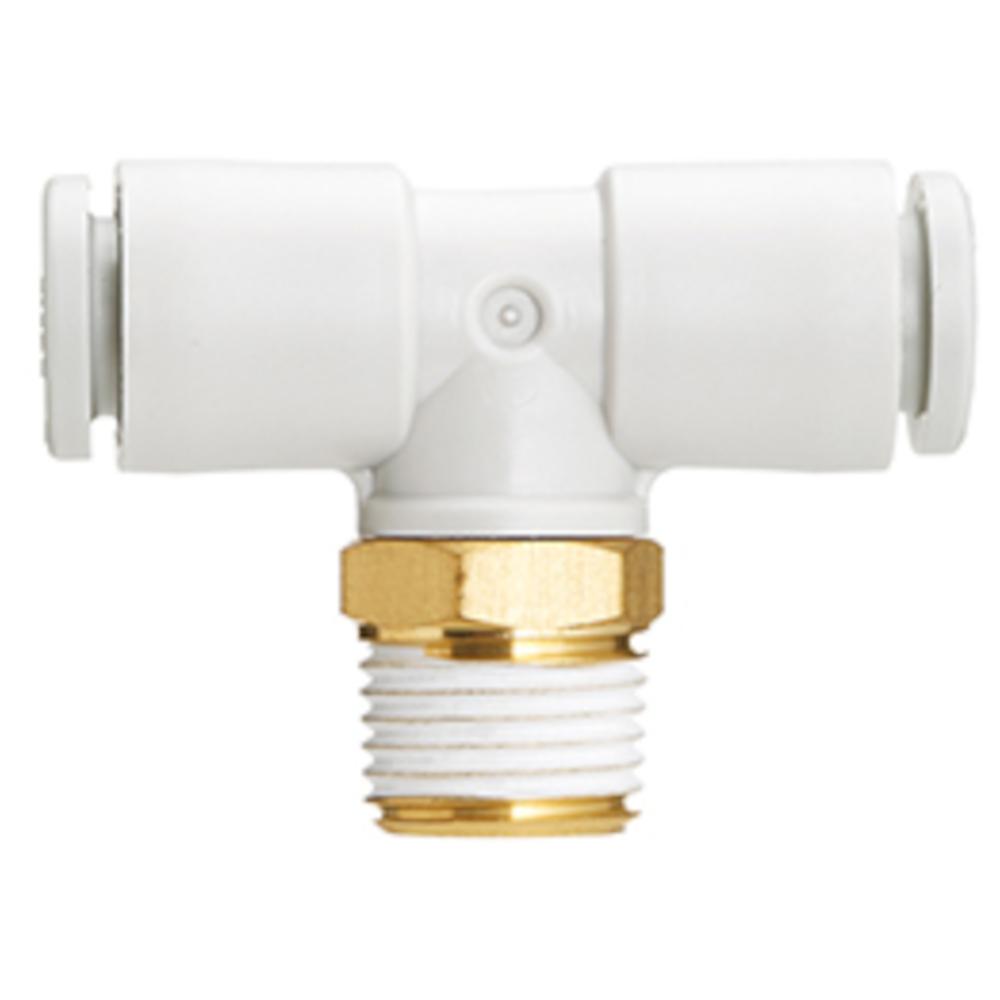

- The SMC KQ2T T-shaped push-fit screw fitting is used to branch pneumatic hoses in both 90° directions whilst simultaneously establishing a connection between a push-fit and a threaded connection.
- It is used in automation technology, mechanical engineering and in pneumatic control and supply systems where different pipe routes need to be combined.
- Their use is particularly advantageous in modular plant layouts and compact control units, where threaded and push-fit connections are combined to save space.
- Tool-free assembly allows for quick installation as well as easy adjustments and maintenance.
- The SMC KQ2T T-shaped push-fit screw-in fitting is made of brass and features a POM pressure ring.
- It is fitted with an external thread and two hose inlets of the same size, facing in both 90° directions.
- The connection thread is sealed with a face seal.
- The compact design facilitates installation even in confined spaces.
- Thanks to precise manufacturing, permanently secure and leak-proof connections are guaranteed, even with frequent reconnection.
- Housing material – C3604, PBT, PP
- Material of metal body (threaded part) – C3604
- Collet material – 304 stainless steel
- Guide material – 304 stainless steel
- Material of pressure ring – POM
- Seal material, O-ring – NBR
- Medium – Compressed air/water
- Operating pressure range: -0.1 to 10 bar
- Test pressure – 30 bar
- Ambient and fluid temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
- Suitable hose outer diameter – 3.2 to 16 mm
- Connection thread – R 1/8" to 1/2"
- Min. connection size – 2.5 to 13 mm
- Spanner size – 12 to 27 mm
- Width – 19.5 to 48.2 mm
- Length – 29 to 54.2 mm
- Weight – 5.7 to 66.8 g
