Product Description

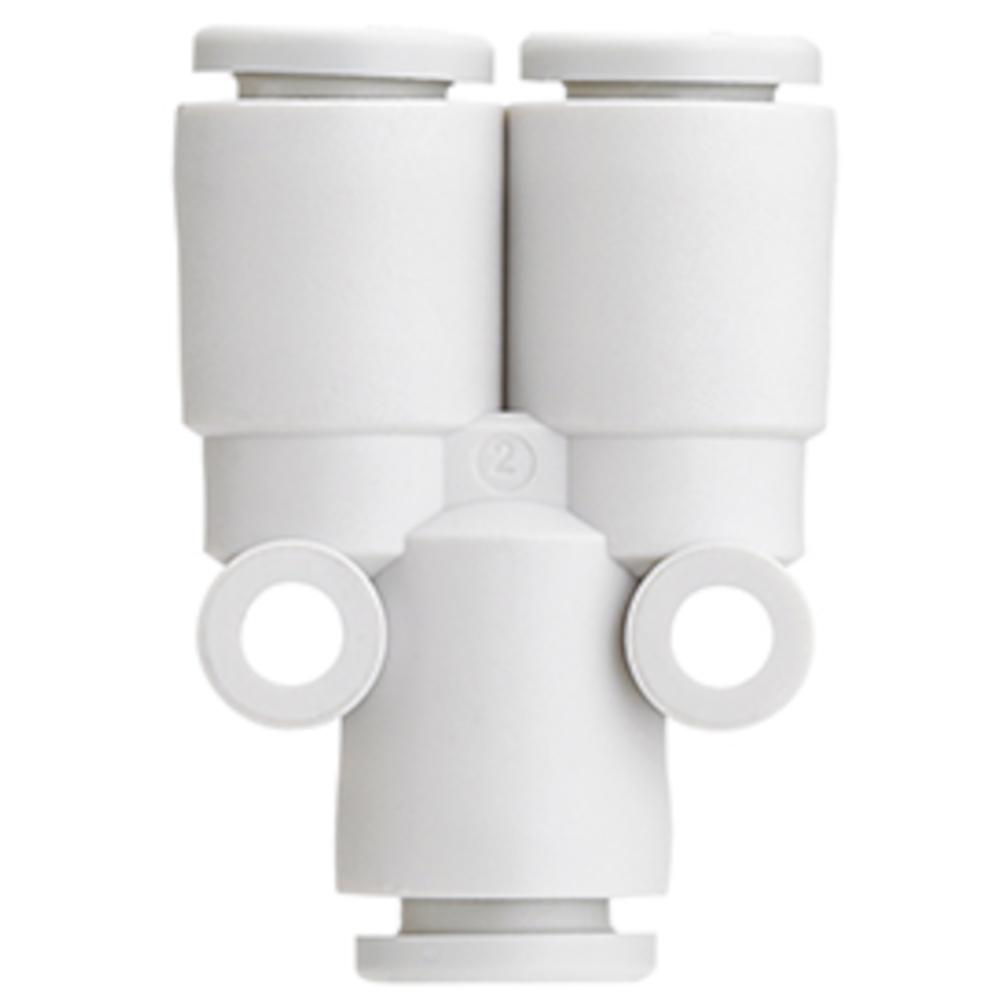

- The SMC KQ2U Y-type plug-in branch fitting with reducer is used to branch pneumatic hoses of the same diameter within a compressed air system.
- It is particularly suitable for applications in industrial automation, mechanical engineering and control systems where different loads need to be supplied simultaneously but require different pipe sizes.
- Its compact design makes it easy to use even in confined spaces and within modular plant layouts.
- Furthermore, the Y-type plug-in branch fitting facilitates quick adjustments and extensions to existing systems.
- The SMC KQ2U Y-type plug-in branch fitting with reducer consists of a PBT body and POM retaining rings.
- Thanks to its compact design, the Y-type plug-in branch fitting can be integrated into pneumatic systems in a space-saving manner.
- Precision manufacturing ensures a reliable and leak-proof connection, even with frequent plugging and unplugging.
- Housing material – PBT
- Material of pressure ring – POM
- Medium – Compressed air/water
- Operating pressure range: -0.1 to 10 bar
- Test pressure – 30 bar
- Ambient and fluid temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
- Suitable hose outer diameter – 1/8" to 3/8"
- Min. connection size – 3.2 to 9.6 mm
- Depth – 7.1 to 15.4 mm
- Width – 14.2 to 30.8 mm
- Length – 28.9 to 36.7 mm
- Weight – 2.4 to 10.4 g
- Price per item
