Product Description

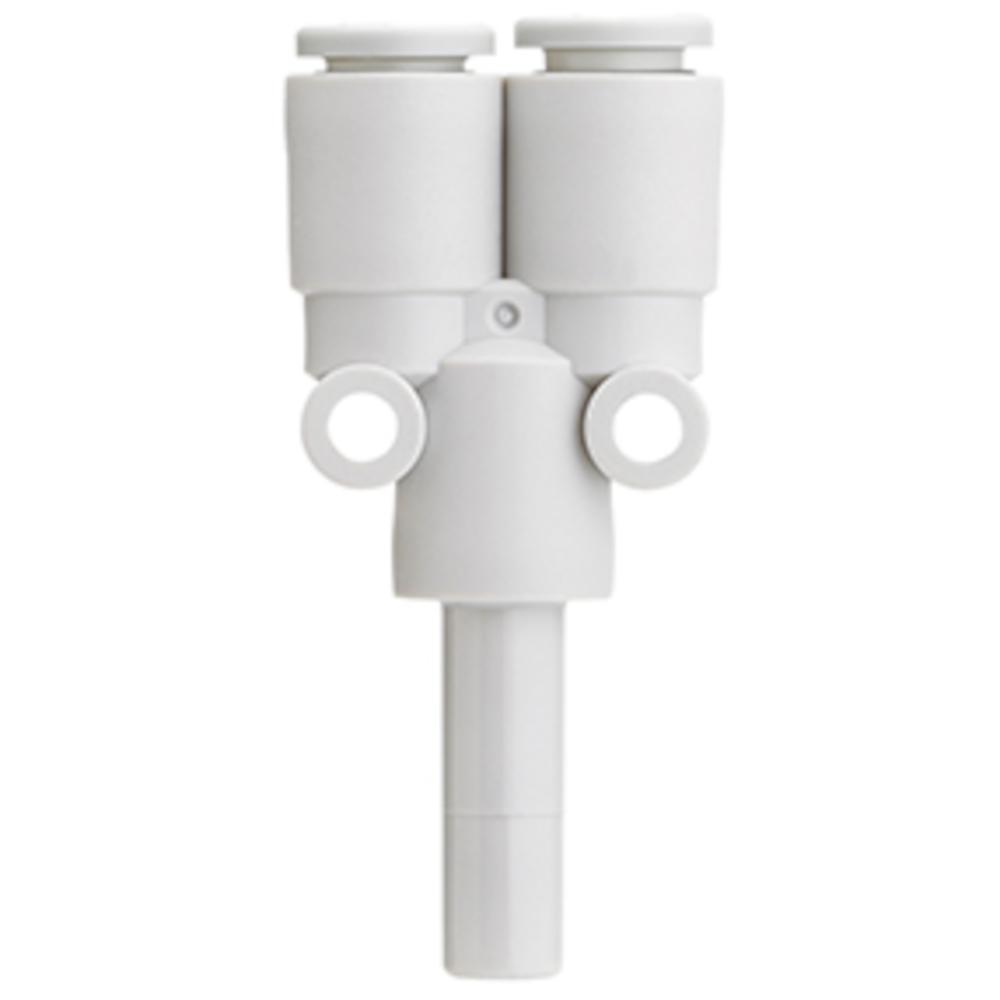

- The SMC KQ2U Y-shaped plug-in branch fitting with reducer is used to branch pneumatic hoses with a plug-in connection within a compressed air system.
- It is particularly suitable for applications in industrial automation, mechanical engineering and control systems where different consumers need to be supplied simultaneously but with different pipe sizes.
- Its compact design makes it easy to use even in confined spaces and within modular plant layouts.
- Furthermore, the Y-type plug-in branch fitting facilitates quick adjustments and extensions to existing systems.
- The SMC KQ2U Y-type plug-in branch fitting with reducer comprises a PBT body and POM retaining rings.
- Thanks to its compact design, the Y-type plug-in branch fitting can be integrated into pneumatic systems in a space-saving manner.
- Precision manufacturing ensures a reliable and leak-proof connection, even with frequent plugging and unplugging.
- Housing material – PBT
- Material of the pressure ring – POM
- Medium – Compressed air/water
- Operating pressure range: -0.1 to 10 bar
- Test pressure – 30 bar
- Ambient and fluid temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
- Suitable hose outer diameter – 1/8" to 5/16"
- Compatible connector sizes – 1/8" to 5/16"
- Min. connection size – 2 to 6 mm
- Depth – 7.1 to 13.2 mm
- Width – 14.2 to 26.4 mm
- Length – 44.8 to 52.1 mm
- Weight – 2.5 to 8 g
