SMC KQ2U Y-type push-fit screw fitting – brass/PBT – with face seal – hose Ø 3.2 to 16 mm – pack of 5 or 10 – price per piece

Product Description
  • The SMC KQ2U Y-type push-fit screw fitting is used to branch an internal thread in the same direction.
  • Typical areas of application include industrial automation, assembly lines, production cells and general mechanical engineering.
  • The flexible design allows several consumers to be connected in parallel within compact system configurations.
  • These are particularly useful for extensions or modifications where quick and neat plug-in connections are required.
Description

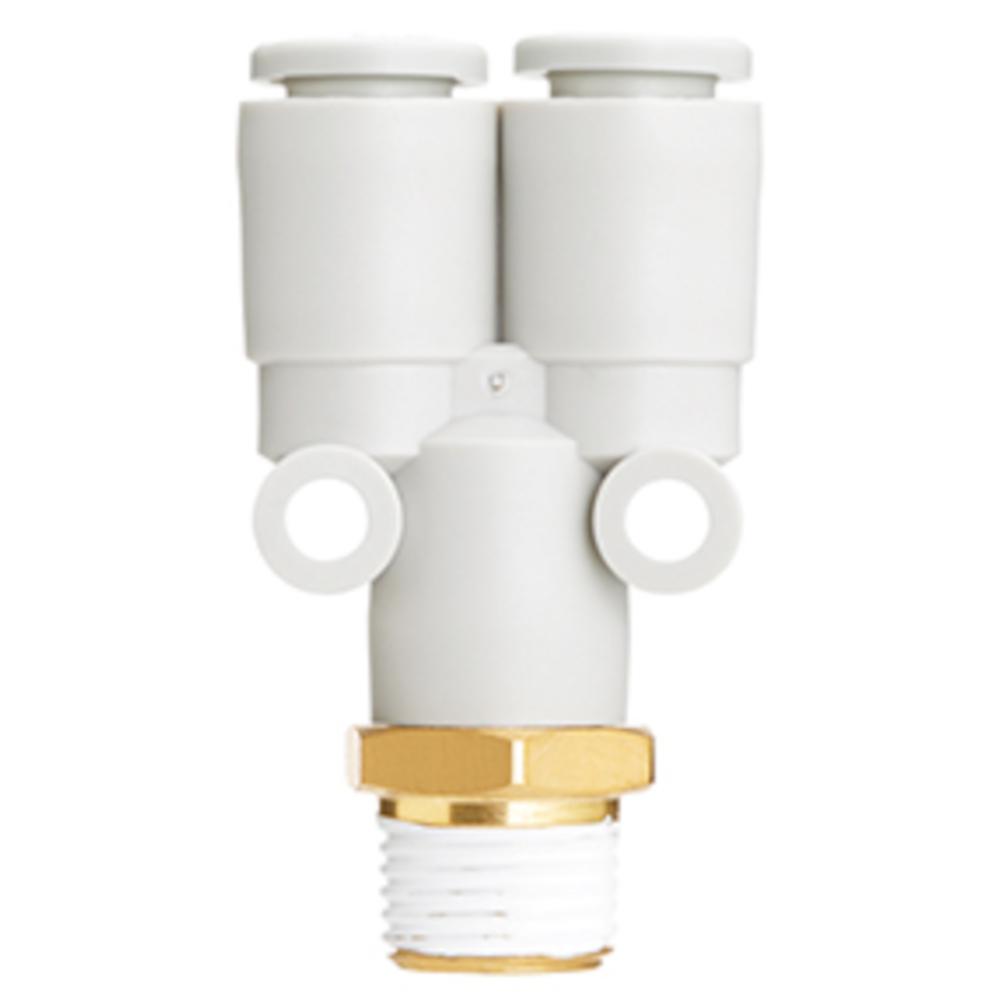

  • The SMC KQ2U Y-shaped push-fit screw fitting comprises a brass and PBT body and robust POM pressure rings.
  • It features an external thread with a face seal and enables a stable and reliable connection between two hoses of the same size in a Y-configuration.
  • The compact design of the push-fit screw fitting means it can also be used where space is limited.
  • The meticulous workmanship ensures permanently leak-proof connections, even when the hoses are frequently reconnected.
Technical Data
  • Housing material – C3604, PBT, PP
  • Material of metal body (threaded part) – C3604
  • Collet material – 304 stainless steel
  • Guide material – 304 stainless steel
  • Material of pressure ring – POM
  • Seal material, O-ring – NBR
  • Medium – Compressed air/water
  • Operating pressure range: -0.1 to 10 bar
  • Test pressure – 30 bar
  • Ambient and medium temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
  • Suitable hose outer diameter – 3.2 to 16 mm
  • Connection thread – R 1/8" to 1/2"
  • Min. connection size – 2.7 to 13 mm
  • Spanner size – 12 to 27 mm
  • Width – 14.2 to 47.6 mm
  • Length – 35.7 to 62.5 mm
  • Weight – 9 to 70 g
  • Price per item
show more...
show less...
From € 9,02
Price incl. VAT
plus € 29,00 shipping costs
In 19 variations available
Please Choose Version...

Do you have any questions?
We would like to assist you!
verkauf@esska.de
Versions: (19)
Narrow down your selection
Hose outer diameter
Connection thread
Pack size
Part No.
Type
show all 19 implementations
Anzeigen als list Table
Item No.: 973011622301
Type
Hose outer diameter3.2 mm
Connection threadR 1/8"
Pack size10 pieces
Part No.-
TypeKQ2U23-01AP
€ 9,02
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 4 weeks
Item No.: 973011622302
Type
Hose outer diameter3.2 mm
Connection threadR 1/4"
Pack size10 pieces
Part No.-
TypeKQ2U23-02AP
€ 9,37
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 4 weeks
Item No.: 973011620401
Type
Hose outer diameter4 mm
Connection threadR 1/8"
Pack size10 pieces
Part No.-
TypeKQ2U04-01AP
€ 5,83
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 4 weeks
Item No.: 973011620402
Type
Hose outer diameter4 mm
Connection threadR 1/4"
Pack size10 pieces
Part No.-
TypeKQ2U04-02AP
€ 6,14
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 14 working days
Item No.: 973011620601
Type
Hose outer diameter6 mm
Connection threadR 1/8"
Pack size10 pieces
Part No.-
TypeKQ2U06-01AP
€ 6,44
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 10 weeks
Item No.: 973011620602
Type
Hose outer diameter6 mm
Connection threadR 1/4"
Pack size10 pieces
Part No.-
TypeKQ2U06-02AP
€ 6,69
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 973011620603
Type
Hose outer diameter6 mm
Connection threadR 3/8"
Pack size10 pieces
Part No.-
TypeKQ2U06-03AP
€ 7,47
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 3 weeks
Item No.: 973011620801
Type
Hose outer diameter8 mm
Connection threadR 1/8"
Pack size10 pieces
Part No.-
TypeKQ2U08-01AP
€ 10,02
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 4 weeks
Item No.: 973001162964
Type
Hose outer diameter8 mm
Connection threadR 1/4"
Pack size10 pieces
Part No.01162964
TypeKQ2U08-02AP
€ 10,26
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 10 weeks
Item No.: 973011620803
Type
Hose outer diameter8 mm
Connection threadR 3/8"
Pack size10 pieces
Part No.-
TypeKQ2U08-03AP
€ 10,31
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 4 weeks
Item No.: 973011621002
Type
Hose outer diameter10 mm
Connection threadR 1/4"
Pack size5 pieces
Part No.-
TypeKQ2U10-02AP
€ 10,92
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 3 weeks
Item No.: 973011621003
Type
Hose outer diameter10 mm
Connection threadR 3/8"
Pack size5 pieces
Part No.-
TypeKQ2U10-03AP
€ 10,92
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 3 weeks
Item No.: 973011621004
Type
Hose outer diameter10 mm
Connection threadR 1/2"
Pack size5 pieces
Part No.-
TypeKQ2U10-04AP
€ 12,53
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 4 weeks
Item No.: 973011621202
Type
Hose outer diameter12 mm
Connection threadR 1/4"
Pack size5 pieces
Part No.-
TypeKQ2U12-02AP
€ 13,83
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 3 weeks
Item No.: 973011621203
Type
Hose outer diameter12 mm
Connection threadR 3/8"
Pack size5 pieces
Part No.-
TypeKQ2U12-03AP
€ 13,83
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 4 weeks
Item No.: 973011621204
Type
Hose outer diameter12 mm
Connection threadR 1/2"
Pack size5 pieces
Part No.-
TypeKQ2U12-04AP
€ 14,33
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 3 weeks
Item No.: 973011621602
Type
Hose outer diameter16 mm
Connection threadR 1/4"
Pack size5 pieces
Part No.-
TypeKQ2U16-02AP
€ 18,44
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 4 weeks
Item No.: 973011621603
Type
Hose outer diameter16 mm
Connection threadR 3/8"
Pack size5 pieces
Part No.-
TypeKQ2U16-03AP
€ 18,44
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 4 weeks
Item No.: 973011621604
Type
Hose outer diameter16 mm
Connection threadR 1/2"
Pack size5 pieces
Part No.-
TypeKQ2U16-04AP
€ 17,58
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 4 weeks
