SMC KQ2U Y-type push-fit screw fitting – nickel-plated brass/PBT – with face seal – hose diameter 3.2 to 16 mm – pack of 5 or 10 – price per piece
SMC KQ2U Y-type push-fit screw fitting – nickel-plated brass/PBT – with face seal – hose diameter 3.2 to 16 mm – pack of 5 or 10 – price per piece
Product Description
The SMC KQ2U Y-shaped push-fit fitting is used to branch compressed air lines in pneumatic systems when several outlets need to be connected to a central supply line.
Typical areas of application include industrial automation, assembly lines, production cells and general mechanical engineering.
The flexible design allows several consumers to be connected in parallel within compact system structures.
These are particularly useful for extensions or modifications where quick and neat plug-in connections are required.
Description

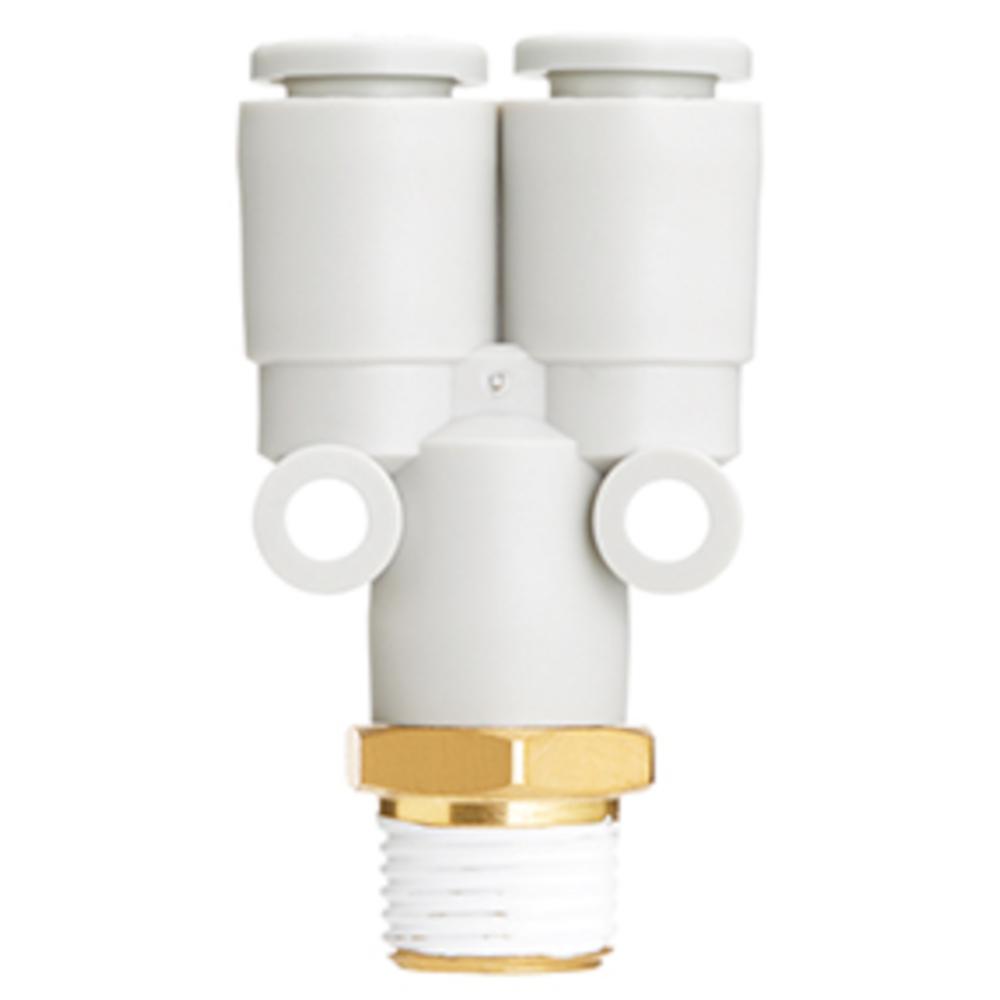

The SMC KQ2U Y-shaped push-fit screw fitting consists of a chemically nickel-plated brass and PBT body and robust POM retaining rings.
It features an external thread with a face seal and enables a stable and reliable connection between two hoses of the same size in a Y-configuration.
The compact design of the push-fit screw fitting means it can also be used where space is limited.
The meticulous workmanship ensures permanently leak-proof connections, even when the hoses are frequently reconnected.
Technical Data
Housing material – nickel-plated brass, PBT, PP
Material of metal body (threaded part) – C3604
Collet material – 304 stainless steel
Guide material – 304 stainless steel
Material of pressure ring – POM
Seal material, O-ring – NBR
Medium – Compressed air/water
Operating pressure range: –0.1 to 10 bar
Test pressure – 30 bar
Ambient and fluid temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
