Product Description
- The SMC S-coupler KK130P is used in pneumatic systems to connect compressed air lines. The detachable plug and socket connection allows pneumatic lines to be connected and disconnected.
- The coupler is suitable, amongst other things, for air blowing applications and other compressed air systems where a detachable pipe connection and low pressure loss are required.

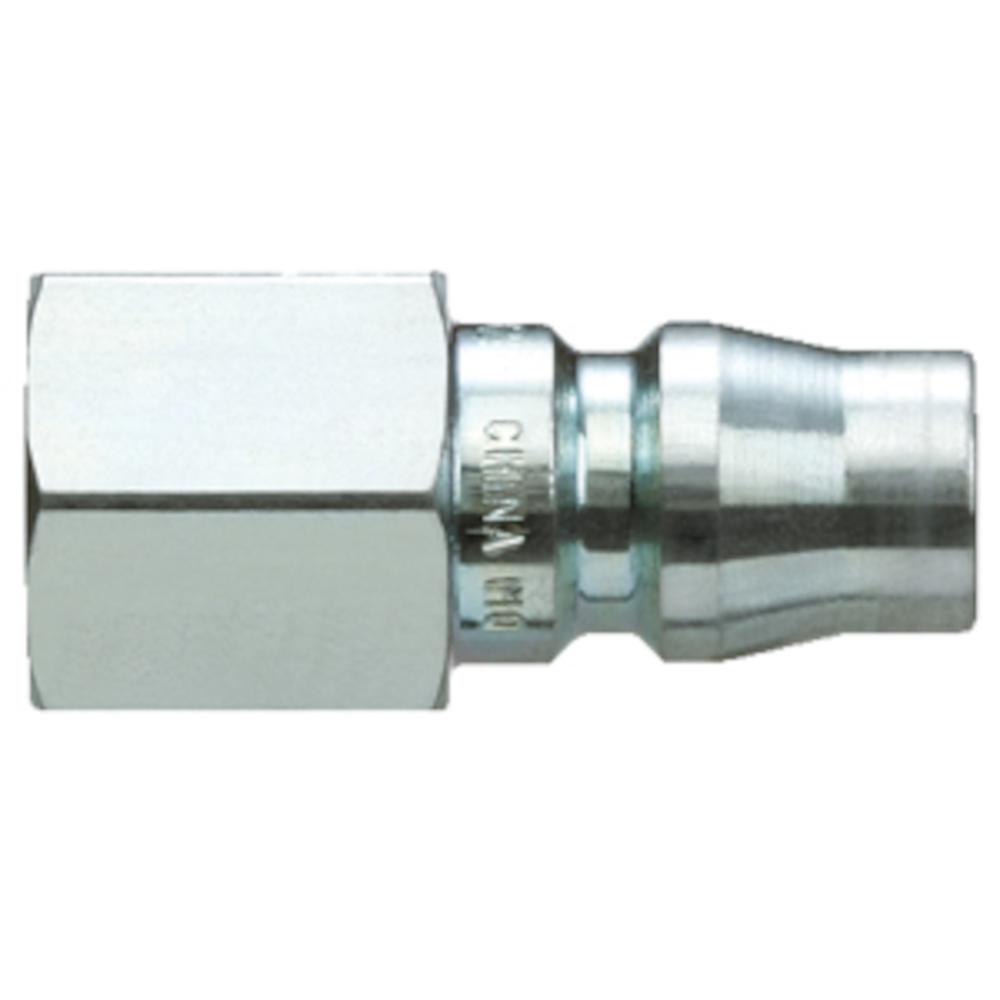

- The SMC S-coupler KK130P is a plug-in fitting with an internal thread for creating detachable compressed air connections in pneumatic systems.
- The connector is made of galvanised and chromate-coated structural steel and has been heat-treated.
- The coupler is designed for the flow of compressed air.
- The KK130 series is available with an optional locking mechanism to secure the push-fit connection. An anti-rotation device on the corresponding socket is used to position it in the locked and unlocked positions.
- The S-coupler can be used with compatible sockets from the KK130 series to connect compressed air lines.
- Plug material – structural steel, galvanised and chromate-coated
- Seal material – NBR
- Medium – Compressed air
- Operating pressure range – 0 to 15 bar
- Ambient and fluid temperature – –20 to 80°C (no freezing)
- Connection thread – female thread RC 1/8" to 1/2"
- Spanner size – 14 to 27 mm
- Length – 30 to 42 mm
- Weight – 18 to 73 g
