Product Description

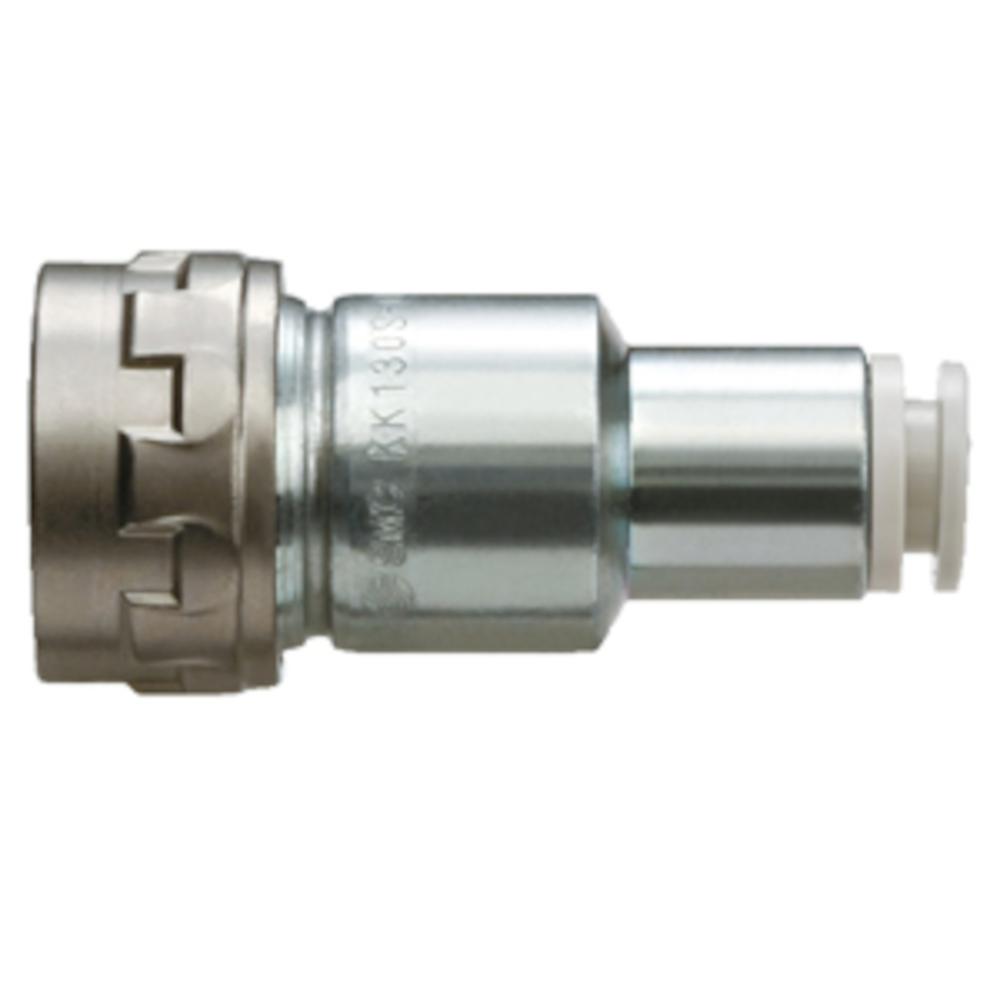

- The SMC S-coupler KK130S is suitable for pneumatic systems in which compressed air lines are connected via a detachable plug-and-socket connection.
- This series is particularly suitable for air-blowing applications where a low pressure drop can be utilised to reduce the required inlet pressure.
- The SMC S-coupler KK130S in a female version with a plug-in connection is made from galvanised and chromate-coated structural steel.
- It is heat-treated to minimise bending, deformation and wear.
- The valve’s special design reduces pressure loss.
- The locking mechanism (semi-standard) prevents the coupling from becoming disengaged due to unexpected impact forces. The anti-rotation feature on the socket secures the locked and unlocked positions.
- Compared with the conventional model in the KK13 series, the KK130 series is more energy-efficient and cost-effective; the force required to connect the couplings is reduced by 22 per cent and the weight is reduced by 14 per cent.
- Material of female housing – structural steel, galvanised and chromate-coated
- Sleeve material – steel, chemically nickel-plated
- Material of O-ring and seals – NBR
- Medium – Compressed air
- Operating pressure range – 0 to 10 bar
- Ambient and medium temperature – –5 to 60°C (no freezing)
- Suitable hose outer diameter – 6 to 12 mm
- Outer diameter of socket – 26 mm
- Length – 52.3 to 55.3 mm
- Weight – 72 to 80 g
