Product Description

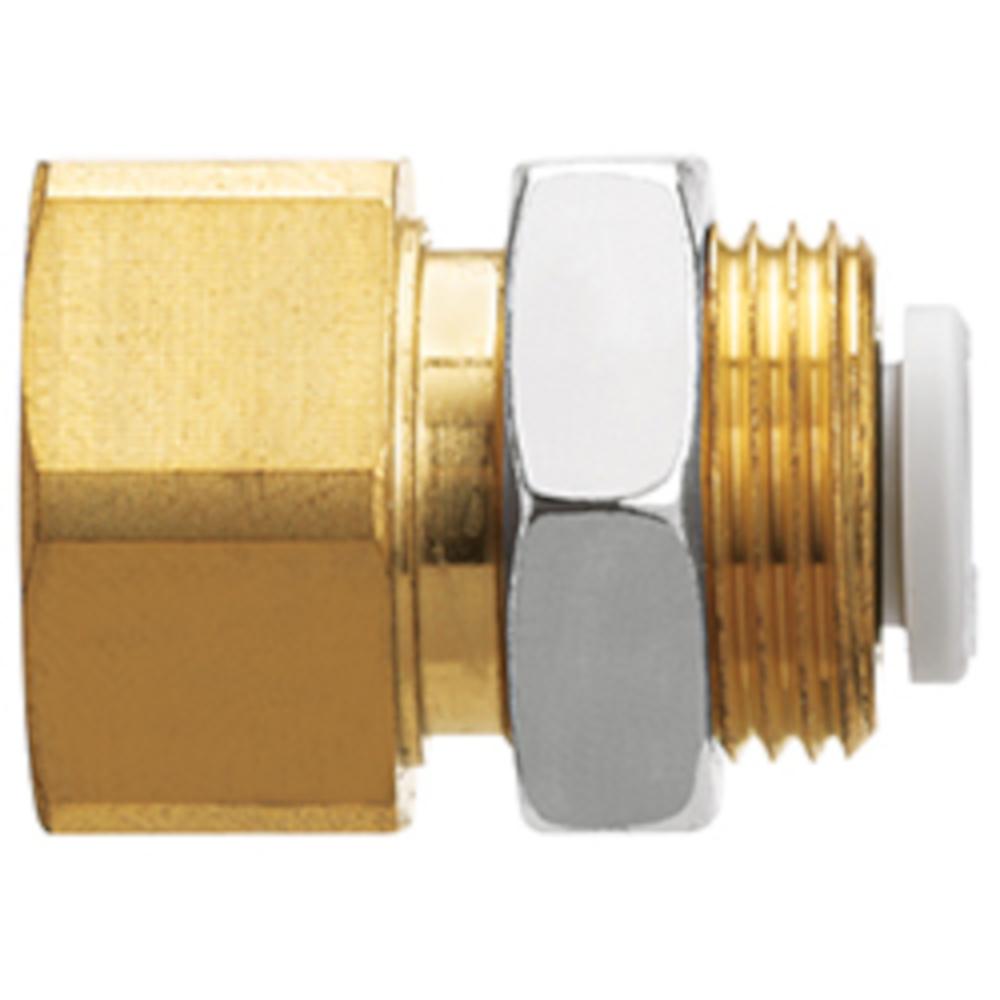

- The SMC Schott KQ2E push-fit connector is designed to connect a hose to an external thread through a panel or similar feed-through with a maximum thickness of 11 mm.
- It is suitable for pneumatic applications where hose connections need to be routed through panels.
- The push-fit connector is suitable for a wide pressure range, including vacuum, and is designed for use with SMC hoses.
- The SMC Schott KQ2E push-fit connector is made of brass and features a round pressure ring made of POM and an NBR O-ring.
- The new design ensures a high level of tightness and reduces the force required to insert the hose.
- The KQ2 series is designed for use with various SMC hose materials and is suitable for a wide pressure range, including vacuum.
- Housing material – C3604, PBT, PP
- Material: Metal body – C3604 (threaded part)
- Collet material – 304 stainless steel
- Guide material – 304 stainless steel
- Material of pressure ring – POM
- Seal material, O-ring – NBR
- Medium – Compressed air/water
- Operating pressure range – –0.1 to 10 bar
- Test pressure – 30 bar
- Ambient and fluid temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
- Thread – JIS B0208 (UNF thread)
- Suitable hose outer diameter – 1/8" to 1/2"
- Maximum thickness of the mounting plate – 11 mm
- External thread – 1/2-20 to 1/12 UNF
- Spanner size – 17.46 to 28.57 mm
- Mounting bore – 13.5 to 26 mm
- Min. connection size – 2.5 to 9.6 mm
- Length – 27.8 to 37.8 mm
- Weight – 25.7 to 109.2 g
