Product Description

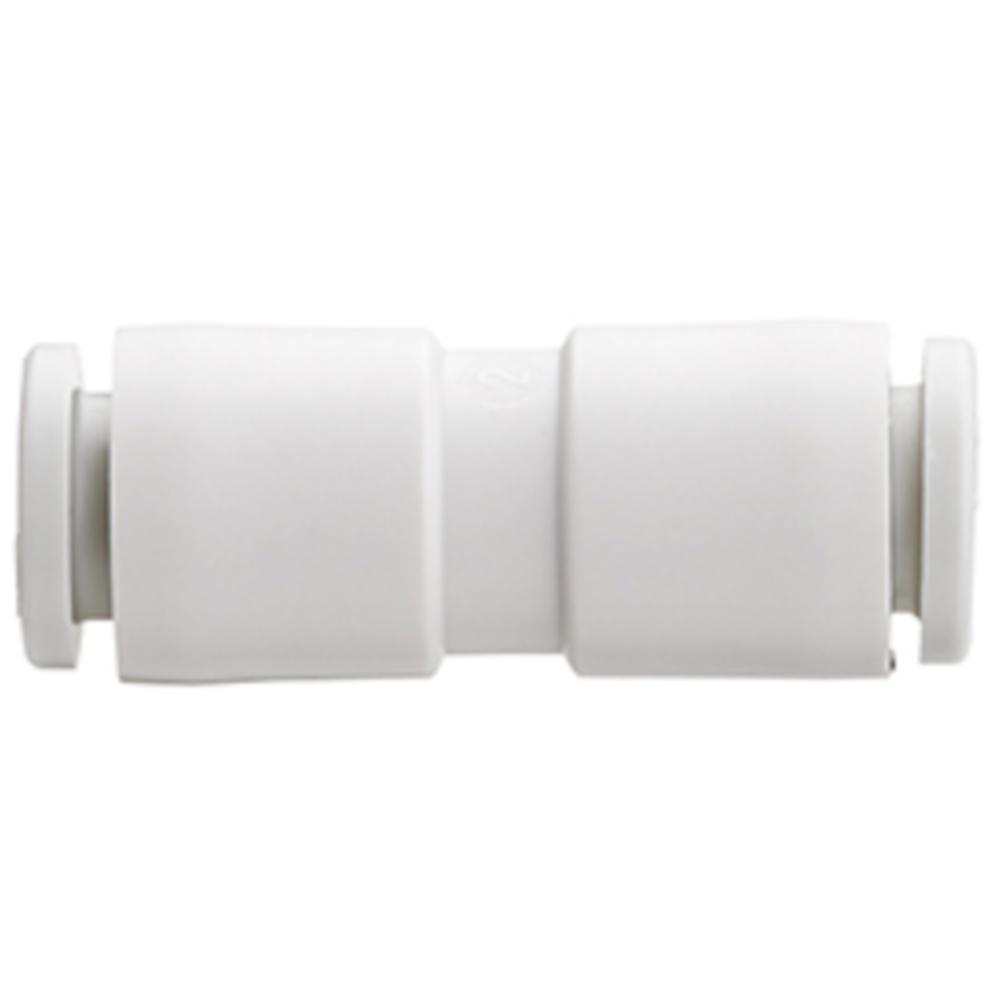

- The KQ2H straight connector from SMC is suitable for pneumatic hose connections in industrial compressed air systems.
- It is used when two hoses need to be connected to each other in the same direction.
- This quick-connect coupling is suitable for pneumatic applications using compressed air, as well as for applications involving water.
- The straight SMC KQ2H connector connects two hoses of the same diameter in a straight line.
- It is made from PBT and fitted with a round pressure ring.
- The KQ2 series is designed for various SMC hose materials and is suitable for a wide pressure range, including vacuum.
- Housing material – PBT
- Material of the pressure ring – POM
- Seal material, O-ring – NBR
- Medium – Compressed air/water
- Operating pressure range: -0.1 to 10 bar
- Test pressure – 30 bar
- Ambient and fluid temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
- Suitable hose outer diameter – 1/8" to 1/2"
- Min. connection size – 2.5 to 9.6 mm
- Outer diameter – 7.1 to 19.3 mm
- Length – 27.6 to 35 mm
- Weight – 1.4 to 8.7 g
