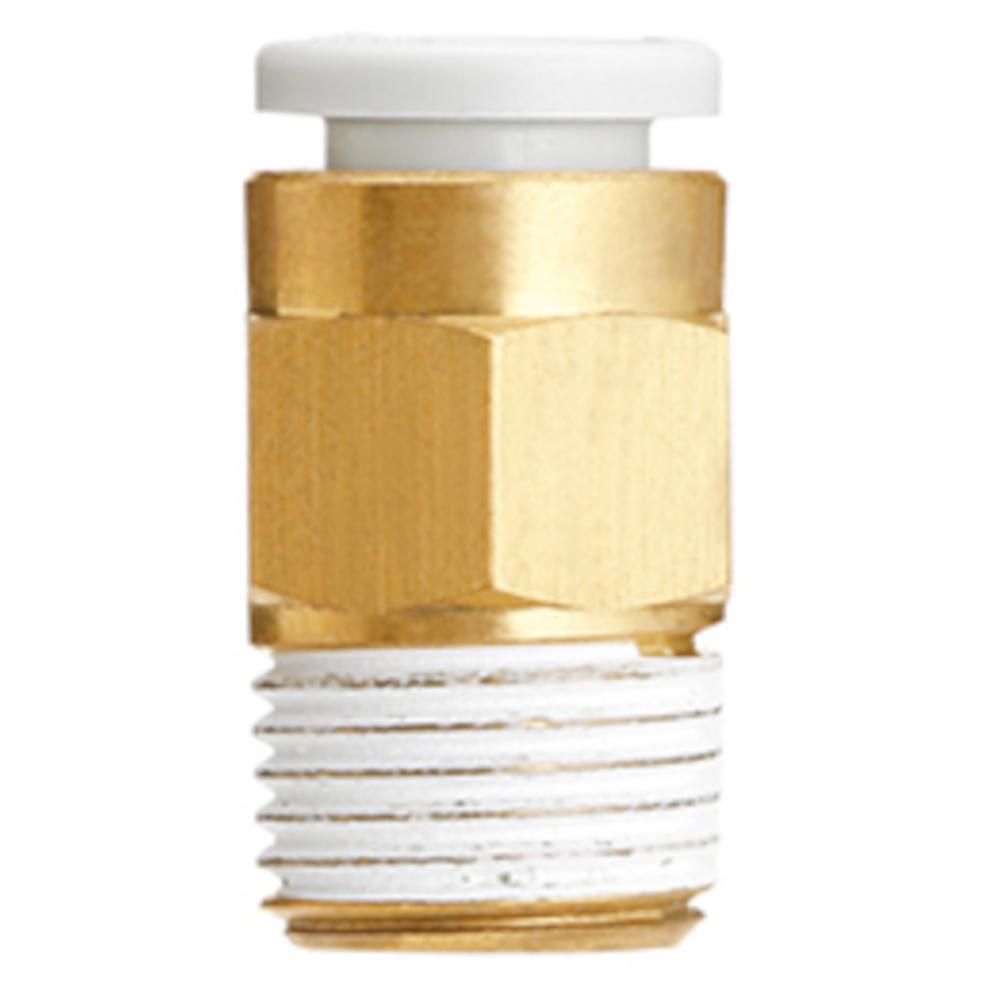

SMC Straight Push-fit Screw Fitting KQ2H – Brass – without thread seal – Hose Ø 1/8" to 1/2" – up to 10 bar – Pack of 10 – Price per piece

Product Description
  • The SMC KQ2H straight push-fit screw fitting is used to connect a hose to an internal thread in the same direction.
  • It is suitable for applications involving compressed air and water.
Description
  • The straight SMC KQ2H push-fit screw fitting is made of brass.
  • It features an imperial push-fit connection, an R external thread without a seal and a round pressure ring.
  • The integrated collet ensures the hose is held securely in place, whilst the pressure ring allows it to be released with minimal effort.
  • The KQ2 series is designed for use with various SMC hose materials and is suitable for a wide pressure range, including vacuum.
Technical Data
  • Housing material – C3604
  • Material of pressure ring – POM
  • Seal material, O-ring – NBR
  • Medium – Compressed air/water
  • Operating pressure range: -0.1 to 10 bar
  • Test pressure – 30 bar
  • Ambient and medium temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
  • Suitable hose outer diameter – 1/8" to 1/2"
  • Connection thread – R 1/8" to 1/2"
  • Min. connection size – 2.5 to 9.6 mm
  • Spanner size – 10 to 22 mm
  • Length – 14 to 28.7 mm
  • Weight – 6 to 45.9 g
  • Price per item
show more...
show less...
From € 3,30
Price incl. VAT
plus € 29,00 shipping costs
In 16 variations available
Please Choose Version...

Do you have any questions?
We would like to assist you!
verkauf@esska.de
Versions: (16)
Narrow down your selection
Hose outer diameter
External thread
Part No.
Type
show all 16 implementations
Anzeigen als list Table
Item No.: 973098640101
Type
Hose outer diameter1/8"
External threadR 1/8"
Part No.-
TypeKQ2H01-01A
€ 3,30
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 3 weeks
Minimum order quantity: 10 (= € 32,96)
Item No.: 973098640102
Type
Hose outer diameter1/8"
External threadR 1/4"
Part No.-
TypeKQ2H01-02A
€ 3,57
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 35,74)
Item No.: 973098640501
Type
Hose outer diameter3/16"
External threadR 1/8"
Part No.-
TypeKQ2H05-01A
€ 4,37
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 3 weeks
Minimum order quantity: 10 (= € 43,70)
Item No.: 973098640502
Type
Hose outer diameter3/16"
External threadR 1/4"
Part No.-
TypeKQ2H05-02A
€ 2,67
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 4 weeks
Minimum order quantity: 10 (= € 26,67)
Item No.: 973098640701
Type
Hose outer diameter1/4"
External threadR 1/8"
Part No.-
TypeKQ2H07-01A
€ 4,65
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 4 weeks
Minimum order quantity: 10 (= € 46,48)
Item No.: 973000986493
Type
Hose outer diameter1/4"
External threadR 1/4"
Part No.00986493
TypeKQ2H07-02A
€ 4,65
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 46,48)
Item No.: 973098640703
Type
Hose outer diameter1/4"
External threadR 3/8"
Part No.-
TypeKQ2H07-03A
€ 3,85
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 38,52)
Item No.: 973098640901
Type
Hose outer diameter5/16"
External threadR 1/8"
Part No.-
TypeKQ2H09-01A
€ 4,04
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 4 weeks
Minimum order quantity: 10 (= € 40,37)
Item No.: 973098640902
Type
Hose outer diameter5/16"
External threadR 1/4"
Part No.-
TypeKQ2H09-02A
€ 3,98
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 4 weeks
Minimum order quantity: 10 (= € 39,81)
Item No.: 973098640903
Type
Hose outer diameter5/16"
External threadR 3/8"
Part No.-
TypeKQ2H09-03A
€ 3,98
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 4 weeks
Minimum order quantity: 10 (= € 39,81)
Item No.: 973098641102
Type
Hose outer diameter3/8"
External threadR 1/4"
Part No.-
TypeKQ2H11-02A
€ 4,78
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 47,78)
Item No.: 973098641103
Type
Hose outer diameter3/8"
External threadR 3/8"
Part No.-
TypeKQ2H11-03A
€ 4,78
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 4 weeks
Minimum order quantity: 10 (= € 47,78)
Item No.: 973098641104
Type
Hose outer diameter3/8"
External threadR 1/2"
Part No.-
TypeKQ2H11-04A
€ 5,44
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 54,44)
Item No.: 973098641302
Type
Hose outer diameter1/2"
External threadR 1/4"
Part No.-
TypeKQ2H13-02A
€ 6,76
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 67,59)
Item No.: 973098641303
Type
Hose outer diameter1/2"
External threadR 3/8"
Part No.-
TypeKQ2H13-03A
€ 6,76
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 4 weeks
Minimum order quantity: 10 (= € 67,59)
Item No.: 973098641304
Type
Hose outer diameter1/2"
External threadR 1/2"
Part No.-
TypeKQ2H13-04A
€ 8,46
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 84,63)
