Product Description
- The straight SMC KQ2S screw-in connector is used to connect pneumatic hoses to a threaded connection in a space-saving and flexible manner, particularly in confined installation spaces.
- It is used in automation technology, mechanical engineering and in pneumatic control and supply systems where compact and flexible installation options are required.
- They are particularly suitable for use in machine housings, control blocks and control cabinets, where there is limited space available for the screw connection.
- The tool-free push-fit assembly enables quick and easy installation and maintenance.

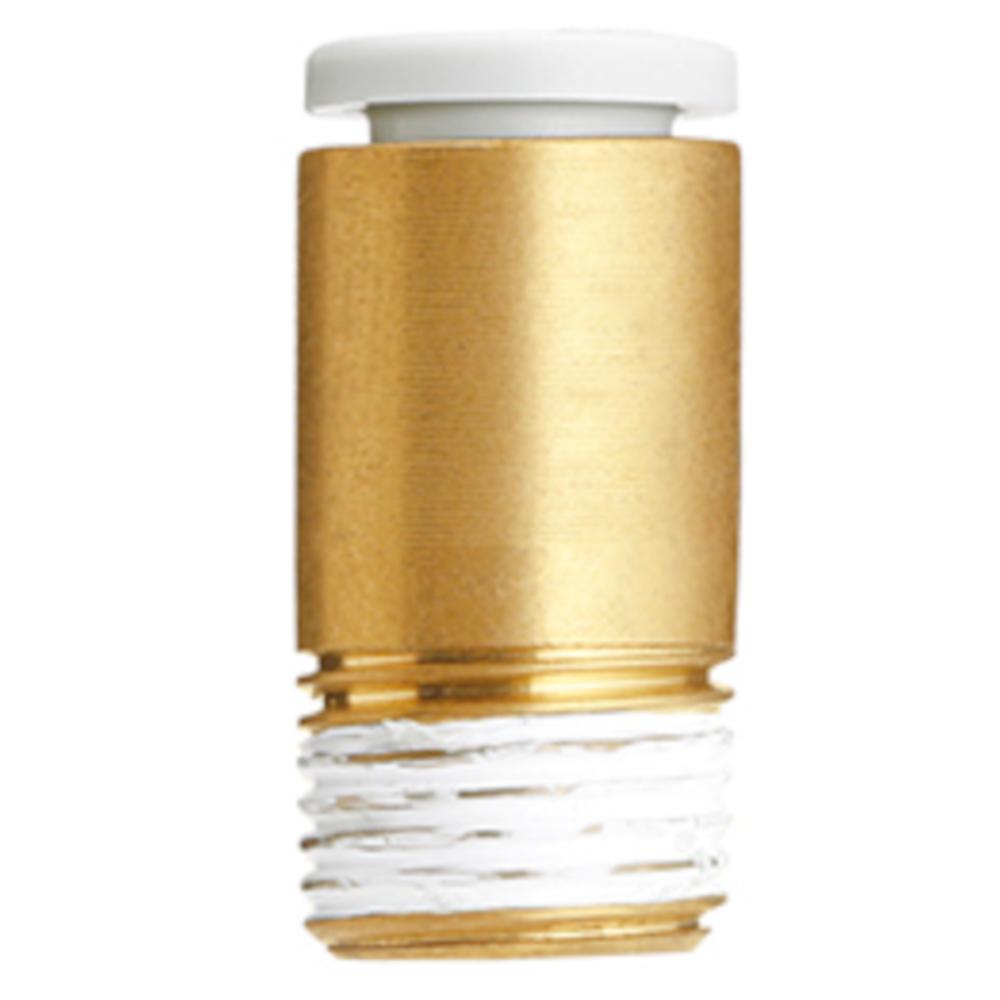

- The KQ2S straight push-fit screw fitting from SMC is made of chemically nickel-plated brass and features a POM pressure ring.
- Their compact, straight design allows for space-saving connection of pneumatic hoses to a threaded connection.
- The integrated hex socket allows for easy installation even in very confined spaces where conventional hex-head screw fittings cannot be used.
- The precise workmanship guarantees permanently secure and leak-proof connections, even when the hoses are frequently reconnected.
- Housing material – nickel-plated brass
- Material of pressure ring – POM
- Seal material, O-ring – NBR
- Medium – Compressed air/water
- Operating pressure range – –0.1 to 10 bar
- Test pressure – 30 bar
- Ambient and fluid temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
- Suitable hose outer diameter – 4 to 16 mm
- Connection thread – R 1/8" to 1/2"
- Min. connection size – 3.1 to 12.1 mm
- Hexagon socket wrench size – 3 to 12 mm
- Outer diameter – 13 to 26 mm
- Length – 19.8 to 32.1 mm
- Weight – 9 to 48.2 g
- Price per item
