Product Description

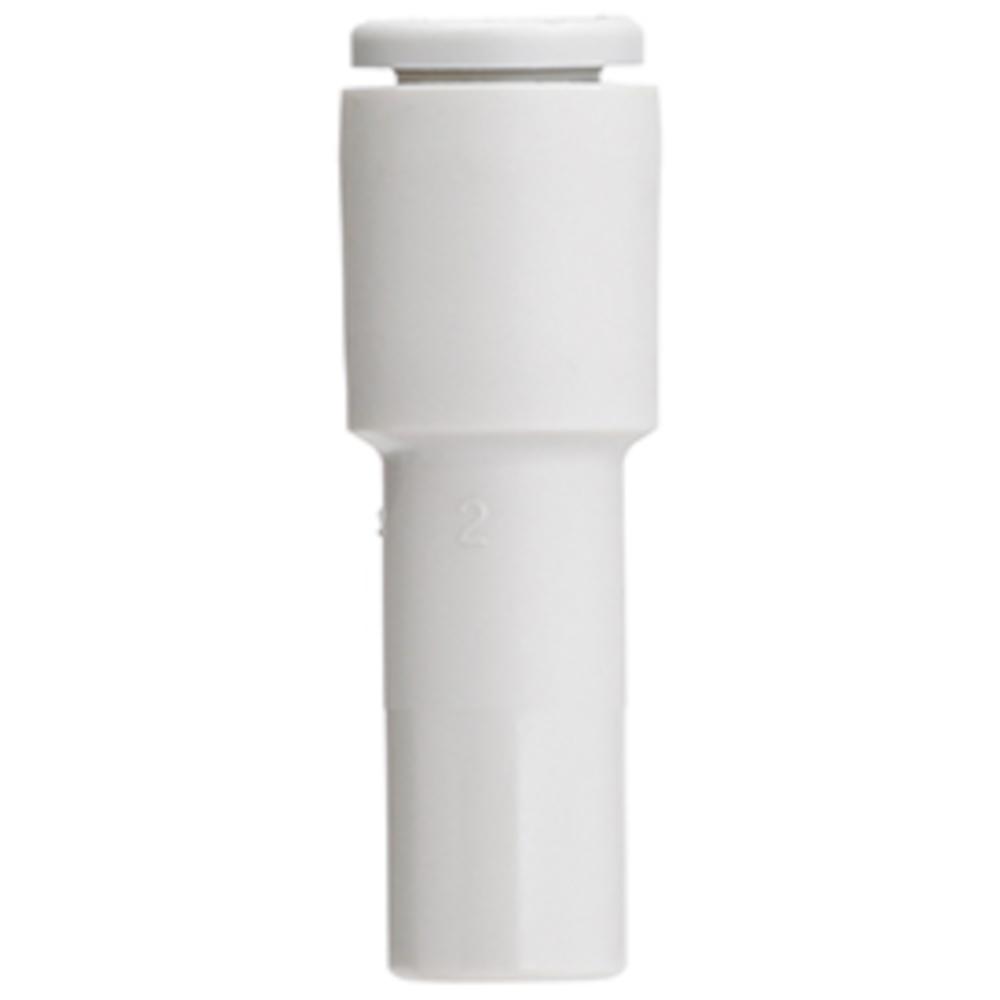

- The KQ2R straight reducer is used to reduce the diameter in push-fit connections.
- It is used in automation technology, mechanical engineering and in pneumatic control and supply systems where different hose sizes need to be combined flexibly.
- Their use is particularly advantageous for system extensions, modifications or repairs where quick and reliable transitions between different hose sizes are required.
- The tool-free plug-in assembly enables simple and time-saving installation as well as straightforward maintenance work.
- The KQ2R straight reducer from SMC consists of a PBT/PP body and a POM pressure ring.
- Their compact design enables a direct and secure reduction in diameter for push-fit connections.
- The space-saving design is particularly suitable for applications where space is limited.
- Thanks to the precise workmanship, secure and leak-proof connections are guaranteed over the long term, even when the hoses are frequently reconnected.
- Material – PBT/PP
- Medium – Compressed air/water
- Operating pressure range: –0.1 to 10 bar
- Test pressure – 30 bar
- Ambient and fluid temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
- Suitable hose outer diameter – 1/8" to 3/8"
- Compatible connector sizes – 5/32" to 1/2"
- Diameter – 7.1 to 15.4 mm
- Length – 28.4 to 39.5 mm
- Weight – 0.8 to 4.2 g
- Price per item
