Product Description

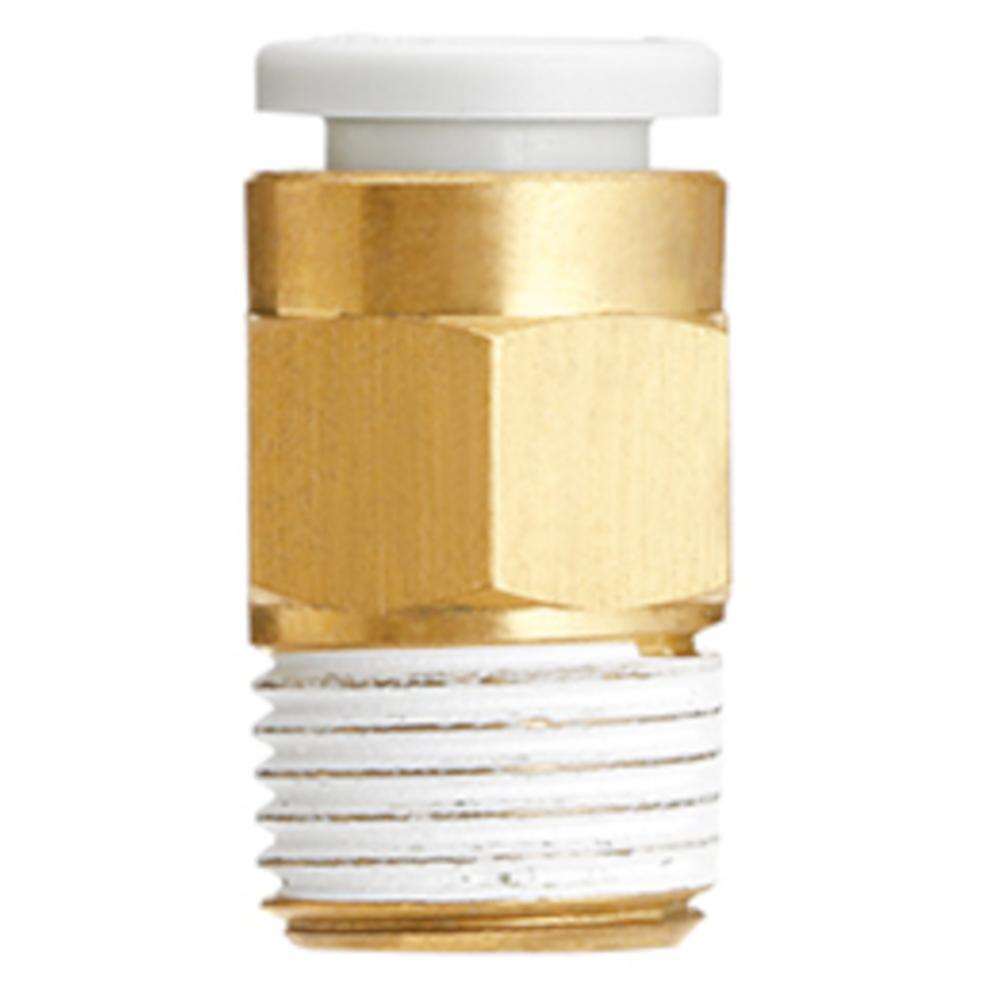

- The KQ2H straight push-fit screw fitting from SMC is used to connect a hose to a female thread in the same direction.
- It is suitable for applications involving compressed air and water.
- The straight SMC KQ2H push-fit screw fitting is made of brass.
- It features a push-fit connection, an R external thread with a face seal and a round pressure ring.
- The integrated collet ensures the hose is held securely in place, whilst the pressure ring allows it to be released with minimal effort.
- The KQ2 series is designed for various SMC hose materials and is suitable for a wide pressure range, including vacuum.
- Housing material – C3604, PBT, PP
- Material of metal body (threaded part) – C3604
- Collet material – 304 stainless steel
- Guide material – 304 stainless steel
- Material of pressure ring – POM
- Seal material, O-ring – NBR
- Medium – Compressed air/water
- Operating pressure range – –0.1 to 10 bar
- Test pressure – 30 bar
- Ambient and fluid temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
- Suitable hose outer diameter – 3.2 to 16 mm
- Connection thread – R 1/8" to 1/2"
- Min. connection size – 2.5 to 13 mm
- Spanner size – 12 to 27 mm
- Length – 14.1 to 32.1 mm
- Weight – 6.6 to 55 g
