Product Description

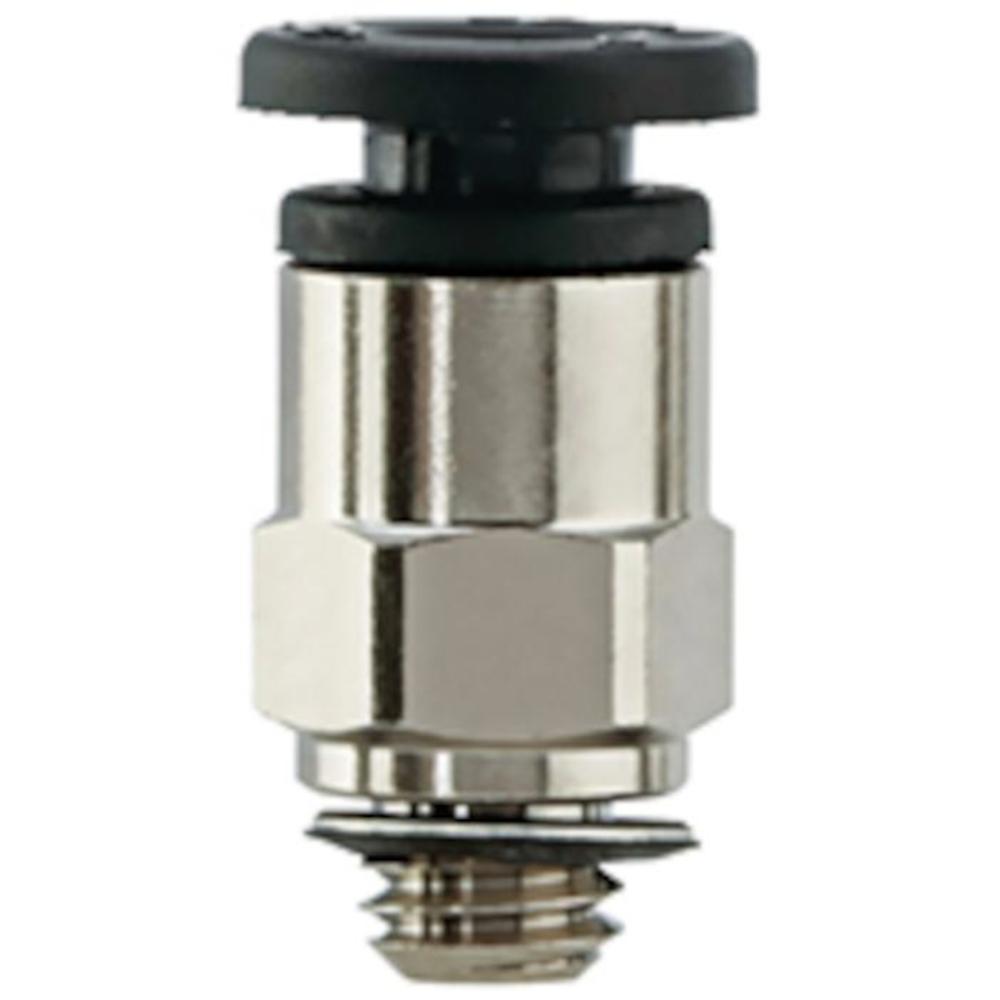

- The KAH straight push-fit screw-type fitting from SMC can be used for copper-free applications and vacuum applications (max. -100 kPa).
- The KAH straight SMC push-fit screw fitting features a push-fit connection and a threaded connection, and can be connected and disconnected using a quick-release mechanism.
- The housings and seals in the fittings and hoses are made of conductive plastic. The brass parts are chemically nickel-plated.
- The KA series is flame-retardant (UL94 standard, V-0) and antistatic.
- Housing material – C3604BD, PBT
- Material of threaded connection piece – C3604BD
- Collet material – SUS304
- Guide sleeve material – SUS304, C3604BD, PBT
- Material of clamping ring, pressure ring – PBT
- Seal material, O-ring – NBR
- Suitable hose materials – antistatic soft nylon, polyurethane
- Suitable hose outer diameter – 3.2 to 6 mm
- Medium – Compressed air
- Max. operating pressure – 10 bar
- Max. operating vacuum – –1 bar
- Test pressure – 30 bar
- Ambient and fluid temperature – 0 to 40 °C
- Thread – metric M5 or M6 thread
- Seal (threaded section) – sealing ring
- Hexagonal – 7 to 10 mm
- Outer diameter – 8.5 to 11.5 mm
- Length – 17 to 19 mm
- Weight – 2 to 3 g
- Price per item
