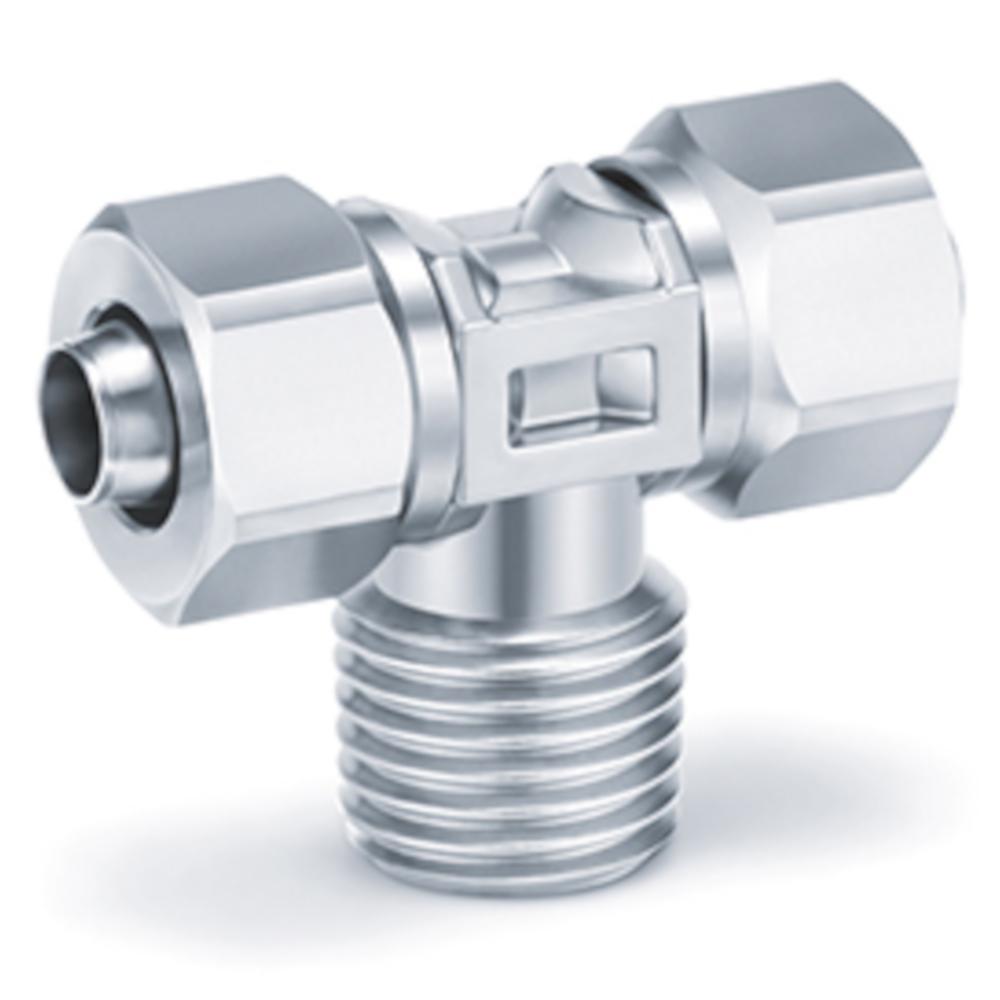

SMC T-clamp fitting KFG2T – stainless steel – 1 to 10 bar – for steam – hose diameter 4 to 16 mm – R thread – price per piece

Product Description
  • The KFG2T T-clamp screw fitting from SMC is suitable for steam applications and can be used at temperatures ranging from -65 to +260ºC.
  • The clamp connection enables the connection of two hoses with threaded ends.
Description
  • The SMC KFG2T T-clamp fitting is made from 316 stainless steel and features an external thread and two push-fit connections with union nuts. No rubber materials are used.
  • The KFG2 series is grease-free and up to 44 per cent more compact and up to 37 per cent lighter than the previous KFG series.
  • The optimised design does not require a separate guide sleeve, which significantly reduces maintenance requirements.
Technical Data
  • Material – 316 stainless steel
  • Medium – compressed air, water, steam
  • Operating pressure range: -1 to 10 bar
  • Test pressure – 30 bar
  • Ambient and fluid temperature – –65 to 260°C (no freezing)
  • Lubricant – grease-free version
  • Suitable hose outer diameter – 4 to 16 mm
  • Suitable hose inner diameter – 2.5 to 13 mm
  • Connection thread – R 1/8" to 1/2"
  • Side hexagon wrench size – 8 to 22 mm
  • Length – 27 to 52.4 mm
  • Width – 16.5 to 38.2 mm
  • Weight – 12 to 106 g
  • Price per item
show more...
show less...
From € 38,79
Price incl. VAT
plus € 29,00 shipping costs
In 23 variations available
Please Choose Version...

Do you have any questions?
We would like to assist you!
verkauf@esska.de
Versions: (23)
Item No.: 973032042501
Type
Hose outer diameter4 mm
Hose inner diameter2.5 mm
Connection threadR 1/8"
Part No.-
TypeKFG2T0425-01
€ 38,79
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 973032042502
Type
Hose outer diameter4 mm
Hose inner diameter2.5 mm
Connection threadR 1/4"
Part No.-
TypeKFG2T0425-02
€ 42,68
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 3 weeks
Item No.: 973032040301
Type
Hose outer diameter4 mm
Hose inner diameter3 mm
Connection threadR 1/8"
Part No.-
TypeKFG2T0403-01
€ 38,79
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 3 weeks
Item No.: 973032040302
Type
Hose outer diameter4 mm
Hose inner diameter3 mm
Connection threadR 1/4"
Part No.-
TypeKFG2T0403-02
€ 42,68
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 6 weeks
Item No.: 973032060401
Type
Hose outer diameter6 mm
Hose inner diameter4 mm
Connection threadR 1/8"
Part No.-
TypeKFG2T0604-01
€ 34,21
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 973000765826
Type
Hose outer diameter6 mm
Hose inner diameter4 mm
Connection threadR 1/4"
Part No.00765826
TypeKFG2T0604-02
€ 37,37
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 973032080601
Type
Hose outer diameter8 mm
Hose inner diameter6 mm
Connection threadR 1/8"
Part No.-
TypeKFG2T0806-01
€ 42,19
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 973032080602
Type
Hose outer diameter8 mm
Hose inner diameter6 mm
Connection threadR 1/4"
Part No.-
TypeKFG2T0806-02
€ 42,19
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 973032080603
Type
Hose outer diameter8 mm
Hose inner diameter6 mm
Connection threadR 3/8"
Part No.-
TypeKFG2T0806-03
€ 45,98
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 3 weeks
Item No.: 973032107502
Type
Hose outer diameter10 mm
Hose inner diameter7.5 mm
Connection threadR 1/4"
Part No.-
TypeKFG2T1075-02
€ 45,49
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 6 weeks
Item No.: 973032107503
Type
Hose outer diameter10 mm
Hose inner diameter7.5 mm
Connection threadR 3/8"
Part No.-
TypeKFG2T1075-03
€ 56,32
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 6 weeks
Item No.: 973032107504
Type
Hose outer diameter10 mm
Hose inner diameter7.5 mm
Connection threadR 1/2"
Part No.-
TypeKFG2T1075-04
€ 56,32
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 3 weeks
Item No.: 973032100802
Type
Hose outer diameter10 mm
Hose inner diameter8 mm
Connection threadR 1/4"
Part No.-
TypeKFG2T1008-02
€ 45,49
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 973032100803
Type
Hose outer diameter10 mm
Hose inner diameter8 mm
Connection threadR 3/8"
Part No.-
TypeKFG2T1008-03
€ 56,32
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 3 weeks
Item No.: 973032100804
Type
Hose outer diameter10 mm
Hose inner diameter8 mm
Connection threadR 1/2"
Part No.-
TypeKFG2T1008-04
€ 56,32
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 3 weeks
Item No.: 973032120902
Type
Hose outer diameter12 mm
Hose inner diameter9 mm
Connection threadR 1/4"
Part No.-
TypeKFG2T1209-02
€ 59,66
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 6 weeks
Item No.: 973032120903
Type
Hose outer diameter12 mm
Hose inner diameter9 mm
Connection threadR 3/8"
Part No.-
TypeKFG2T1209-03
€ 59,66
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 973032120904
Type
Hose outer diameter12 mm
Hose inner diameter9 mm
Connection threadR 1/2"
Part No.-
TypeKFG2T1209-04
€ 74,07
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 3 weeks
Item No.: 973032121002
Type
Hose outer diameter12 mm
Hose inner diameter10 mm
Connection threadR 1/4"
Part No.-
TypeKFG2T1210-02
€ 59,66
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 973032121003
Type
Hose outer diameter12 mm
Hose inner diameter10 mm
Connection threadR 3/8"
Part No.-
TypeKFG2T1210-03
€ 59,66
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 3 weeks
Item No.: 973032121004
Type
Hose outer diameter12 mm
Hose inner diameter10 mm
Connection threadR 1/2"
Part No.-
TypeKFG2T1210-04
€ 74,07
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 3 weeks
Item No.: 973032161303
Type
Hose outer diameter16 mm
Hose inner diameter13 mm
Connection threadR 3/8"
Part No.-
TypeKFG2T1613-03
€ 88,80
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 7-10 working days
Item No.: 973032161304
Type
Hose outer diameter16 mm
Hose inner diameter13 mm
Connection threadR 1/2"
Part No.-
TypeKFG2T1613-04
€ 95,25
Price incl. VAT
plus € 29,00 shipping costs
Delivery time 6 weeks
