Product Description

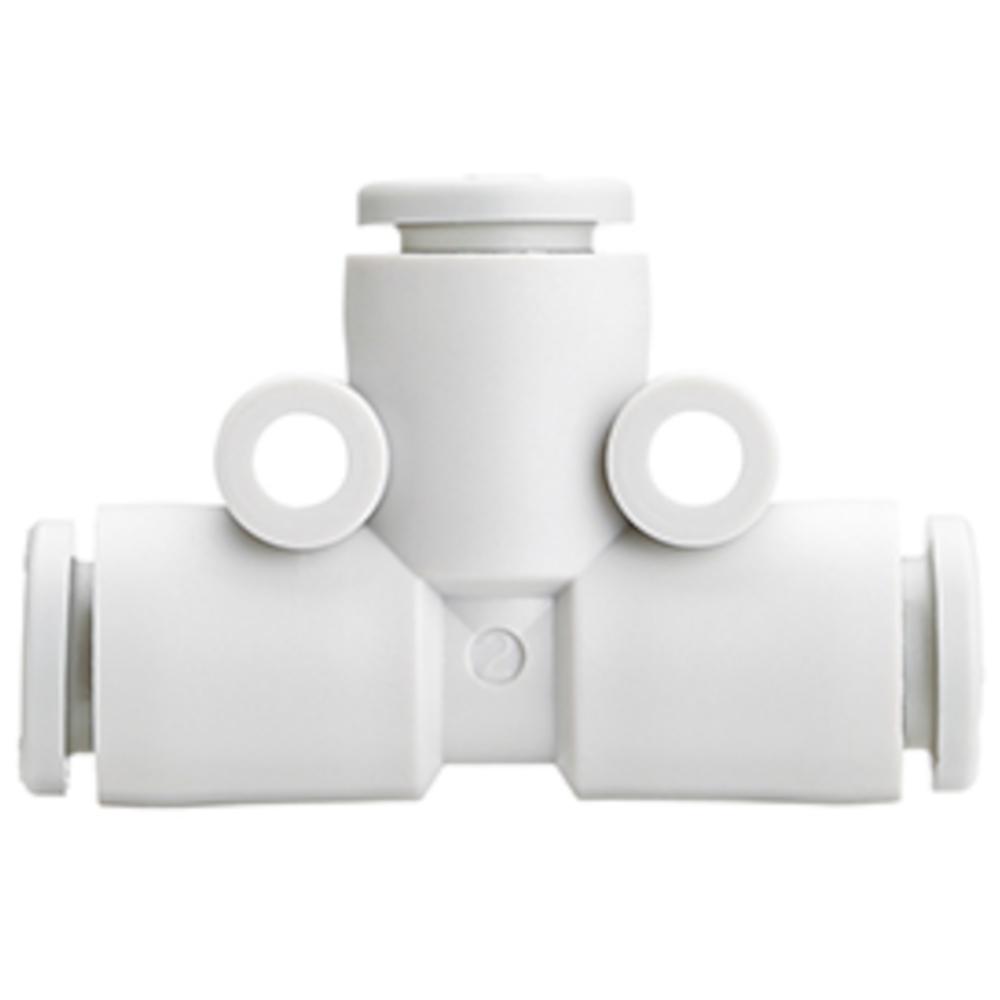

- The SMC KQ2T T-connector is used to connect pneumatic hoses of the same size in both 90° directions.
- It is used in automation technology, mechanical engineering and in pneumatic control and supply systems where several consumers or components need to be supplied in parallel.
- They are particularly advantageous for use in modular systems where space-saving and flexible compressed air distribution is required.
- The tool-free plug-in assembly allows for quick adjustments and maintenance whilst the system is in operation.
- The SMC KQ2T T-shaped connector comprises a PBT body and POM retaining rings.
- It has three hose inlets of the same size.
- The space-saving design makes them easy to use even where installation space is limited in complex systems.
- The precision manufacturing ensures consistently secure and leak-proof connections, even when the hoses are frequently reconnected.
- Housing material – PBT
- Material of pressure ring – POM
- Medium – Compressed air/water
- Operating pressure range: -0.1 to 10 bar
- Test pressure – 30 bar
- Ambient and fluid temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
- Suitable hose outer diameter – 1/8" to 3/16"
- Min. connection size – 2.5 to 3.5 mm
- Depth – 7.1 to 9.1 mm
- Width – 18.5 to 20.3 mm
- Length – 29.8 to 31.4 mm
- Weight – 2.3 to 3.2 g
- Price per item
