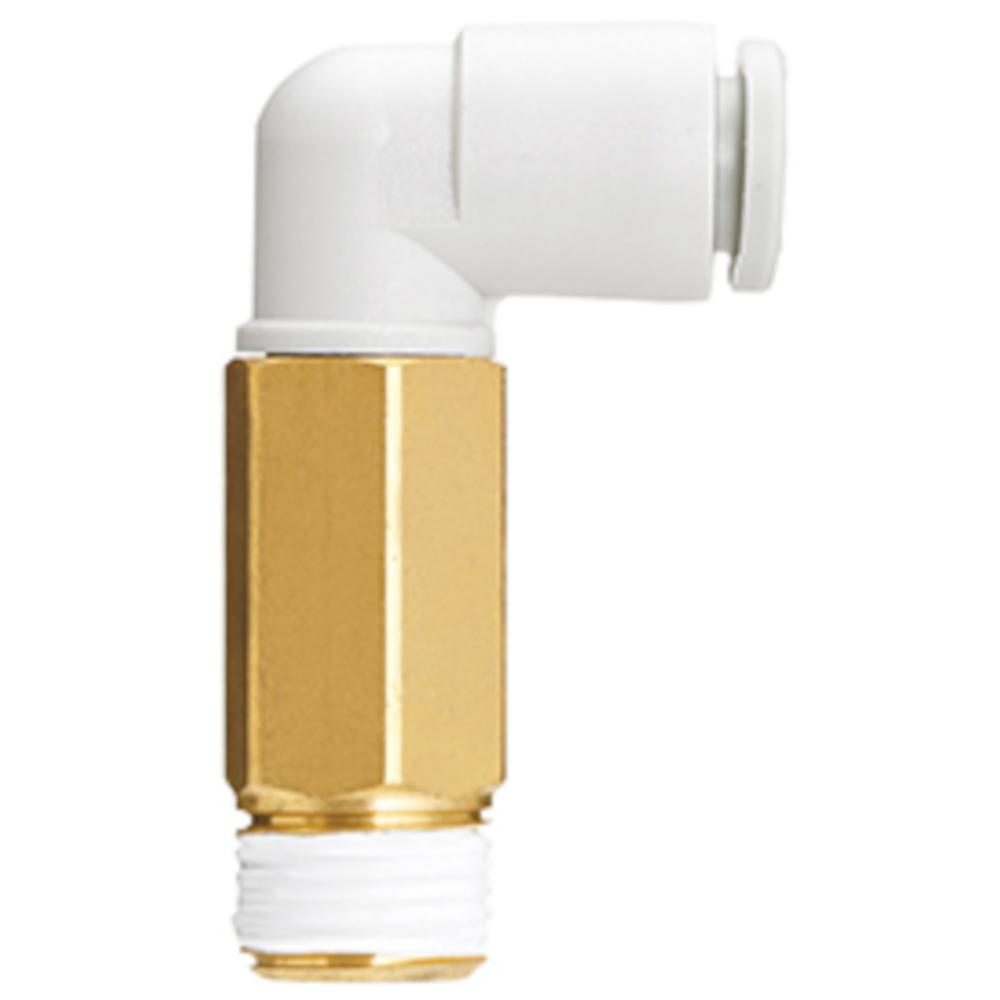

SMC high-angle screw-in elbow KQ2W – brass/PBT – with face seal – hose Ø 3.2 to 16 mm – R thread – pack of 5 or 10 – price per piece
SMC high-angle screw-in elbow KQ2W – brass/PBT – with face seal – hose Ø 3.2 to 16 mm – R thread – pack of 5 or 10 – price per piece
Product Description
The SMC KQ2W threaded elbow is recommended for use in combination with the KQ2L threaded elbow to route the hoses at different levels, ensuring that the push-fit connections do not interfere with one another.
It is used in automation technology, mechanical engineering and in complex pneumatic control and supply systems.
The KQ2W helps to ensure space-saving and efficient hose routing in pneumatic systems.
Description
The high-pressure SMC KQ2W threaded elbow is made of brass and features a round pressure ring made of POM.
The 90° angle allows for optimised hose routing in confined installation spaces and where special routing is required.
The meticulous workmanship ensures a permanently tight and secure connection, even when the hoses are frequently reconnected.
Technical Data
Housing material – C3604, PBT
Material: Metal body (threaded part) – C3604
Collet material – 304 stainless steel
Guide material – 304 stainless steel
Material of pressure ring – POM
Seal material, O-ring – NBR
Medium – Compressed air/water
Operating pressure range – –0.1 to 10 bar
Test pressure – 30 bar
Ambient and fluid temperature – –5 to 60 °C, water 0 to 40 °C (not frozen)
