Item No.:
9799STOPVARK
Product Description

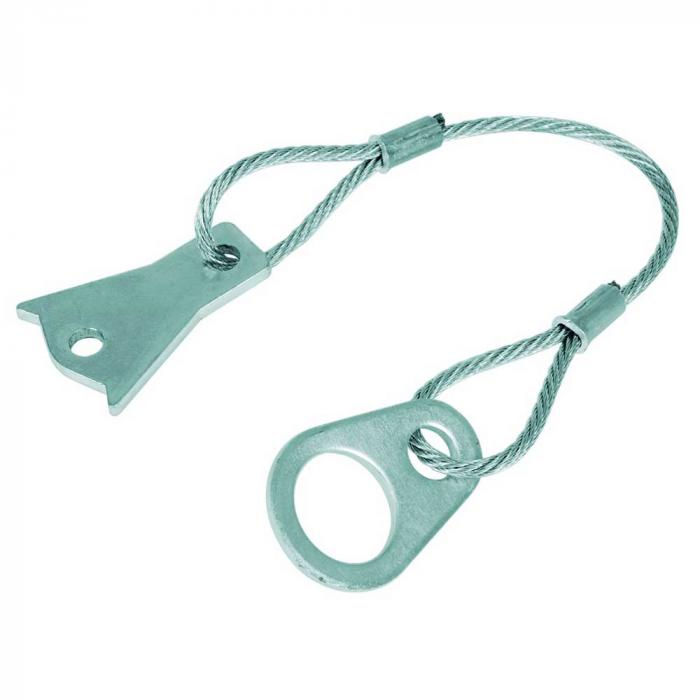

- The STOPFLEX complete system is ideal for hydraulic connections according to DIN standards, SAE flanges or various applications.
- The complete system is ideally suited for Indunorm Joint-Fit(R) press nipples and sockets.
- The STOPFLEX complete system ensures increased safety for people and systems.
- The hose clamp must be ordered separately and must match the outer diameter of the hose to be secured.
- The complete system offers a high level of restraint protection, as required by DIN EN ISO 4413 for protection against whipping hose lines.
- Wire rope length - 450 mm
- Material thickness of connecting plate - 4 mm
- Bore Ø for connection clamps - M8
- Bore Ø for screw connection - 13 mm
