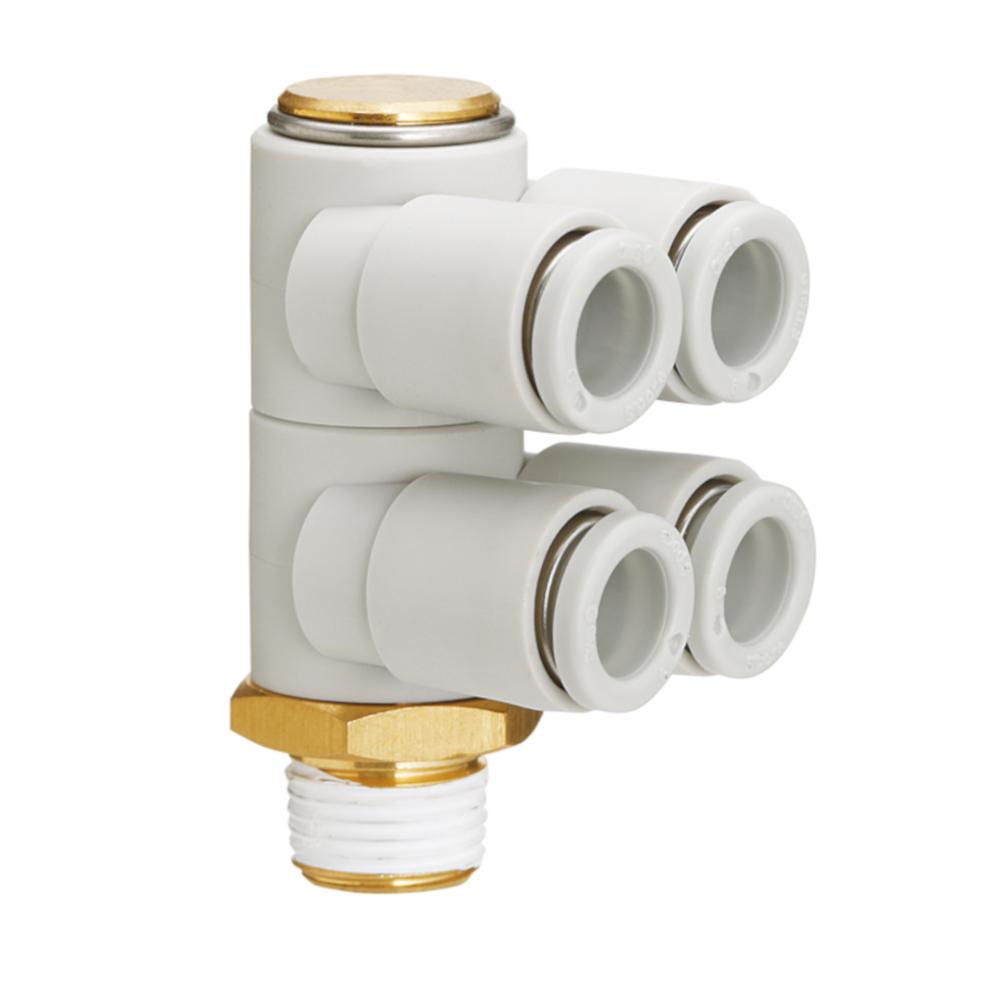

Screw-in angle 4-way KQ2ZD - brass/PBT - with thread seal - hose Ø 4 to 12 mm - male thread 1/8" to 1/2" - pack of 5 or 10 pieces - price per piece
| From € 12,96 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The 4-way screw-in angle KQ2ZD is used to connect several pneumatic hoses to a common threaded connection in a space-saving manner.
- It is used in automation technology, mechanical engineering and in pneumatic control and supply systems in which several consumers must be supplied simultaneously.
- It is particularly advantageous for use in compact system layouts where several lines are bundled together centrally.
- The KQ2ZD enables efficient, flexible and safe installation of complex pneumatic systems.
- The KQ2ZD screw-in angle is made of high-quality materials such as POM for the pressure ring and precision-machined metal components made of brass or chemically nickel-plated brass.
- The connection thread is equipped with a thread seal.
- Its design allows four pneumatic hoses to be connected to a common threaded connection and enables several lines to be bundled together to save space.
- The swivel design allows flexible alignment of the individual hose connections during installation.
- Precise manufacturing ensures permanently secure and tight connections, even when the hoses are frequently reconnected.
- Material - brass / PBT
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 40 °C
- Operating pressure - -0.1 to 1 MPa
- Swivel range - 360°
- Connection thread - R 1/8" to R 1/2"
- Suitable hose outer diameter - 4 to 12 mm
- Media - compressed air, water
- Wrench size - 14 to 26 mm
- Width - 25.5 to 39.8 mm
- Depth - 16.4 to 37 mm
- Height - 39 to 66 mm
- Weight - 21.3 to 124.7 g
- Minimum order quantity - 5 or 10 pieces
- Price per piece
Versions: (32)
| Article No. | Material | Hose outer diameter | Connection thread | PU | Price incl. VAT | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
973000984545 | Brass | 4 mm | R 1/8" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984546 | Nickel-plated brass | 4 mm | R 1/8" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984547 | Brass | 4 mm | R 1/4" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984548 | Nickel-plated brass | 4 mm | R 1/4" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984549 | Brass | 4 mm | R 3/8" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984550 | Nickel-plated brass | 4 mm | R 3/8" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984551 | Brass | 6 mm | R 1/8" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984552 | Nickel-plated brass | 6 mm | R 1/8" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000974265 | Brass | 6 mm | R 1/4" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984553 | Nickel-plated brass | 6 mm | R 1/4" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984554 | Brass | 6 mm | R 3/8" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984555 | Nickel-plated brass | 6 mm | R 3/8" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984556 | Brass | 8 mm | R 1/8" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984557 | Nickel-plated brass | 8 mm | R 1/8" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984558 | Brass | 8 mm | R 1/4" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000981666 | Nickel-plated brass | 8 mm | R 1/4" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984559 | Brass | 8 mm | R 3/8" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984560 | Nickel-plated brass | 8 mm | R 3/8" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984561 | Brass | 8 mm | R 1/2" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984562 | Nickel-plated brass | 8 mm | R 1/2" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984563 | Brass | 10 mm | R 1/4" | 5 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984564 | Nickel-plated brass | 10 mm | R 1/4" | 5 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984565 | Brass | 10 mm | R 3/8" | 5 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984566 | Nickel-plated brass | 10 mm | R 3/8" | 5 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984567 | Brass | 10 mm | R 1/2" | 5 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984568 | Nickel-plated brass | 10 mm | R 1/2" | 5 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984569 | Brass | 12 mm | R 1/4" | 5 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984570 | Nickel-plated brass | 12 mm | R 1/4" | 5 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984571 | Brass | 12 mm | R 3/8" | 5 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984572 | Nickel-plated brass | 12 mm | R 3/8" | 5 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984573 | Brass | 12 mm | R 1/2" | 5 pieces |
|
|||||||||
|
|||||||||||||||
|
973000984574 | Nickel-plated brass | 12 mm | R 1/2" | 5 pieces |
|
|||||||||
|
|||||||||||||||
