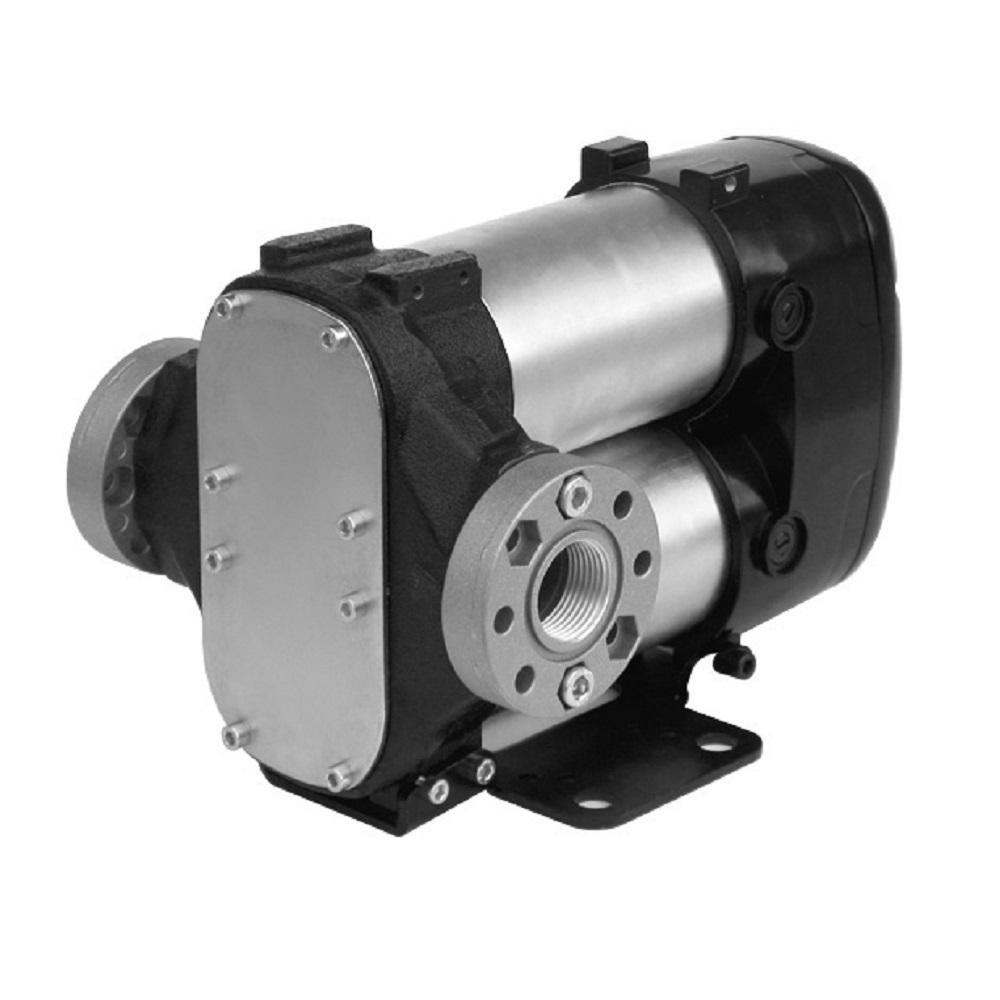

Self-priming vane pump BI 100 Diesel pump - 2000 min-1 - 24 V, 0.5 kW - 21 A - with on / off switch\n

486,30
Price incl. VAT
plus 29,00 shipping costs
Delivery time 7-10 working days

Do you have any questions?
We would like to assist you!

Item No.:
251012070700
Product Description
  • The BI 100 self-priming vane pump is ideal as an initial installation for construction machinery.
Description
  • The pump is dry self-priming and has a pressure relief valve (bypass).
Technical Data
  • max. flow rate - 85 l/min
  • max. flow rate - 5.1 m³/h
  • max. delivery pressure - 1.2 bar
  • Input/output - 1 inch iG flange
  • Pump housing material - cast iron
  • Rated voltage - (DC) 24 V
  • Rated power - 0.5 kW
  • Rated current - (DC) 21 A
  • max. speed - 2000 min-1
  • max. switch-on time - 30 min.
  • Protection class - IP55
  • Switch - On/Off
  • Packaging dimensions - 345 x 175 x 255
  • Weight - 9.9 kg
