Product Description
- The AV series soft start valves are used for the smooth start-up of pneumatic systems in order to prevent pressure surges and system stress.
- They are suitable for machines with high safety requirements during commissioning and for modular connection to maintenance units.
- Typical areas of application are mechanical engineering, industrial automation and assembly technology.
- The soft start valve in a lockable slot design allows for a one-time adjustment with permanently secure fixation.
- This makes it particularly suitable for use in series machines, production lines, machines with strong vibration or movement, safety-critical applications, clean rooms or in automated systems where no operator intervention is required.
- The soft start valves in the AV series consist of an aluminium housing with a corrosion-protected surface and an integrated damping unit.
- An electrically controlled 3/2-way solenoid valve controls the pressure supply and releases it with a delay.
- A non-return valve ensures unimpeded pressure reduction when switching off.

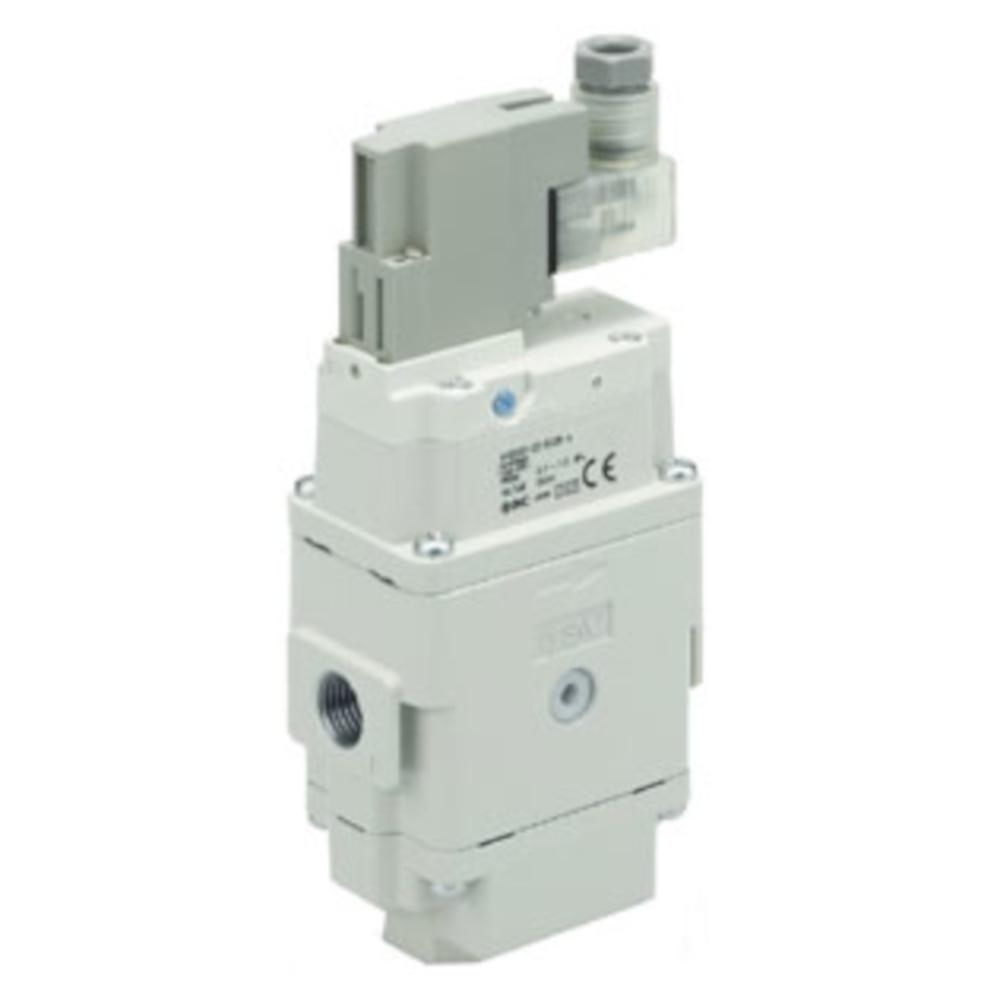

- The AV-YB soft start valve in straight design is equipped with a DIN terminal with plug and optionally with a built-in silencer.
- Material Valve body, top and bottom covers – die-cast aluminium
- Material Piston, needle valve and sealing plug – POM, NBR
- Medium - Compressed air
- Ambient and medium temperature - 0 to 50°C (To prevent freezing at low temperatures, the product should be operated with dry compressed air.)
- Test pressure - 1.5 MPa
- Operating pressure range - 0.2 to 1.0 MPa
- Coil voltage - 24 V DC
- Permissible voltage tolerance - ±10% of nominal voltage
- Power consumption - 0.35 W
- Flow rate – 2433 to 11908 l/min
- Pressure gauge connection size - 1/8"
- Connection thread - G 1/4" to 1"
- Protection class - IP65
- Width - 66 to 128 mm
- Depth - 20 to 37 mm
- Height (without silencer) – 154 to 178 mm
- Weight - 430 to 1300 g
