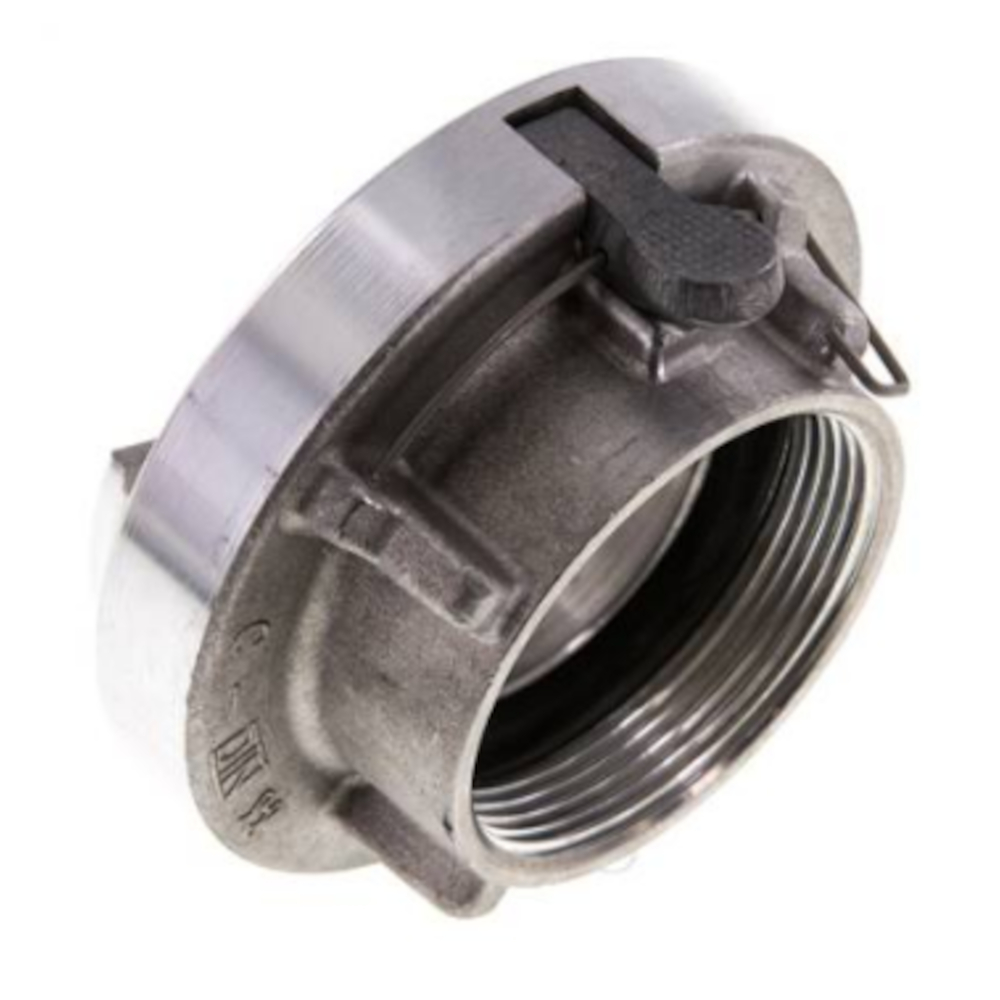

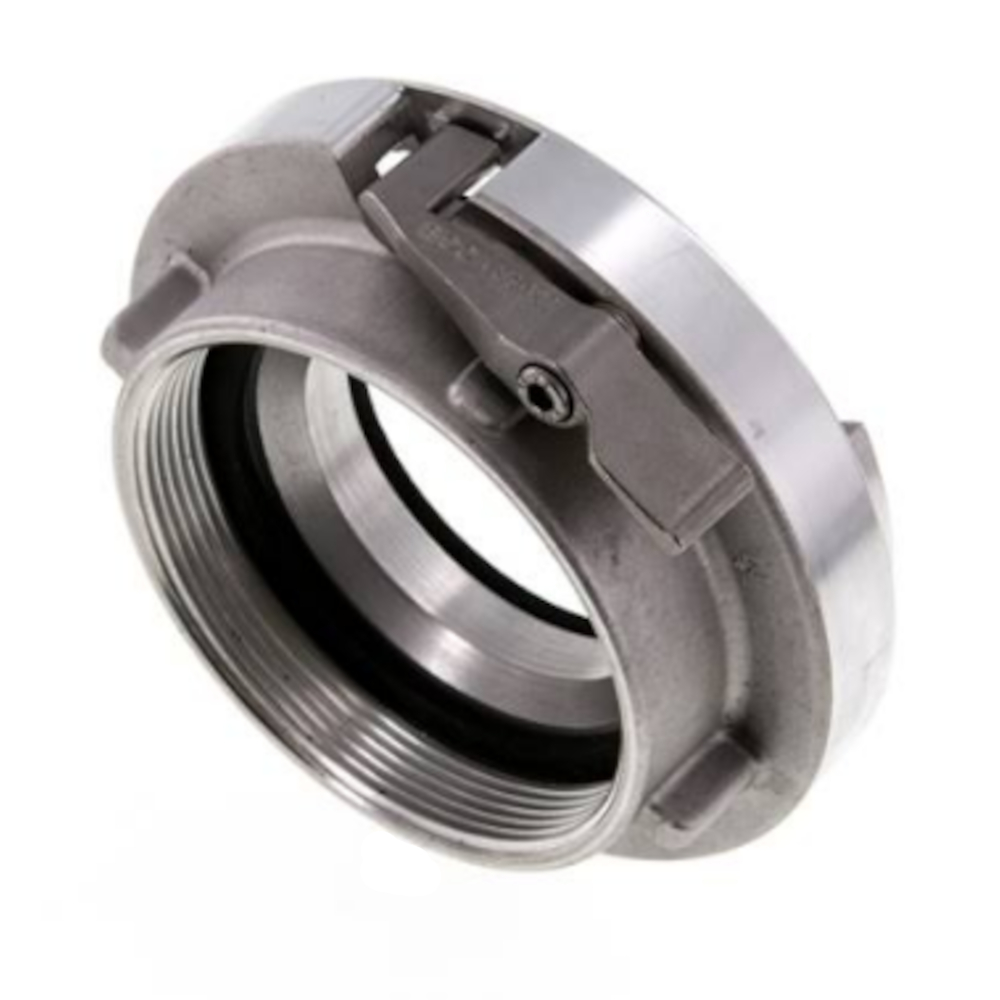

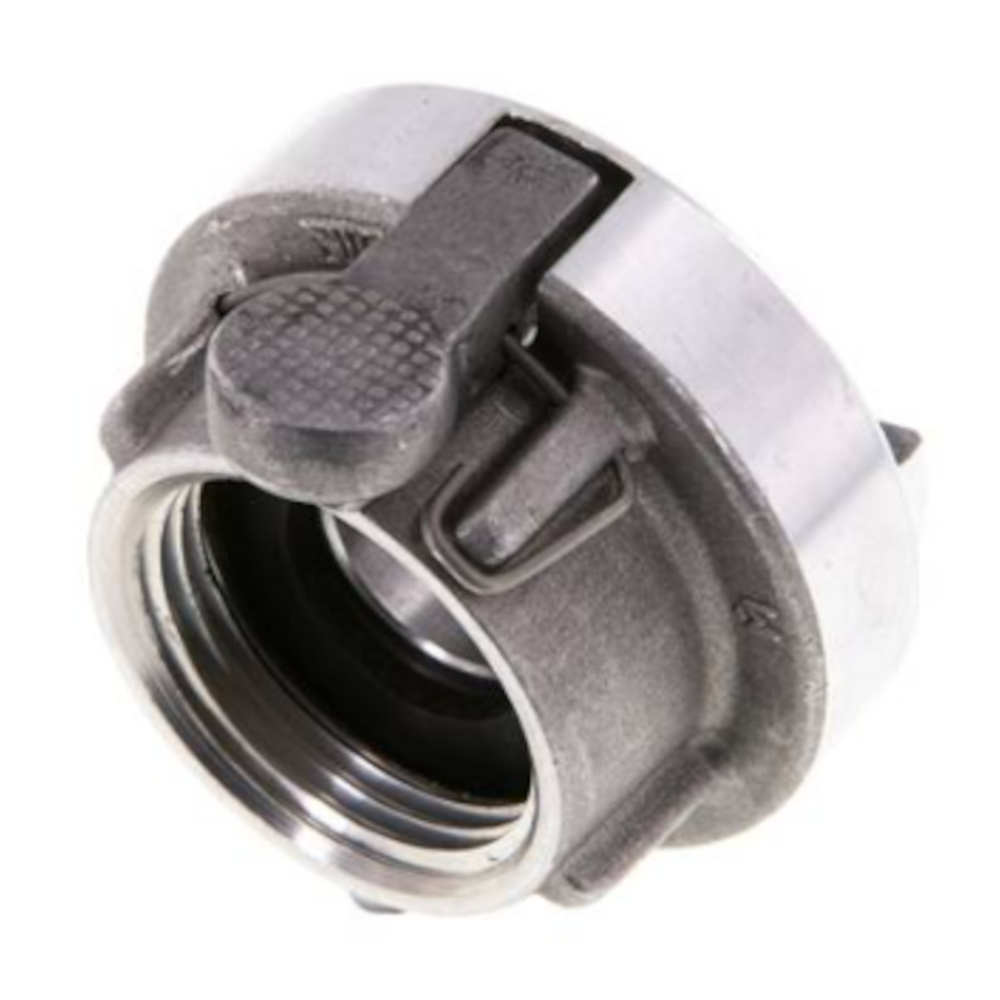

Storz rigid coupling with lock - with IG - frame size DIN 110 / A
| From € 125,86 |
| Price incl. VAT |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- for joining or connecting of hoses with large diameters
- additional protection through spring-loaded pawl which is arranged radially
- Quick connect and secure through 120-degree rotation
- to solve must be manually unlocked pawl
- Industry, fire fighting, refineries, agriculture, construction, marine, military and civil protection
- Size - according to DIN 110 / A
- Cam distance (in) - 133 mm
- Material coupling - forged aluminum
- Sealing material - NBR
- Temperature range - -40 ° C to +110 ° C
- Pressure range - up to 16 bar
Versions: (2)
| Article No. | Price incl. VAT | ||||||
|---|---|---|---|---|---|---|---|
|
975106040400 | Thread G 4"inner |
|
||||
|
|||||||
|
|
975106040412 | Thread G 4 1/2"inner |
|
||||
|
|||||||
Ratings
No evaluation has been given
