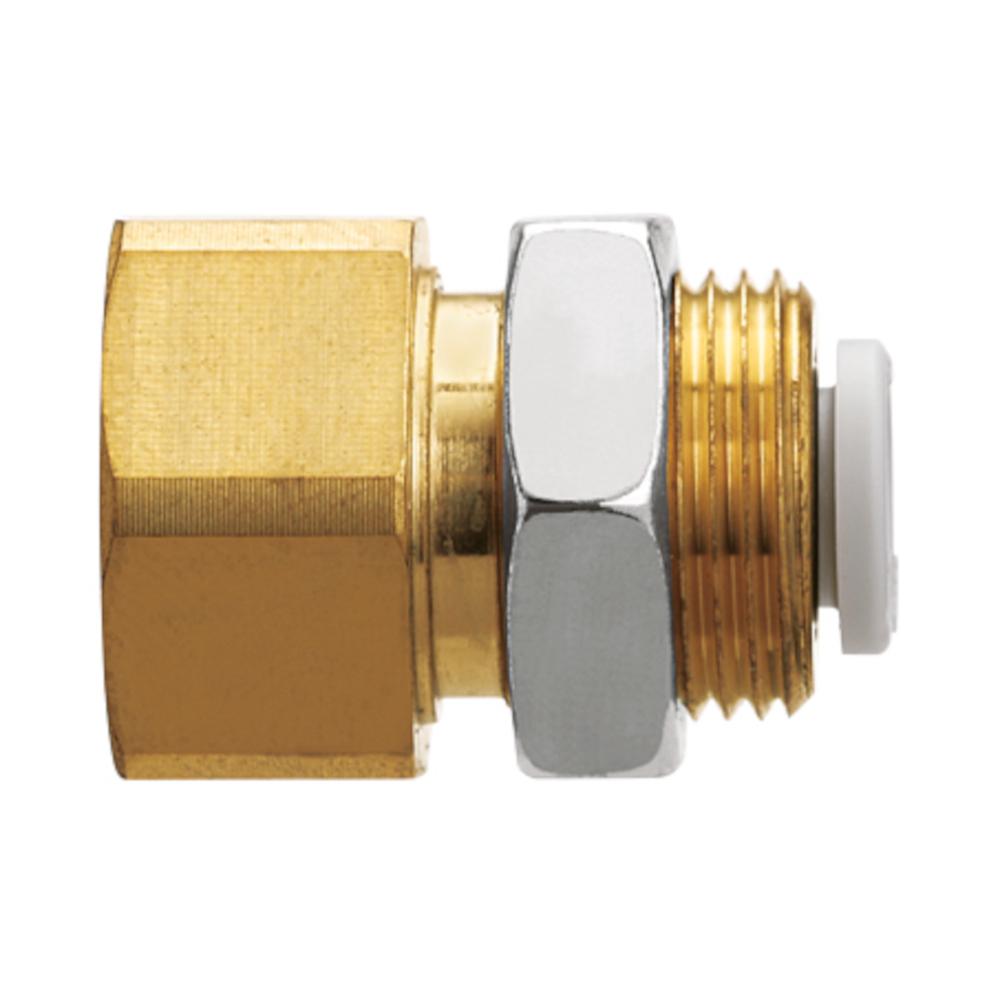

Straight Schott push-in fitting KQ2E - stainless steel or brass/PBT - oval pressure ring - hose Ø 3.2 to 6 mm - female thread Rc 1/8" to 3/8" - pack of 2 or 10 pieces - price per piece
| € 4,78 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 47,78)
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
973001558843
Type
| Material | Brass |
| Outer hose diameter | 6 mm |
| Internal thread | Rc 1/8" |
| External thread | M14 x 1 |
| VE | 10 pieces |
Product Description
- The straight Schott plug-in fitting KQ2E is used to route pneumatic hoses through housings, panels or walls and to create a secure, tight connection.
- It is used in automation technology, mechanical engineering and in pneumatic control and supply systems where hose lines have to be laid through sealed housings or mounting plates.
- They are particularly advantageous for space-saving installations where secure and clean passage of cables is required, along with stable fastening.
- The tool-free plug-in installation also facilitates maintenance and adjustments during operation.
- The KQ2E straight Schott plug-in fitting is made of high-quality materials such as POM for the pressure ring and precision-machined metal components made of brass, chemically nickel-plated brass or 303 stainless steel.
- The connection thread is supplied without factory thread sealing.
- The oval pressure ring significantly reduces the effort required to insert and remove the hoses and ensures quick, tool-free installation.
- It is easily secured by screwing on the cap nut, which ensures stable and secure fastening.
- The precise workmanship guarantees permanently tight and reliable connections, even when the hoses are frequently reconnected.
- Material - stainless steel, brass or nickel-plated brass/PBT
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 40 °C
- Operating pressure - -0.1 to 1 MPa
- Internal thread - Rc 1/8" to Rc 3/8"
- External thread - M12 x 1 or M14 x 1
- Suitable hose outer diameter - 3.2 to 6 mm
- Max. thickness of mounting plate - 7 mm
- Mounting hole - 13 or 15 mm
- Media – compressed air, water
- Wrench size - 14 to 19 mm
- Length - 23.6 to 30.7 mm
- Weight - 28.9 to 35.9 g
- Minimum order - 2 or 10 pieces
- Price per item
Versions: (17)
Narrow down your selection
Material
Outer hose diameter
Internal thread
External thread
VE
Item No.: 973001558851
Type
| Material | Brass |
| Outer hose diameter | 3.2 mm |
| Internal thread | Rc 1/4" |
| External thread | M12 x 1 |
| VE | 10 pieces |
| € 6,93 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 69,26)
Item No.: 973001558852
Type
| Material | Nickel-plated brass |
| Outer hose diameter | 3.2 mm |
| Internal thread | Rc 1/4" |
| External thread | M12 x 1 |
| VE | 10 pieces |
| € 7,61 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 76,11)
Item No.: 973001558837
Type
| Material | Brass |
| Outer hose diameter | 4 mm |
| Internal thread | Rc 1/8" |
| External thread | M12 x 1 |
| VE | 10 pieces |
| € 5,22 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 52,22)
Item No.: 973001558838
Type
| Material | Nickel-plated brass |
| Outer hose diameter | 4 mm |
| Internal thread | Rc 1/8" |
| External thread | M12 x 1 |
| VE | 10 pieces |
| € 5,63 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 56,30)
Item No.: 973001581013
Type
| Material | Stainless steel |
| Outer hose diameter | 4 mm |
| Internal thread | Rc 1/8" |
| External thread | M12 x 1 |
| VE | 2 pieces |
| € 17,35 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 2 (= € 34,70)
Item No.: 973001558839
Type
| Material | Brass |
| Outer hose diameter | 4 mm |
| Internal thread | Rc 1/4" |
| External thread | M12 x 1 |
| VE | 10 pieces |
| € 5,22 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 52,22)
Item No.: 973001558840
Type
| Material | Nickel-plated brass |
| Outer hose diameter | 4 mm |
| Internal thread | Rc 1/4" |
| External thread | M12 x 1 |
| VE | 10 pieces |
| € 5,57 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 55,74)
Item No.: 973001581014
Type
| Material | Stainless steel |
| Outer hose diameter | 4 mm |
| Internal thread | Rc 1/4" |
| External thread | M12 x 1 |
| VE | 2 pieces |
| € 19,03 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 2 (= € 38,05)
Item No.: 973001558843
Type
| Material | Brass |
| Outer hose diameter | 6 mm |
| Internal thread | Rc 1/8" |
| External thread | M14 x 1 |
| VE | 10 pieces |
| € 4,78 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 47,78)
Item No.: 973001558844
Type
| Material | Nickel-plated brass |
| Outer hose diameter | 6 mm |
| Internal thread | Rc 1/8" |
| External thread | M14 x 1 |
| VE | 10 pieces |
| € 5,11 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 51,11)
Item No.: 973001581015
Type
| Material | Stainless steel |
| Outer hose diameter | 6 mm |
| Internal thread | Rc 1/8" |
| External thread | M14 x 1 |
| VE | 2 pieces |
| € 18,92 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 2 (= € 37,85)
Item No.: 973001558845
Type
| Material | Brass |
| Outer hose diameter | 6 mm |
| Internal thread | Rc 1/4" |
| External thread | M14 x 1 |
| VE | 10 pieces |
| € 4,78 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 47,78)
Item No.: 973001558846
Type
| Material | Nickel-plated brass |
| Outer hose diameter | 6 mm |
| Internal thread | Rc 1/4" |
| External thread | M14 x 1 |
| VE | 10 pieces |
| € 5,17 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 51,67)
Item No.: 973001581016
Type
| Material | Stainless steel |
| Outer hose diameter | 6 mm |
| Internal thread | Rc 1/4" |
| External thread | M14 x 1 |
| VE | 2 pieces |
| € 18,92 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 2 (= € 37,85)
Item No.: 973001558847
Type
| Material | Brass |
| Outer hose diameter | 6 mm |
| Internal thread | Rc 3/8" |
| External thread | M14 x 1 |
| VE | 10 pieces |
| € 5,57 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 55,74)
Item No.: 973001558848
Type
| Material | Nickel-plated brass |
| Outer hose diameter | 6 mm |
| Internal thread | Rc 3/8" |
| External thread | M14 x 1 |
| VE | 10 pieces |
| € 6,07 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 60,74)
Item No.: 973001581017
Type
| Material | Stainless steel |
| Outer hose diameter | 6 mm |
| Internal thread | Rc 3/8" |
| External thread | M14 x 1 |
| VE | 2 pieces |
| € 20,65 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 2 (= € 41,30)
