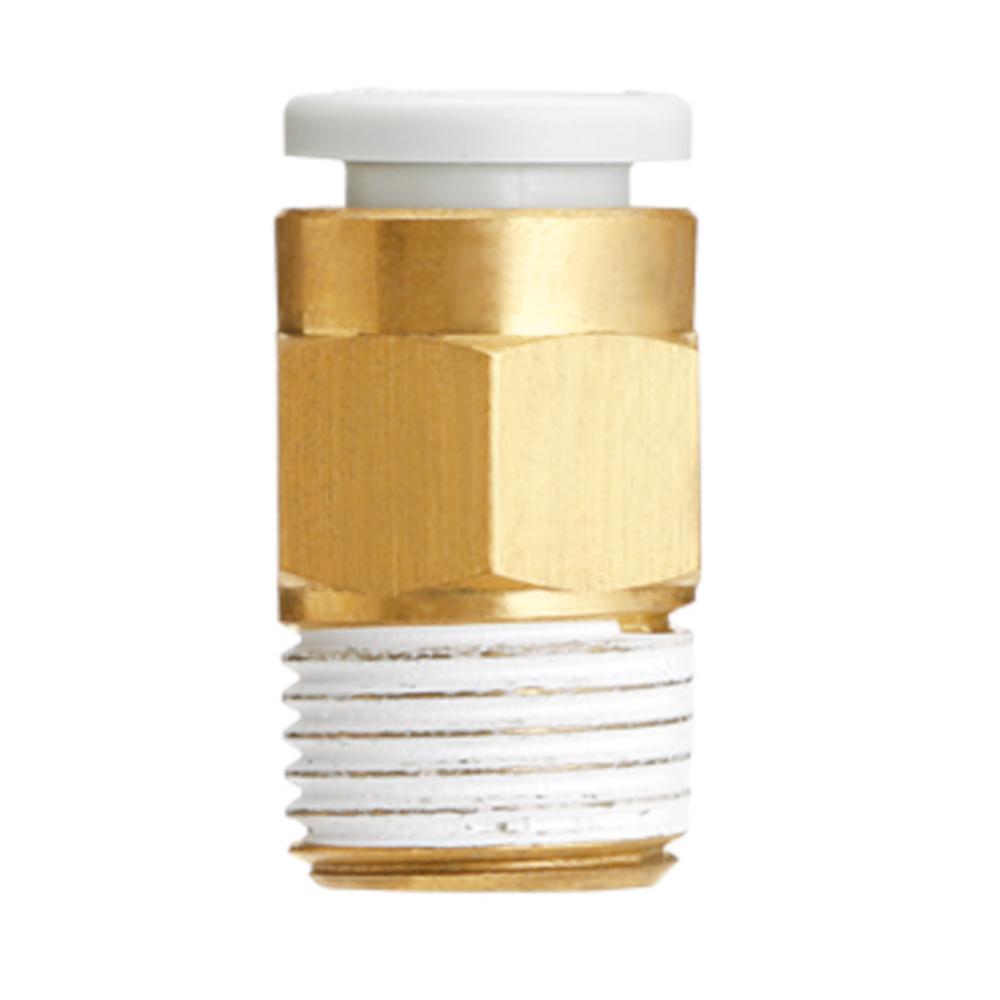

Straight plug-in screw connection KQ2H - stainless steel or brass/PBT - without seal - oval pressure ring - hose Ø 4 to 6 mm - male thread 1/8" to 3/8" - pack of 2 or 10 pieces - price per piece
| € 1,43 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 14,26)
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
973001846373
Type
| Material | Brass |
| Hose outer diameter | 4 mm |
| Connection thread | R 1/8" |
| PU | 10 pieces |
Product Description
- The straight plug-in screw connection KQ2H is used to connect pneumatic hoses directly and space-savingly to a thread.
- It is used in automation technology, mechanical engineering and in pneumatic control and supply systems where straight hose guides without deflection are required.
- They are particularly advantageous for use in compact system layouts and control blocks where a simple and direct connection is required.
- Tool-free plug-in assembly allows for quick and easy installation and maintenance.
- The KQ2H straight plug-in screw connection is made of high-quality materials such as POM for the pressure ring and precision-machined metal components made of brass, chemically nickel-plated brass or 303 stainless steel.
- The connection thread is supplied without factory thread sealing.
- Its straight design allows space-saving connection of pneumatic hoses to an internal thread.
- The oval pressure ring significantly reduces the force required to insert and remove the hoses and allows quick, tool-free installation.
- The compact design facilitates installation even in confined spaces.
- The precise workmanship guarantees permanently tight and secure connections, even when the hoses are frequently reconnected.
- Material - stainless steel, brass or nickel-plated brass/PBT
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 40 °C
- Operating pressure - -0.1 to 1 MPa
- Connection thread - R 1/8" to R 3/8"
- Suitable hose outer diameter - 4 to 6 mm
- Media - compressed air, water
- Wrench size - 10 to 17 mm
- Length - 14 to 18.4 mm
- Weight - 5.6 to 24.5 g
- Minimum order quantity - 2 or 10 pieces
- Price per piece
Versions: (8)
Narrow down your selection
Material
Hose outer diameter
Connection thread
PU
| Article No. | Material | Hose outer diameter | Connection thread | PU | Price incl. VAT | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
973001846373 | Brass | 4 mm | R 1/8" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973001580829 | Stainless steel | 4 mm | R 1/8" | 2 pieces |
|
|||||||||
|
|||||||||||||||
|
973001580830 | Stainless steel | 4 mm | R 1/4" | 2 pieces |
|
|||||||||
|
|||||||||||||||
|
973001846365 | Brass | 6 mm | R 1/8" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973001753813 | Nickel-plated brass | 6 mm | R 1/8" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
973001580831 | Stainless steel | 6 mm | R 1/8" | 2 pieces |
|
|||||||||
|
|||||||||||||||
|
973001580832 | Stainless steel | 6 mm | R 1/4" | 2 pieces |
|
|||||||||
|
|||||||||||||||
|
973001580833 | Stainless steel | 6 mm | R 3/8" | 2 pieces |
|
|||||||||
|
|||||||||||||||
