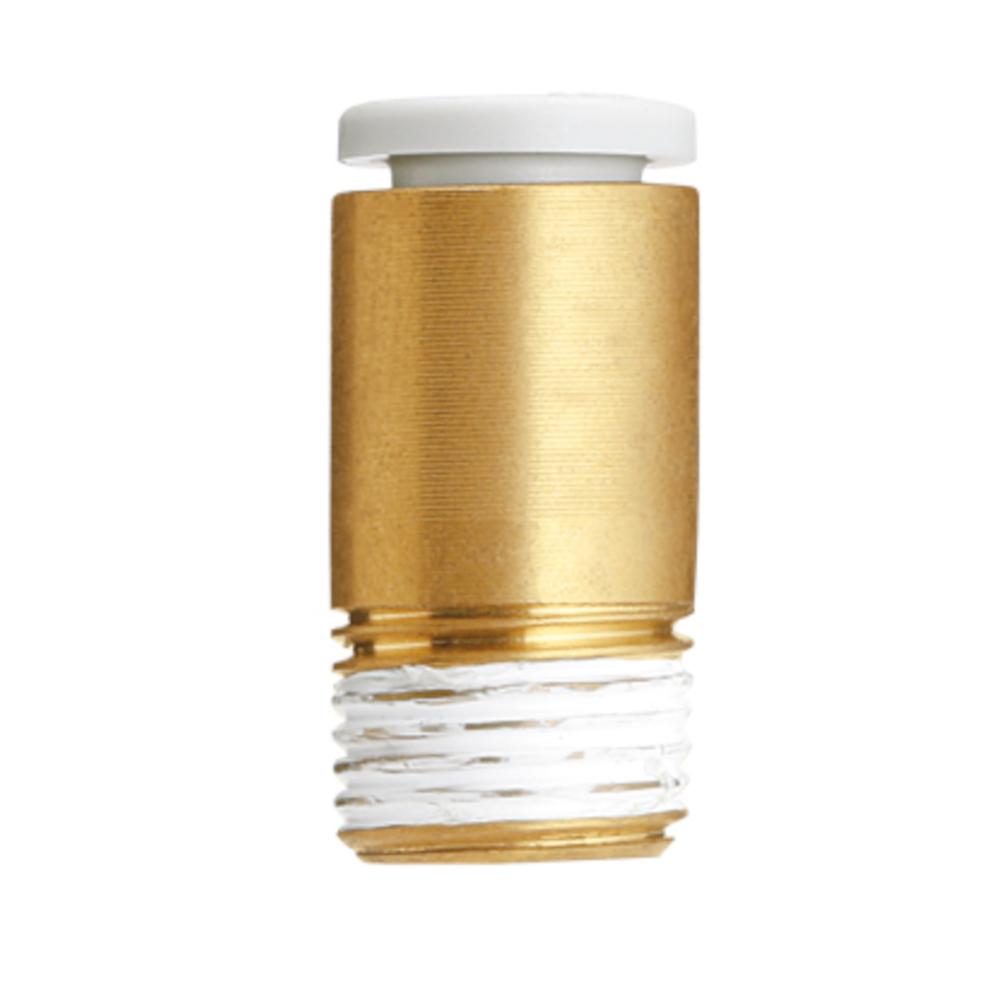

Straight plug-in screw connection with hexagon socket KQ2S - brass/PBT - flat seal - hose Ø 4 to 16 mm - male thread 1/8" to 1/2" - pack of 5 or 10 pieces - price per piece
| € 8,06 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 40,28)
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
973001162879
Type
| Material | Nickel-plated brass |
| Hose outer diameter | 16 mm |
| Connection thread | G 3/8" |
| PU | 5 pieces |
Product Description
- The straight plug-in screw connection KQ2S is used to connect pneumatic hoses to a thread in a space-saving and flexible manner, especially in confined installation situations.
- It is used in automation technology, mechanical engineering and in pneumatic control and supply systems where compact and flexible mounting options are required.
- They are particularly advantageous for use in machine housings, control blocks and switch cabinets where there is little space available for screw connections.
- Tool-free plug-in assembly enables quick and easy installation and maintenance.
- The straight plug-in screw connection KQ2S consists of precision-manufactured metal components made of brass or chemically nickel-plated brass and has a POM pressure ring.
- The connection thread is equipped with a flat seal at the factory.
- Their compact, straight design enables space-saving connection of pneumatic hoses to a threaded connection.
- The integrated hexagon socket allows easy installation even in very tight installation spaces where conventional external hexagon screw connections cannot be used.
- The precise workmanship guarantees permanently secure and tight connections, even when the hoses are frequently reconnected.
- Material - brass or nickel-plated brass / PBT
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 40 °C
- Operating pressure - -0.1 to 1 MPa
- Connection thread - G 1/8" to G 1/2"
- Suitable hose outer diameter - 4 to 16 mm
- Media - compressed air, water
- Wrench size - 3 to 12 mm
- Length - 19.8 to 30.8 mm
- Weight - 9.5 to 45.8 g
- Minimum order quantity - 5 or 10 pieces
- Price per piece
Versions: (30)
Narrow down your selection
Material
Hose outer diameter
Connection thread
PU
Item No.: 973001162830
Type
| Material | Brass |
| Hose outer diameter | 4 mm |
| Connection thread | G 1/8" |
| PU | 10 pieces |
| € 2,67 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 26,67)
Item No.: 973001162831
Type
| Material | Nickel-plated brass |
| Hose outer diameter | 4 mm |
| Connection thread | G 1/8" |
| PU | 10 pieces |
| € 2,85 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 28,52)
Item No.: 973001162835
Type
| Material | Brass |
| Hose outer diameter | 6 mm |
| Connection thread | G 1/8" |
| PU | 10 pieces |
| € 2,80 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 27,96)
Item No.: 973001139938
Type
| Material | Nickel-plated brass |
| Hose outer diameter | 6 mm |
| Connection thread | G 1/8" |
| PU | 10 pieces |
| € 3,19 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 31,85)
Item No.: 973001160023
Type
| Material | Brass |
| Hose outer diameter | 6 mm |
| Connection thread | G 1/4" |
| PU | 10 pieces |
| € 2,98 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 29,81)
Item No.: 973001162836
Type
| Material | Nickel-plated brass |
| Hose outer diameter | 6 mm |
| Connection thread | G 1/4" |
| PU | 10 pieces |
| € 3,39 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 33,89)
Item No.: 973001162843
Type
| Material | Brass |
| Hose outer diameter | 8 mm |
| Connection thread | G 1/8" |
| PU | 10 pieces |
| € 3,09 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 30,93)
Item No.: 973001162844
Type
| Material | Nickel-plated brass |
| Hose outer diameter | 8 mm |
| Connection thread | G 1/8" |
| PU | 10 pieces |
| € 3,33 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 33,33)
Item No.: 973001162845
Type
| Material | Brass |
| Hose outer diameter | 8 mm |
| Connection thread | G 1/4" |
| PU | 10 pieces |
| € 3,17 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 31,67)
Item No.: 973001162846
Type
| Material | Nickel-plated brass |
| Hose outer diameter | 8 mm |
| Connection thread | G 1/4" |
| PU | 10 pieces |
| € 3,57 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 35,74)
Item No.: 973001162847
Type
| Material | Brass |
| Hose outer diameter | 8 mm |
| Connection thread | G 3/8" |
| PU | 10 pieces |
| € 3,63 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 36,30)
Item No.: 973001162848
Type
| Material | Nickel-plated brass |
| Hose outer diameter | 8 mm |
| Connection thread | G 3/8" |
| PU | 10 pieces |
| € 4,00 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 40,00)
Item No.: 973001162855
Type
| Material | Brass |
| Hose outer diameter | 10 mm |
| Connection thread | G 1/8" |
| PU | 5 pieces |
| € 4,52 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 22,59)
Item No.: 973001162856
Type
| Material | Nickel-plated brass |
| Hose outer diameter | 10 mm |
| Connection thread | G 1/8" |
| PU | 5 pieces |
| € 4,94 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 24,72)
Item No.: 973001162857
Type
| Material | Brass |
| Hose outer diameter | 10 mm |
| Connection thread | G 1/4" |
| PU | 5 pieces |
| € 4,30 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 21,48)
Item No.: 973001162858
Type
| Material | Nickel-plated brass |
| Hose outer diameter | 10 mm |
| Connection thread | G 1/4" |
| PU | 5 pieces |
| € 4,83 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 24,17)
Item No.: 973001162859
Type
| Material | Brass |
| Hose outer diameter | 10 mm |
| Connection thread | G 3/8" |
| PU | 5 pieces |
| € 4,52 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 22,59)
Item No.: 973001162860
Type
| Material | Nickel-plated brass |
| Hose outer diameter | 10 mm |
| Connection thread | G 3/8" |
| PU | 5 pieces |
| € 5,07 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 25,37)
Item No.: 973001162861
Type
| Material | Brass |
| Hose outer diameter | 10 mm |
| Connection thread | G 1/2" |
| PU | 5 pieces |
| € 5,56 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 27,78)
Item No.: 973001162862
Type
| Material | Nickel-plated brass |
| Hose outer diameter | 10 mm |
| Connection thread | G 1/2" |
| PU | 5 pieces |
| € 6,50 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 32,50)
Item No.: 973001146376
Type
| Material | Brass |
| Hose outer diameter | 12 mm |
| Connection thread | G 1/4" |
| PU | 5 pieces |
| € 5,35 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 26,76)
Item No.: 973001162867
Type
| Material | Nickel-plated brass |
| Hose outer diameter | 12 mm |
| Connection thread | G 1/4" |
| PU | 5 pieces |
| € 5,83 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 29,17)
Item No.: 973001162868
Type
| Material | Brass |
| Hose outer diameter | 12 mm |
| Connection thread | G 3/8" |
| PU | 5 pieces |
| € 5,48 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 27,41)
Item No.: 973001162869
Type
| Material | Nickel-plated brass |
| Hose outer diameter | 12 mm |
| Connection thread | G 3/8" |
| PU | 5 pieces |
| € 6,19 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 30,93)
Item No.: 973001162870
Type
| Material | Brass |
| Hose outer diameter | 12 mm |
| Connection thread | G 1/2" |
| PU | 5 pieces |
| € 5,96 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 29,82)
Item No.: 973001162871
Type
| Material | Nickel-plated brass |
| Hose outer diameter | 12 mm |
| Connection thread | G 1/2" |
| PU | 5 pieces |
| € 6,91 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 34,54)
Item No.: 973001162878
Type
| Material | Brass |
| Hose outer diameter | 16 mm |
| Connection thread | G 3/8" |
| PU | 5 pieces |
| € 6,98 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 34,91)
Item No.: 973001162879
Type
| Material | Nickel-plated brass |
| Hose outer diameter | 16 mm |
| Connection thread | G 3/8" |
| PU | 5 pieces |
| € 8,06 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 40,28)
Item No.: 973001162880
Type
| Material | Brass |
| Hose outer diameter | 16 mm |
| Connection thread | G 1/2" |
| PU | 5 pieces |
| € 6,80 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 33,98)
Item No.: 973001162881
Type
| Material | Nickel-plated brass |
| Hose outer diameter | 16 mm |
| Connection thread | G 1/2" |
| PU | 5 pieces |
| € 7,80 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 5 (= € 38,98)
