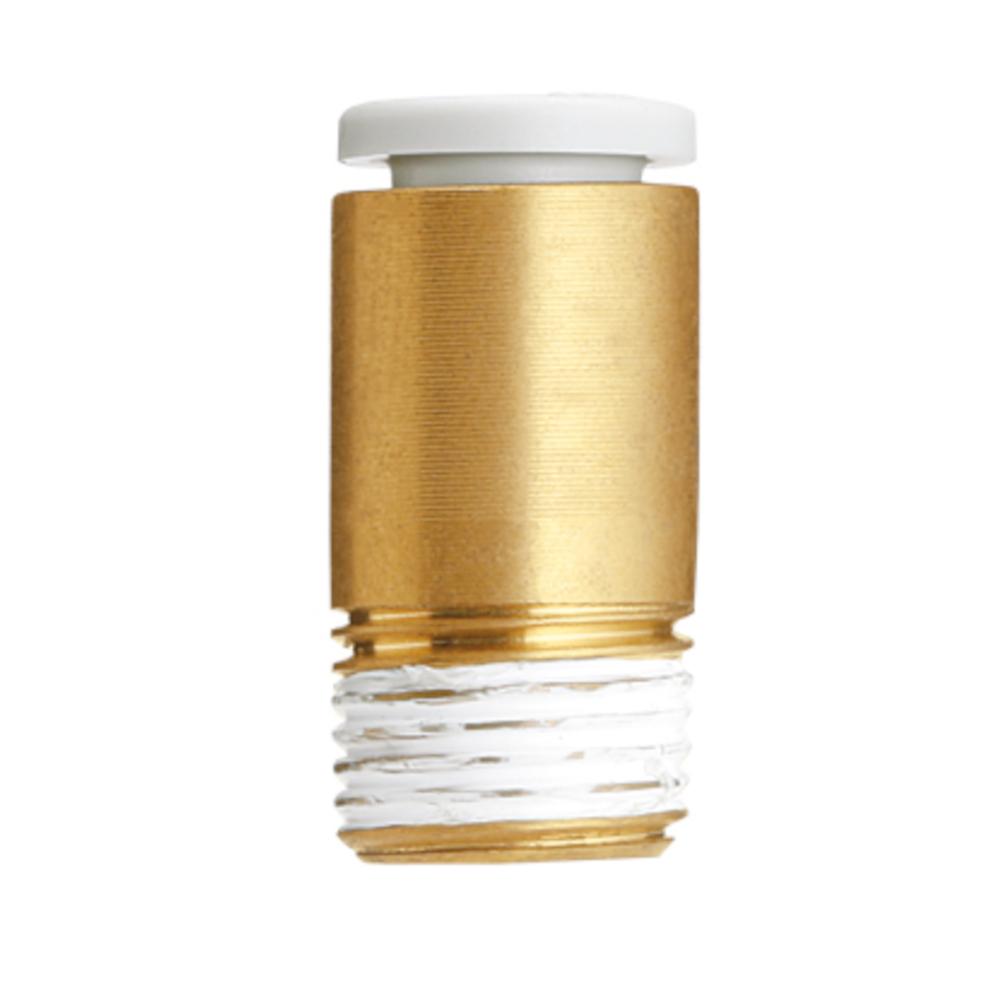

Straight plug-in screw connection with hexagon socket KQ2S - stainless steel or brass/PBT - oval pressure ring - hose Ø 4 or 6 mm - AG R 1/8" or 1/4" - PU 2 or 10 pieces - price per piece
| € 14,41 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 2 (= € 28,81)
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
973001580849
Type
| Material | Stainless steel |
| Hose outer diameter | 6 mm |
| Connection thread | R 1/8" |
| PU | 2 pieces |
Product Description
- The straight plug-in screw connection KQ2S is used to connect pneumatic hoses to a thread in a space-saving and flexible manner, especially in confined installation situations.
- It is used in automation technology, mechanical engineering and in pneumatic control and supply systems where compact and flexible mounting options are required.
- They are particularly advantageous for use in machine housings, control blocks and switch cabinets where there is little space available for screw connections.
- Tool-free plug-in assembly enables quick and easy installation and maintenance.
- The KQ2S straight plug-in screw connection consists of precision-machined metal components made of brass, chemically nickel-plated brass or 303 stainless steel and has a POM pressure ring.
- The connection thread is supplied without factory thread sealing.
- Their compact, straight design enables space-saving connection of pneumatic hoses to a threaded connection.
- The oval pressure ring significantly reduces the force required to insert and remove the hoses and allows quick, tool-free installation.
- The integrated hexagon socket allows easy installation even in very tight installation spaces where conventional external hexagon screw connections cannot be used.
- The precise workmanship guarantees permanently secure and tight connections, even when the hoses are frequently reconnected.
- Material - stainless steel or brass / PBT
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 40 °C
- Operating pressure - -0.1 to 1 MPa
- Connection thread - R 1/8" or R 1/4"
- Suitable hose outer diameter - 4 or 6 mm
- Media - compressed air, water
- Wrench size - 3 or 4 mm
- Length - 19.7 to 20 mm
- Weight - 6.5 to 13.4 g
- Minimum order quantity - 2 or 10 pieces
- Price per piece
Versions: (4)
Narrow down your selection
Material
Hose outer diameter
Connection thread
PU
| Article No. | Material | Hose outer diameter | Connection thread | PU | Price incl. VAT | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
973001580848 | Stainless steel | 4 mm | R 1/8" | 2 pieces |
|
|||||||||
|
|||||||||||||||
|
973002813690 | Brass | 6 mm | R 1/8" | 10 pieces |
|
|||||||||
|
|||||||||||||||
|
|
973001580849 | Stainless steel | 6 mm | R 1/8" | 2 pieces |
|
|||||||||
|
|||||||||||||||
|
973001580850 | Stainless steel | 6 mm | R 1/4" | 2 pieces |
|
|||||||||
|
|||||||||||||||
