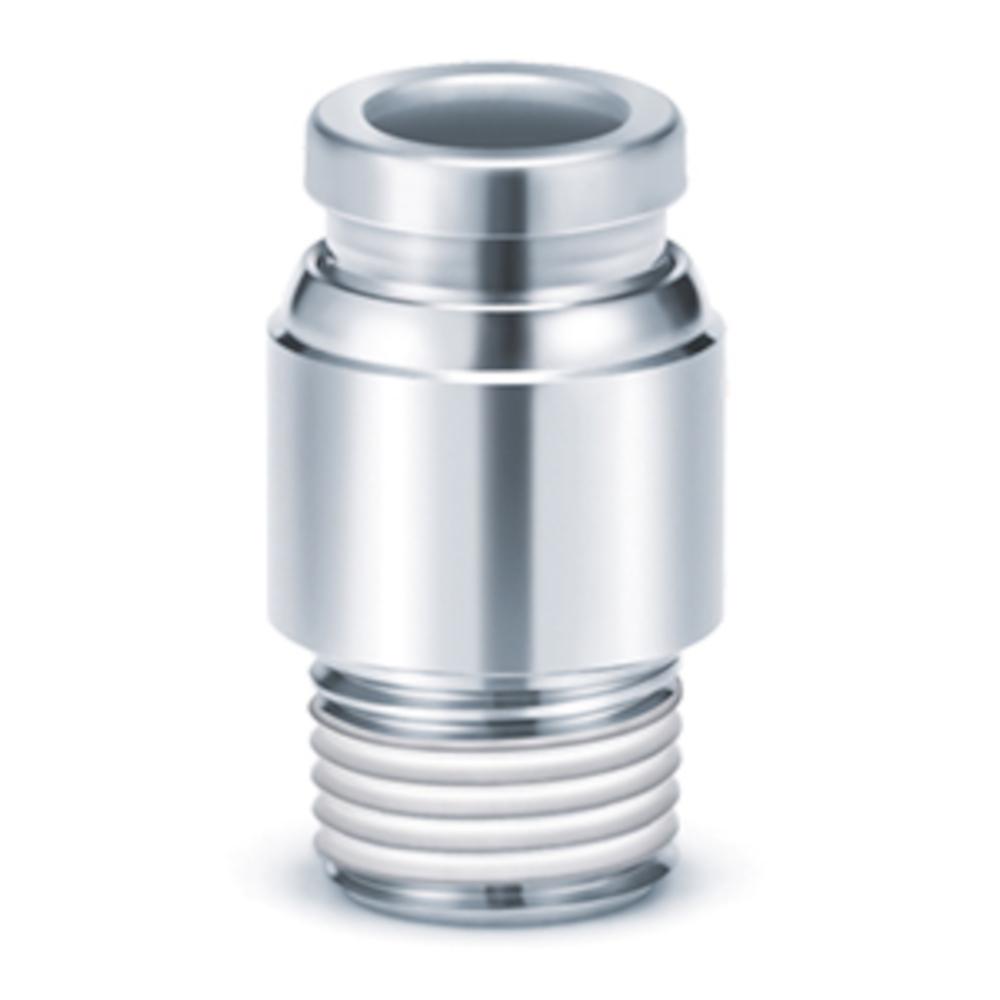

Straight plug-in screw connection with hexagon socket KQB2S - brass/stainless steel - with thread seal - hose outer diameter 4 to 16 mm - male thread 1/8" to 1/2" - price per piece
| € 10,74 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
973000766154
Product Description
- The straight plug-in screw connection KQB2S is used to attach pneumatic hoses to threaded connections in a space-saving and secure manner, especially where installation space is limited and no tools for external hexagon heads can be used.
- It is used in automation technology, mechanical engineering and in pneumatic control and supply systems with a compact design.
- They are particularly advantageous for use in control blocks, switch cabinets and confined machine modules where precise alignment and a tight connection are required.
- The straight plug-in screw connection KQB2S is made of high-quality chemically nickel-plated brass and precision-machined metal components made of 304 and 316 stainless steel.
- The connection thread is coated with a thread sealant at the factory.
- Their straight design with integrated hexagon socket allows direct connection of a pneumatic hose to a thread, even in very confined spaces.
- The fluorine-coated special FKM O-ring ensures a reliable seal on the thread.
- Tool-free assembly enables quick, secure and space-saving installation as well as quick adjustments and maintenance work.
- Thanks to precise manufacturing, the connections remain permanently tight and reliable, even with frequent reconnection.
- Material - nickel-plated brass / stainless steel
- Seal - fluorinated rubber (FKM)
- Ambient temperature - -5 to 150 °C
- Media temperature - -5 to 150 °C
- Operating pressure - -0.1 to 1 MPa
- Connection thread - R 1/8" to R 1/2"
- Suitable hose outer diameter - 4 to 16 mm
- Media - compressed air, water
- Hexagon socket - 3 to 12 mm
- Outer diameter - 10 to 24.6 mm
- Length - 20.4 to 33.2 mm
- Weight - 7.9 to 43.6 g
- Price per piece
Versions: (15)
Narrow down your selection
Hose outer diameter
Connection thread
Item No.: 973000766139
Type
| Hose outer diameter | 4 mm |
| Connection thread | R 1/8" |
Item No.: 973000766142
Type
| Hose outer diameter | 6 mm |
| Connection thread | R 1/8" |
Item No.: 973000766143
Type
| Hose outer diameter | 6 mm |
| Connection thread | R 1/4" |
Item No.: 973000766144
Type
| Hose outer diameter | 8 mm |
| Connection thread | R 1/8" |
Item No.: 973000750422
Type
| Hose outer diameter | 8 mm |
| Connection thread | R 1/4" |
Item No.: 973000766145
Type
| Hose outer diameter | 8 mm |
| Connection thread | R 3/8" |
Item No.: 973000766146
Type
| Hose outer diameter | 10 mm |
| Connection thread | R 1/8" |
Item No.: 973000766147
Type
| Hose outer diameter | 10 mm |
| Connection thread | R 1/4" |
Item No.: 973000766148
Type
| Hose outer diameter | 10 mm |
| Connection thread | R 3/8" |
Item No.: 973000766149
Type
| Hose outer diameter | 10 mm |
| Connection thread | R 1/2" |
Item No.: 973000766150
Type
| Hose outer diameter | 12 mm |
| Connection thread | R 1/4" |
Item No.: 973000766151
Type
| Hose outer diameter | 12 mm |
| Connection thread | R 3/8" |
Item No.: 973000766152
Type
| Hose outer diameter | 12 mm |
| Connection thread | R 1/2" |
Item No.: 973000766153
Type
| Hose outer diameter | 16 mm |
| Connection thread | R 3/8" |
Item No.: 973000766154
Type
| Hose outer diameter | 16 mm |
| Connection thread | R 1/2" |
