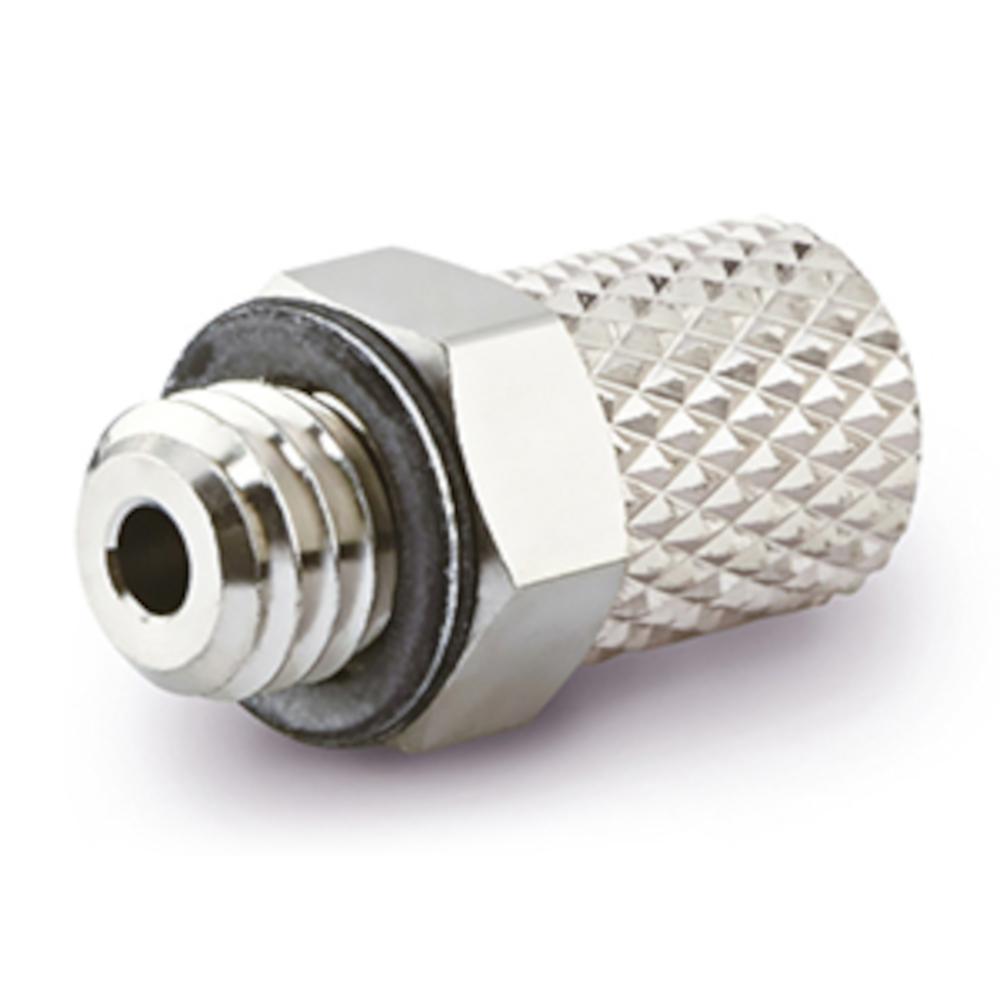

Straight screw connection with union nut M-H - miniature - brass - hose Ø 4/2.5 or 6/4 mm - male thread M5 - pack of 10 - price per piece
| € 1,11 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 11,11)
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
973000003087
Product Description
- The straight screw connection M-H is used in pneumatic systems where particularly secure holding and protection of the hose is required, e.g. in vibrating machines, mobile systems or test benches.
- It is particularly suitable for applications with increased mechanical loads. Ideal for permanently installed compressed air connections with limited installation space.
- The screw connection is also suitable for unfrozen water.
- The connection can be easily dismantled and reused if necessary.
- The straight screw connection with M-H union nut from the M series is a reliable connection solution for polyurethane hoses.
- It consists of a grommet, union nut and seal, which together ensure a secure, pressure-tight connection.
- The union nut mechanically secures the hose, protecting it against vibrations and tensile loads.
- Installation is manual and offers a reusable, service-friendly solution.
- The compact design made of nickel-plated brass allows use in confined industrial applications.
- Material - nickel-plated brass
- Ambient temperature - -5 to 60 °C
- Media temperature - -5 to 40 °C
- Operating pressure min. - 0 MPa
- Max. operating pressure - 1 MPa
- Connection thread - M5 x 0.8
- Hose Ø internal/external - 4/2.5 or 6/4 mm
- Media - compressed air, water
- Wrench size - 7 or 8 mm
- Length - 15.5 or 16.5 mm
- Weight - 2.7 or 3.9 g
- Minimum order quantity - 10 pieces
- Price per piece
Versions: (2)
Item No.: 973000003087
Type
| Hose Ø outside | 4 mm |
| Hose Ø inside | 2.5 mm |
| € 1,11 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 11,11)
Item No.: 973000003093
Type
| Hose Ø outside | 6 mm |
| Hose Ø inside | 4 mm |
| € 1,11 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Delivery time 7-10 working days
Minimum order quantity: 10 (= € 11,11)
