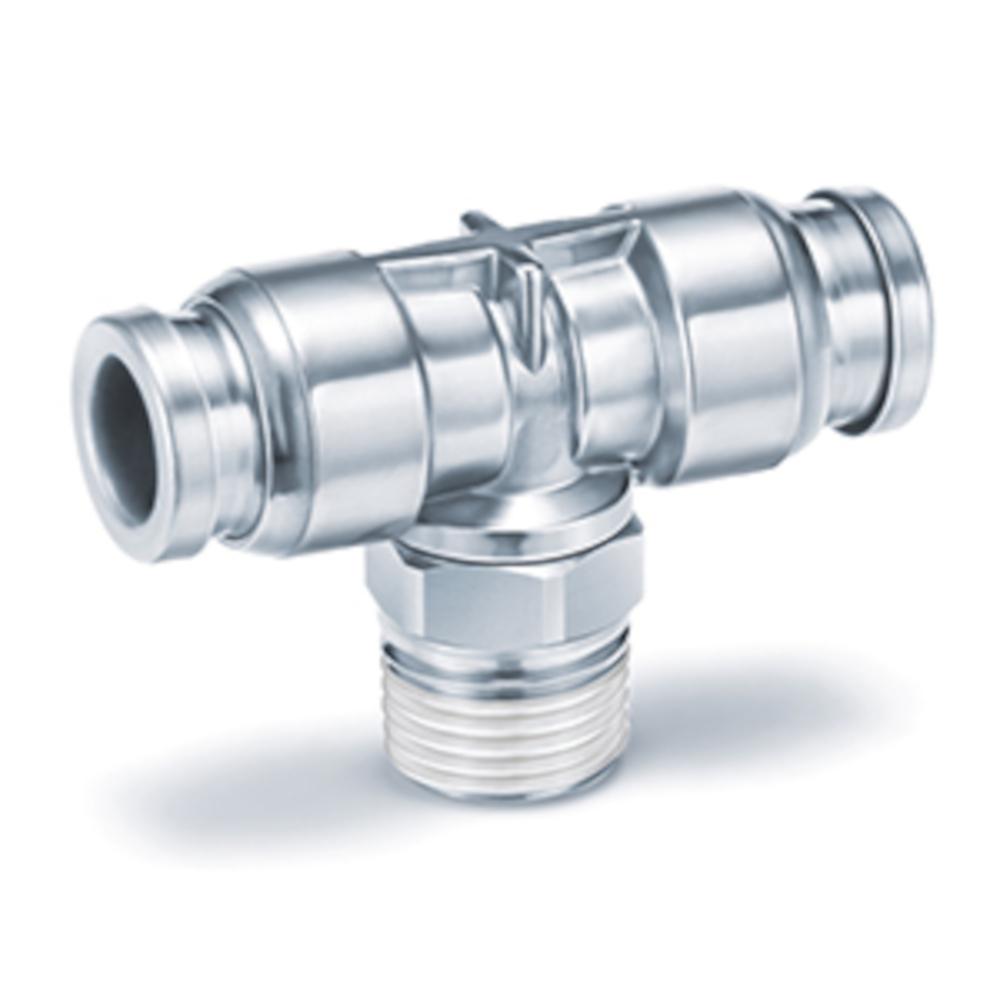

T-plug fitting KQB2T - brass/stainless steel - FDA-compliant - hose outer diameter 3.2 to 6 mm - male thread M5 - price per piece
| From € 14,13 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The KQB2T-F T-shaped plug-in screw connection is used to hygienically branch pneumatic hose lines with a central threaded connection.
- It is used in the food and beverage industry, the pharmaceutical industry and biotechnology, where space-saving and hygienically safe combinations of threaded and plug-in connections are required.
- They are particularly advantageous for use in systems with regular CIP/SIP cleaning, where maximum cleanability, sterility and process reliability are crucial.
- Their compact design allows them to be used even in confined spaces in hygienic production areas.
- The KQB2T-F T-plug fitting is made of high-quality 316 stainless steel and meets the strict hygiene standards of the FDA and EHEDG.
- The fluorine-coated special FKM O-ring ensures a secure, dead space-free seal on the threaded connection.
- Polished, smooth surfaces prevent deposits and facilitate quick and safe cleaning in CIP/SIP processes.
- Precise workmanship ensures permanently hygienic, secure and tight connections, even with frequent reconnection.
- Material - Nickel-plated brass / stainless steel
- Seal - fluorinated rubber (FKM)
- Ambient temperature - -5 to 150 °C
- Media temperature - -5 to 150 °C
- Operating pressure - -0.1 to 1 MPa
- Connection thread - M5
- Suitable hose outer diameter - 3.2 to 6 mm
- Media - Compressed air, water
- Wrench size - 8 mm
- Width - 20.1 to 23.1 mm
- Length - 26.2 to 29.4 mm
- Weight - 8.4 to 12.3 g
- Price per piece
Versions: (3)
Item No.: 973002321633
Type
| Hose outer diameter | 3.2 mm |
Item No.: 973002321567
Type
| Hose outer diameter | 4 mm |
Item No.: 973002321576
Type
| Hose outer diameter | 6 mm |
