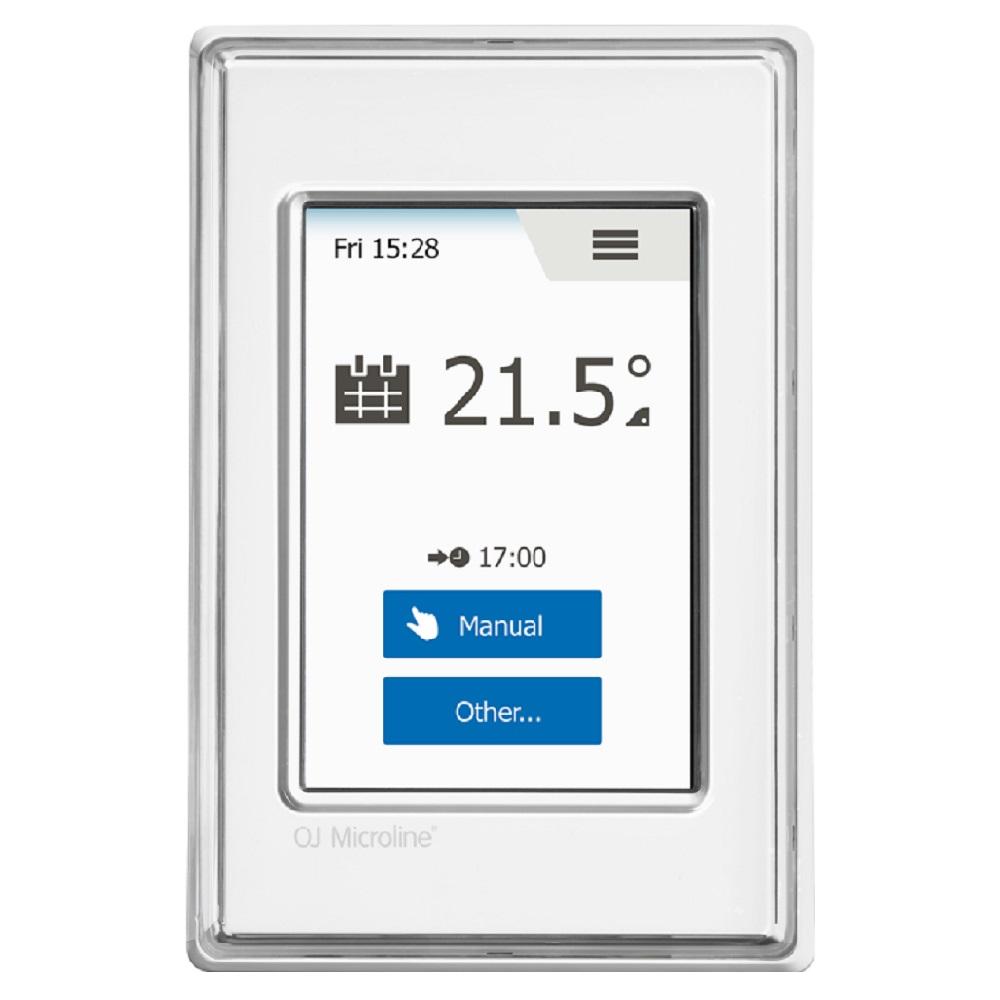

Thermostat OCD6 - with 2 probes - touchscreen - control range from +5 to + 40 ° C
| € 190,17 |
| Price incl. VAT |
Ex stock within 4 days deliverable
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
509761106600
Product Description
- The OCD6 thermostat provides easy setting and monitoring of the electric heating systems and is used for control according to EN50559.
- Incl. Parental Control.
- Has several modes such as boost, comfort, forestry, vacation and eco mode.
- With adaptive learning function that ensures that the comfort temperature is reached at the desired time.
- Suitable for various functions such as room temperature control, floor temperature control and room temperature control, where the floor sensor is used as a limit sensor to protect against damage to wooden floors.
- Operating voltage - 100 - 240 V AC, 50/60 Hz
- Output current - 16 A, max. 3600 W
- Built-in switch - 2-pin, 16 A
- Adjustable temperature range - from + 5 ° C to + 40 ° C
- Clock function - Up to 7 different 4-6 area programs
- ON / OFF difference - 0,4 C
- Ambient temperature - from 0 ° C to + 40 ° C during operation
- Housing protection - IP21
- Dimensions (W x H x D) - 80 x 121 x 20.5 mm (22.4 mm mounting depth)
- Sensor type - NTC (12 KΩ), length 3 m
