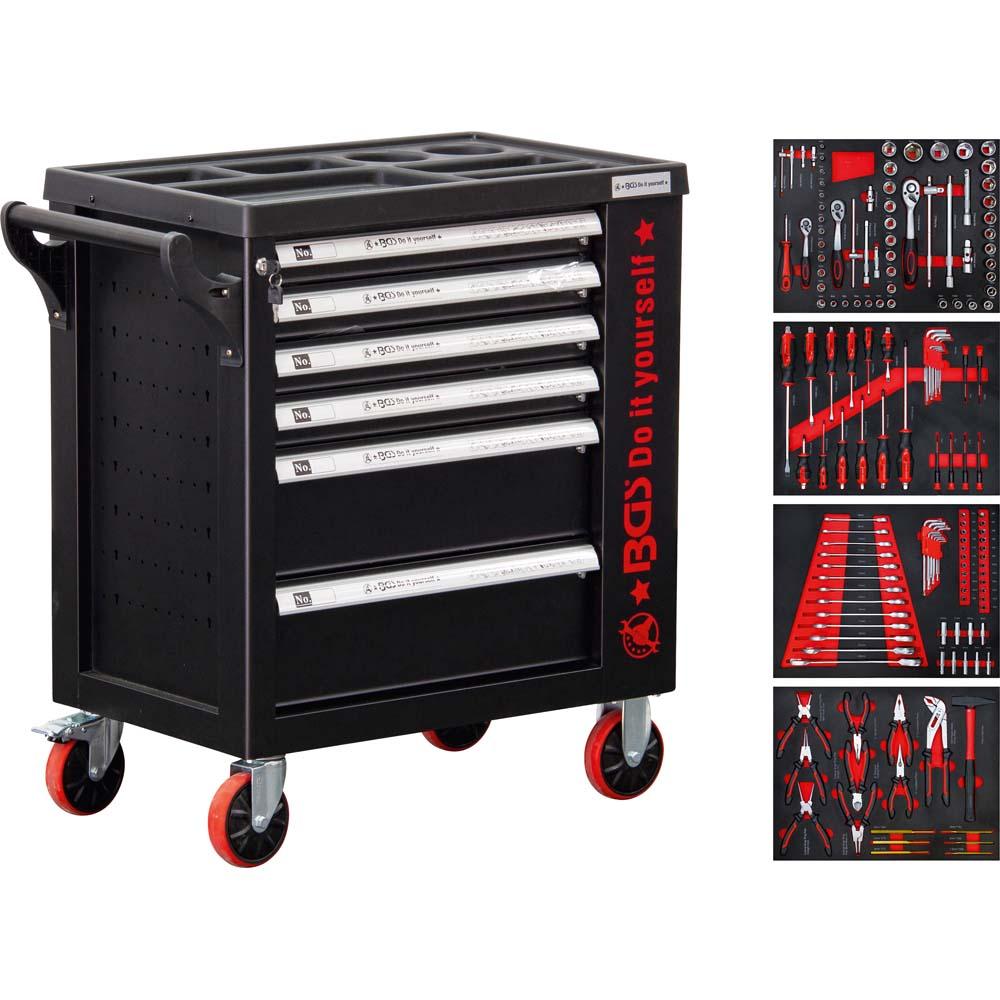

Workshop trolley - 6 drawers - 1 side door - with 158 tools - dimensions (WxHxD) 760 x 895 x 460 mm

Product Description

The workshop trolley in a high-quality workshop design is ideal for everyday use in workshops and trades.

Description

The 6 smooth-running drawers with ball bearings are individually secured by a pull-out stop.
The workshop trolley can be locked with a central lock.
The workshop trolley is easy to manoeuvre thanks to the 4 heavy-duty, ball-bearing mounted 120 mm castors, 2 of which are lockable swivel castors, and the side handle.
In the side cabinet (depth 125 mm), with lockable door, there are 2 storage compartments for e.g. aerosol cans, tools and bottles, as well as a perforated panel in the swivelling door element for mounting hooks for tools.

Technical Data

Dimensions (WxHxD) - 760 x 895 x 460 mm
Number of drawers - 6 pieces
Drawer width - 525 mm
Drawer depth - 400 mm
Drawer height - 50 mm
Load capacity - 1st to 4th drawer up to 20 kg (per drawer)
Load capacity - 5th and 6th drawer up to 30 kg (per drawer)
Drawer extension - 100 %
Gross weight - 81 kg
The scope of delivery includes 4 soft foam inserts with the following tools:
Socket spanner set, drive square drive 6.3 mm (1/4"), 10 mm (3/8"), 12.5 mm (1/2"), 61 pcs.
6.3 mm (1/4") drive
1 reversible ratchet, fine-toothed, output square drive 6.3 mm (1/4")
13 socket spanner sockets, hexagon SW 4 - 4.5 - 5 - 5.5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 and 14 mm.
1 Extensions, output external square drive 6.3 mm (1/4"), 50 mm
1 Extensions, output external square drive 6.3 mm (1/4"), 100 mm
1 Sliding handle, output external square drive 6.3 mm (1/4"), 115 mm
1 universal joint, output square drive 6.3 mm (1/4")
1 turning handle, output external square drive 6.3 mm (1/4"), 150 mm
Drive 10 mm (3/8")
1 reversible ratchet, fine-toothed, output square drive 10 mm (3/8")
15 socket spanner sockets, hexagon SW 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 21 - 22 and 24 mm
1 Extensions, output external square drive 10 mm (3/8"), 75 mm
1 Extensions, output external square drive 10 mm (3/8"), 150 mm
1 Sliding handle, output square drive 10 mm (3/8"), 175 mm
1 universal joint, output square drive 10 mm (3/8")
Drive 12.5 mm (1/2")
1 reversible ratchet, fine-toothed, output square drive 12.5 mm (1/2")
17 socket spanner sockets, hexagon SW 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 21 - 22 - 23 - 24 - 27 - 30 and 32 mm
1 Extensions, output external square drive 12.5 mm (1/2"), 125 mm
1 Extensions, output external square drive 12.5 mm (1/2"), 250 mm
1 Sliding handle, output square drive 12.5 mm (1/2"), 250 mm
1 universal joint, output square drive 12.5 mm (1/2")
Screwdriver and offset spanner, 27 pcs.
continuous blade
with ergonomic soft grip
5 Screwdrivers, slotted, with external hexagon 6.0 x 38 mm - 5.0 x 75 mm - 4.0 x 100 mm - 6.0 x 100 mm - 8.0 x 200 mm
1 slotted screwdriver, 3 x 75 mm
5 screwdrivers Phillips, with external hexagon drive PH2 x 38 mm - PH1 x 75 mm - PH1 x 100 mm - PH2 x 100 mm - PH3 x 200 mm
1 Phillips screwdriver, PH0 x 75 mm
3 precision screwdrivers, slotted, 2 x 115 mm - 2.5 x 115 mm - 3 x 115 mm, blade length 40 mm
3 precision Phillips screwdrivers, PH2 x 115 mm - PH2.5 x 115 mm - PH3 x 115 mm, blade length 40 mm
9 Hexagon spanner, hexagon socket / hexagon socket with ball head 1.5 - 2 - 2.5 - 3 - 4 - 5 - 6 - 8 - 10 mm
Bit/angle spanner/ratchet ring spanner, 54 pcs.
13 Ratchet ring spanner SW 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 19 - 21 - 22 mm
9 socket spanner sockets, hexagonal, drive square drive 6.3 mm (1/4"), deep SW 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 mm
7 bit inserts, drive square drive 6.3 mm (1/4"), T-profile (for Torx) T8 - T10 - T15 - T20 - T25 - T30 - T40
6 bit inserts, drive square drive 6.3 mm (1/4"), hexagon socket 3 - 4 - 5 - 6 - 7 - 8 mm
3 bit inserts, square drive 6.3 mm (1/4"), Phillips PH PH1 - PH2 - PH3
3 bit inserts, drive square drive 6.3 mm (1/4"), cross recess PZ PZ1 - PZ2 - PZ3
4 bit inserts, drive square drive 6.3 mm (1/4"), slot 4 - 5.5 - 6.5 - 7 mm
9 L-key, T-profile (for Torx) T10 - T15 - T20 - T25 - T27 - T30 - T40 - T45 - T50
Hammer, pliers, pin punch, 16 pcs.
1 Snap ring pliers for external retaining rings, angled, 175 mm, opening dimension max. 29 mm
1 Snap ring pliers for external retaining rings, straight, 175 mm, opening dimension max. 35 mm
1 Snap ring pliers for internal circlips, angled, 175 mm, opening dimension max. 32 mm
1 Snap ring pliers for internal circlips, straight, 175 mm, opening dimension max. 36 mm
1 Telephone pliers, curved, 150 mm
1 Telephone pliers, straight, 150 mm
1 Combination pliers, 150 mm
1 Side cutter, 150 mm
1 Water pump pliers, 250 mm
1 locksmith's hammer, fibreglass handle, 120 g
6 pin punch, lacquered, 1.5 x 100 mm - 2 x 100 mm - 3 x 110 mm - 4 x 125 mm - 5 x 125 mm - 6 x 140 mm
