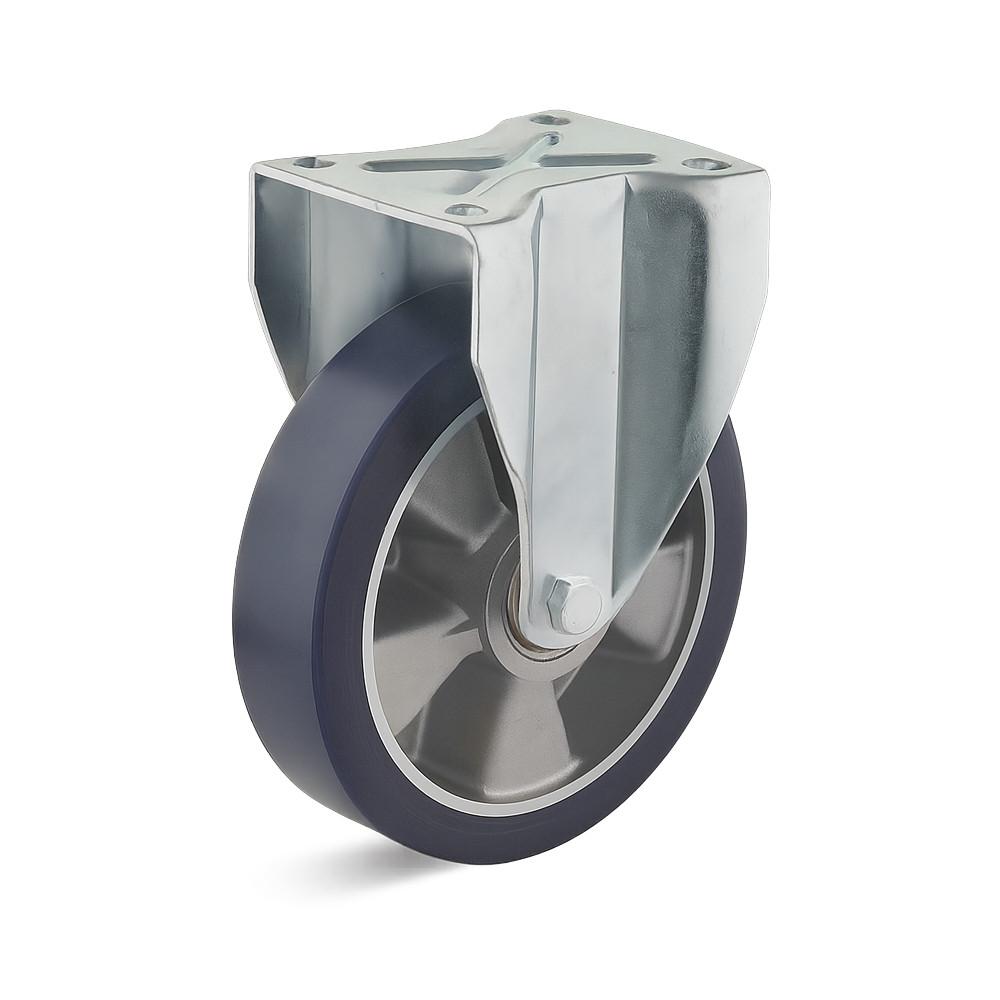

Heavy-duty fixed castor - elastic PU wheel - wheel diameter 100 to 200 mm - overall height 135 to 245 mm - load capacity 200 to 700 kg
(Exemplary presentation)
| From € 19,86 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The heavy-duty fixed castor is ideal for use on tiles, parquet, smooth industrial floors and uneven, hard floors.
- The ball-bearing wheel body is made of die-cast aluminium, and the moulded cylindrical tread is made of blue elastic polyurethane with approx. 78° Shore A.
- The heavy housing is made of galvanised sheet steel.
- The robust, shock-resistant roller offers low rolling resistance, quiet, trackless running and reliably dampens vibrations.
- Material wheel body - die-cast aluminium
- Material tread - elastic polyurethane, approx. 78° Shore A
- Material housing - galvanised sheet steel
- Bearings - Ball bearings
- Wheel diameter - 100 to 200 mm
- Wheel width - 30 to 50 mm
- Height - 135 to 245 mm
- Plate dimensions - 100 x 85 to 136 x 118 mm
- Hole size - 80 x 60 to 105 x 80 mm
- Screw hole diameter - 8.5 to 12.5 mm
- Load capacity - 200 to 700 kg
Versions: (4)
Narrow down your selection
Wheel diameter mm
gear width mm
height mm
Panel dimensions mm
Hole size mm
Screw-Ø mm
Capacity kg
| Article No. | Wheel diameter mm | gear width mm | height mm | Panel dimensions mm | Hole size mm | Screw-Ø mm | Capacity kg | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
952931532000 | 100 mm | 30 mm | 135 mm | 100 x 85 mm | 80 x 60 mm | 8.5 mm | 200 kg |
|
||||
|
|||||||||||||
|
|
952931532100 | 125 mm | 40 mm | 170 mm | 136 x 118 mm | 105 x 80 mm | 12.5 mm | 300 kg |
|
||||
|
|||||||||||||
|
|
952931532200 | 160 mm | 50 mm | 205 mm | 136 x 118 mm | 105 x 80 mm | 12.5 mm | 500 kg |
|
||||
|
|||||||||||||
|
|
952931532300 | 200 mm | 50 mm | 245 mm | 136 x 118 mm | 105 x 80 mm | 12.5 mm | 700 kg |
|
||||
|
|||||||||||||
