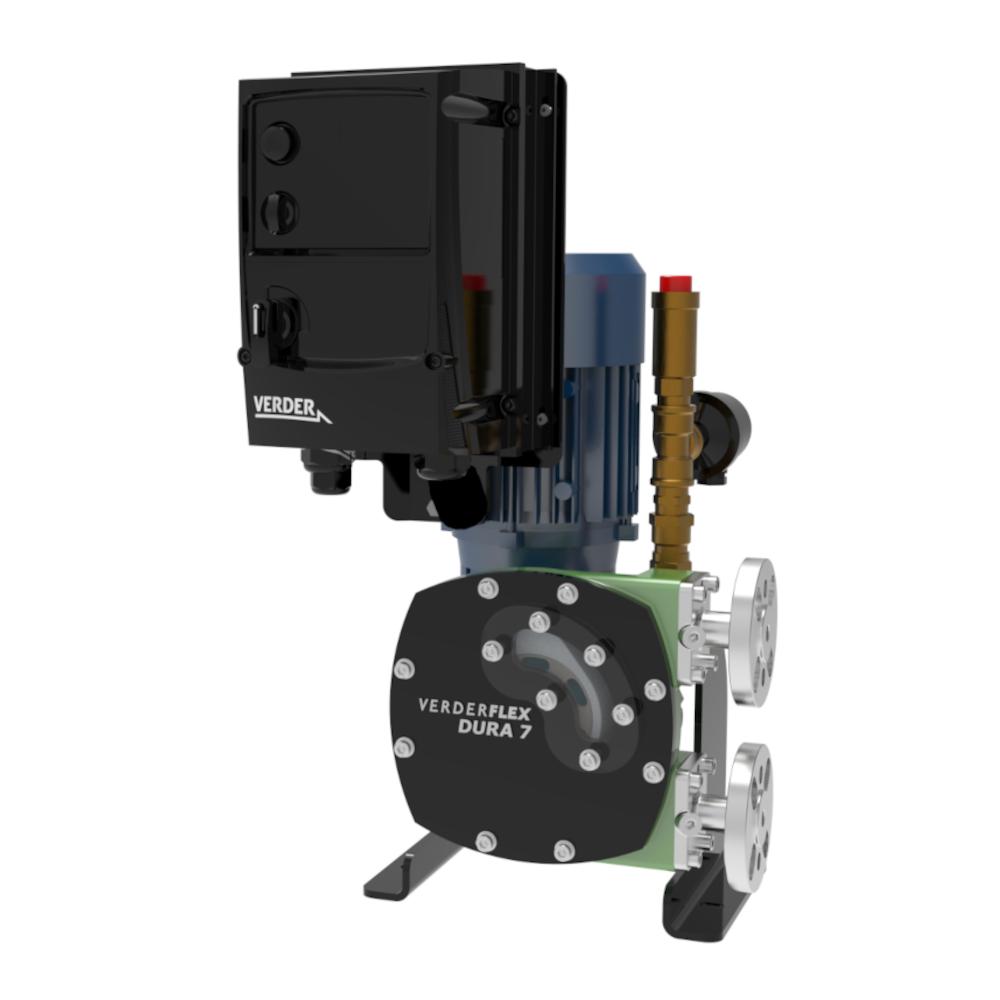

Peristaltic pump Verderflex iDura7 - 5 bar - 0.37 kW - 3.4 to 39 l/h - NR/NBR or CSM hose - 230 or 400V
| From € 4.400,00 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The Verderflex iDura7 is ideal for industrial applications in which abrasive, corrosive or shear-sensitive liquids need to be conveyed or metered, such as in water treatment, the chemical industry or food production.
- The iDura7 is suitable for a wide range of critical processes thanks to the media-contacting delivery exclusively via the pump hose.
- It can be equipped with various high-quality hose materials that are optimally matched to the respective medium: Natural rubber for abrasive slurries, nitrile rubber for oily and greasy media, CSM (Hypalon®) for highly corrosive substances.
- In conjunction with selectable flange inserts made of stainless steel, PP or PVDF, the iDura7 can be flexibly adapted to a wide range of operating conditions and guarantees maximum process reliability, chemical resistance and minimal maintenance in a compact design.
- The Verderflex iDura7 is a powerful yet compact industrial peristaltic pump for precise dosing with minimal space requirements.
- It combines the proven technology of the Dura7 with standard additional equipment such as a frequency converter and hose breakage monitoring to ensure safe and convenient operation.
- The integrated frequency converter enables infinitely variable speed control, allowing the iDura7's conveying capacity to be flexibly and precisely adapted to the respective process.
- The short-coupled design significantly reduces the footprint and at the same time increases the service life of the hose and gearbox.
- The specially developed pump hose can be changed without tools and without clamps. Flange inserts made of stainless steel, PP or chemical-resistant PVDF allow flexible use with different media.
- The iDura7 is available with a 1-phase or 3-phase motor - ideal for universal use or industrial requirements.
- With a delivery rate of up to 39 l/h and an operating pressure of 5 bar, it is the reliable choice for precise dosing under demanding conditions.
- Hose materials - NR, NBR, CSM
- Available flange inserts - stainless steel, polypropylene (PP), PVDF
- Maximum flow rate - 3.4 to 39 l/h
- Maximum delivery pressure - 5 bar
- Maximum temperature - 80 °C
- Maximum solids size - 1.75 mm
- Maximum speed - 70 rpm
- Maximum suction height - 9.5 m wc
- Motor power - 0.37 kW
- Inverter power - 0.75 kW
- Voltage - 1 phase (230 V), 3 phases (400 V)
- Inner diameter of hose - 7 mm
- Footprint - 462 cm²
- Weight - 25.5 kg
Versions: (18)
Narrow down your selection
Hose
Flange insert
Tension
| Article No. | Hose | Flange insert | Tension | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|
|
252014607074 | NR | Stainless steel | 400 V |
|
||||
|
|||||||||
|
252014607075 | NBR (Buna) | Stainless steel | 400 V |
|
||||
|
|||||||||
|
252014607076 | CSM (Hypalon) | Stainless steel | 400 V |
|
||||
|
|||||||||
|
252014607077 | NR | PP | 400 V |
|
||||
|
|||||||||
|
252014607078 | NBR (Buna) | PP | 400 V |
|
||||
|
|||||||||
|
252014607079 | CSM (Hypalon) | PP | 400 V |
|
||||
|
|||||||||
|
252014607080 | NR | PVDF | 400 V |
|
||||
|
|||||||||
|
252014607081 | NBR (Buna) | PVDF | 400 V |
|
||||
|
|||||||||
|
252014607082 | CSM (Hypalon) | PVDF | 400 V |
|
||||
|
|||||||||
|
252014607083 | NR | Stainless steel | 230 V |
|
||||
|
|||||||||
|
252014607084 | NBR (Buna) | Stainless steel | 230 V |
|
||||
|
|||||||||
|
252014607085 | CSM (Hypalon) | Stainless steel | 230 V |
|
||||
|
|||||||||
|
252014607086 | NR | PP | 230 V |
|
||||
|
|||||||||
|
252014607087 | NBR (Buna) | PP | 230 V |
|
||||
|
|||||||||
|
252014607088 | CSM (Hypalon) | PP | 230 V |
|
||||
|
|||||||||
|
252014607089 | NR | PVDF | 230 V |
|
||||
|
|||||||||
|
252014607090 | NBR (Buna) | PVDF | 230 V |
|
||||
|
|||||||||
|
252014607091 | CSM (Hypalon) | PVDF | 230 V |
|
||||
|
|||||||||
