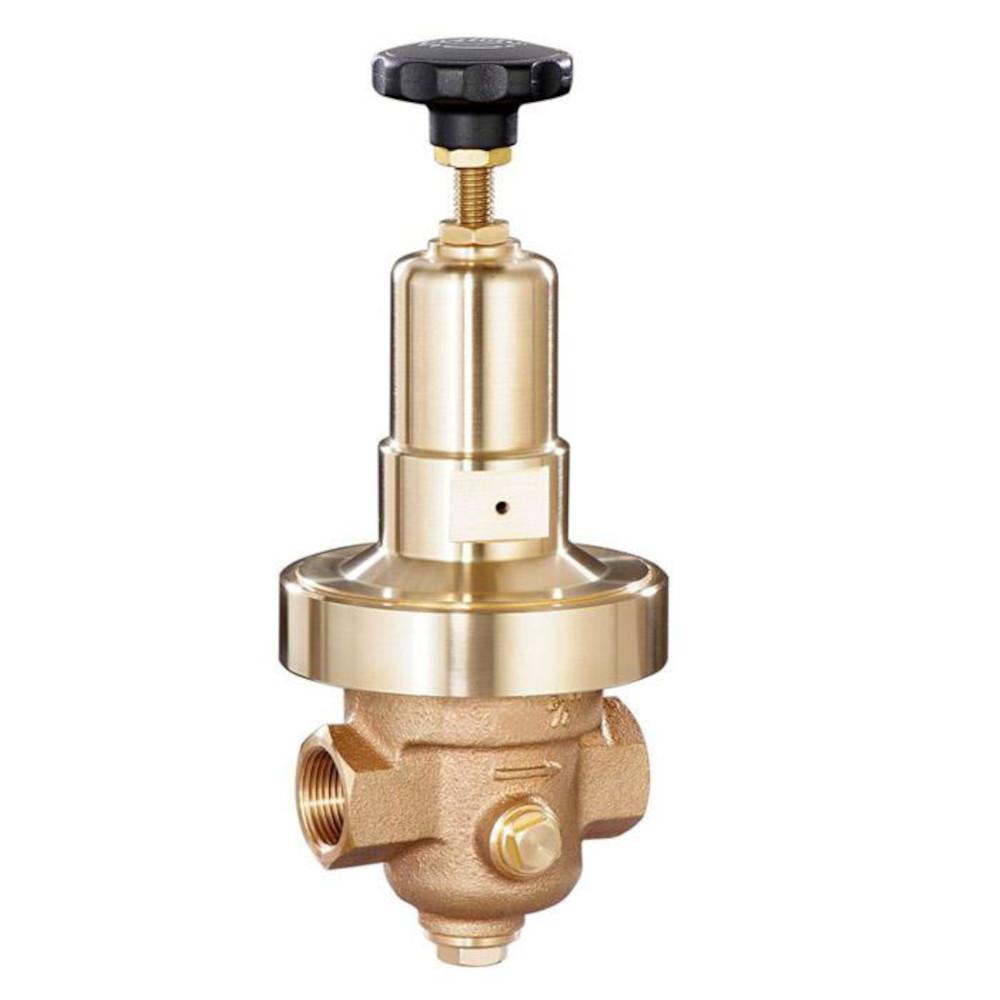

Pressure reducer DRV 250 - for compressed air and gases - red brass - G 1/4" to G 2" - max. inlet pressure up to 25 bar - outlet pressure range 0.2 to 2 bar
| From € 132,71 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Product Description
- The DRV 250 is an unrelieved, diaphragm-controlled pressure reducing valve for precise regulation of low back pressures(0.2–2 bar) at inlet pressures of up to 25 bar – ideal for compressed air, nitrogen and neutral fluids at low flow rates.
- The DRV 250 is an unrelieved, diaphragm-controlled single-seat pressure reducing valve for the continuous regulation of low downstream pressures from 0.2 to 2 bar at a maximum upstream pressure of 25 bar.
- It has a high reduction ratio of 20:1, internal thread according to ISO 228, and pressure gauge connections G 1/4" on both sides for the back pressure.
- The valve is temperature-resistant up to 100 °C, has a robust red brass housing and is particularly suitable for use in compressed air and nitrogen systems with low flow rates.
- unrelieved poppet valve
- membrane-controlled
- continuously adjustable back pressure
- maximum pre-pressure - up to 25 bar
- Back pressure range - 0.2 to 2 bar
- maximum reduction ratio - 20:1
- Internal thread according to ISO 228, optionally also available with NPT thread
- pressure gauge connection G 1/4" on both sides (for back pressure)
- Can be installed in any position, preferably vertically
- required minimum pressure differential (front to rear pressure) - 1 bar
- permissible media temperatures - -15 °C to +100 °C
- Threaded connection according to ISO 228, from G 1/4" to G 2"
- Moulding material - red brass CC499K
- Spring cover - up to DN 25 made of brass, from DN 32 made of grey cast iron
- Diaphragm - up to DN 25 made of CR, from DN 32 made of NBR
- Sealing material - NBR
- media-friendly brass interior parts
- Price per item
Versions: (8)
Narrow down your selection
Thread
Nominal diameter
Installation instructions
| Article No. | Thread | Nominal diameter | Installation instructions | Price incl. VAT | |||||
|---|---|---|---|---|---|---|---|---|---|
|
202800250000 | G 1/4" | DN 8 | 70 mm |
|
||||
|
|||||||||
|
202800250100 | G 3/8" | DN 10 | 70 mm |
|
||||
|
|||||||||
|
202800250200 | G 1/2" | DN 15 | 85 mm |
|
||||
|
|||||||||
|
202800250300 | G 3/4" | DN 20 | 85 mm |
|
||||
|
|||||||||
|
202800250400 | G 1" | DN 25 | 95 mm |
|
||||
|
|||||||||
|
202800250500 | G 1 1/4" | DN 32 | 104 mm |
|
||||
|
|||||||||
|
202800250600 | G 1 1/2" | DN 40 | 108 mm |
|
||||
|
|||||||||
|
202800250700 | G 2” | DN 50 | 147 mm |
|
||||
|
|||||||||
