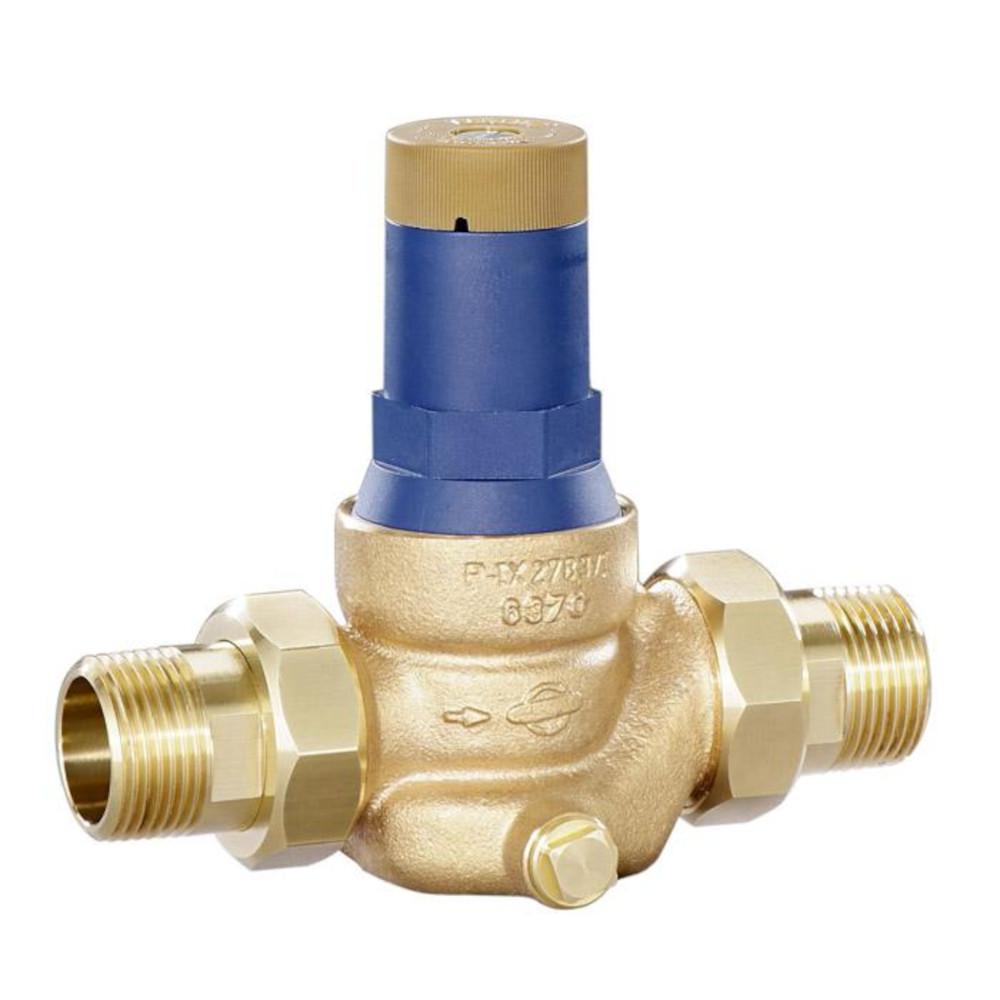

Pressure reducer for (drinking) water and liquids - red brass - with outer threa
| From € 90,00 |
| Price incl. VAT |
| plus € 29,00 shipping costs |
Do you have any questions?
We would like to assist you!
We would like to assist you!
Item No.:
453300300102
Product Description
- Pressure reducer for (drinking) water and neutral non-adhesive liquid.
- Also suitable for air and inert non-combustible gases
- Pressure reducer with dirt trap
- Internal parts interchangeable
- Compliant with the Pressure Equipment Directive 97/23/EC
- Housing - red brass
- Gaskets / diaphragm - NBR (partially EPDM / Viton)
- Maximum fluid and ambient temperature - 75 ° C
- Maximum inlet pressure - 16 and 25 bar
- Bilateral manometer connection - 1/4"
- Minimum pressure drop (inlet/holding pressure) - 1 bar
Versions: (4)
Narrow down your selection
Thread
max. inlet pressure
Outlet pressure
Installation length
Type
Special feat
Item No.: 453300004302
Type
| Thread | R 1/2" |
| max. inlet pressure | 16 bar |
| Outlet pressure | 1.5 - 6 bar |
| Installation length | 137 mm |
| Type | relieved diaphragm valve |
| Special feat | DVGW |
Item No.: 453300004303
Type
| Thread | R 3/4" |
| max. inlet pressure | 16 bar |
| Outlet pressure | 1.5 - 6 bar |
| Installation length | 145 mm |
| Type | relieved diaphragm valve |
| Special feat | DVGW |
Item No.: 453300004304
Type
| Thread | R 1" |
| max. inlet pressure | 16 bar |
| Outlet pressure | 1.5 - 6 bar |
| Installation length | 160 mm |
| Type | relieved diaphragm valve |
| Special feat | DVGW |
Item No.: 453300004305
Type
| Thread | R 1 1/4" |
| max. inlet pressure | 16 bar |
| Outlet pressure | 1.5 - 6 bar |
| Installation length | 178 mm |
| Type | relieved diaphragm valve |
| Special feat | DVGW |
Documentation
Ratings
No evaluation has been given
