The spiral hose is suitable for flexible and space-saving compressed air supply to pneumatic tools and workstations in workshop and industrial applications.
Description

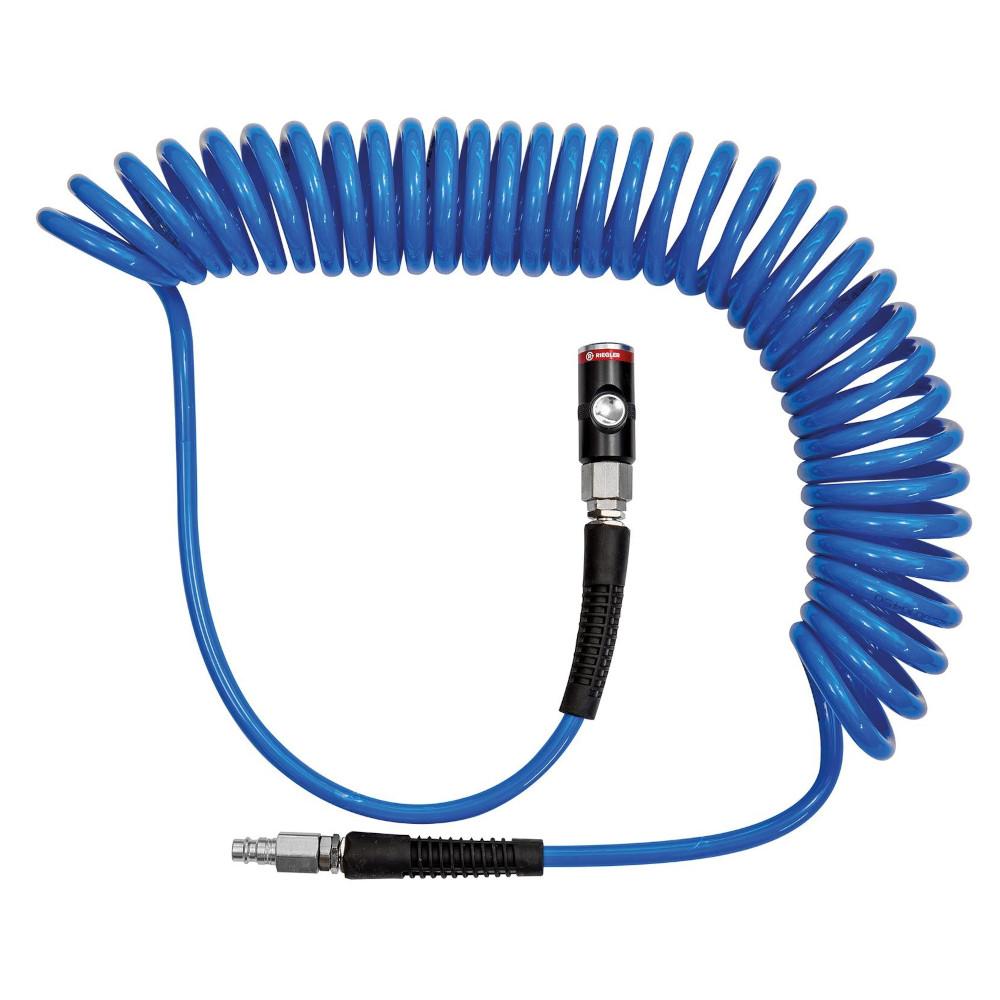

The spiral hose coupling set is a highly flexible compressed air hose made of polyurethane (PU) with a pre-assembled push-button safety coupling NW 7.2 for quick and secure connection to compressed air systems.
Depending on the model, the hose is available in dimensions of 8 × 5 mm, 10 × 6.5 mm or 12 × 8 mm and lengths of 3 m, 6 m, 7.5 m or 10 m.
Depending on the hose diameter, the maximum operating pressure is 10 bar to 12 bar at 23 °C. The PU hose impresses with its high flexibility, good abrasion resistance and low tendency to form loops.
The spiral hose coupling set is designed for use in supplying compressed air to pneumatic tools and workstations.
Technical Data
with push-button safety coupling NW 7.2
Material - Polyester-polyurethane
Working length – 3 to 10 m
Maximum operating pressure at 23 °C – 10 to 12 bar
